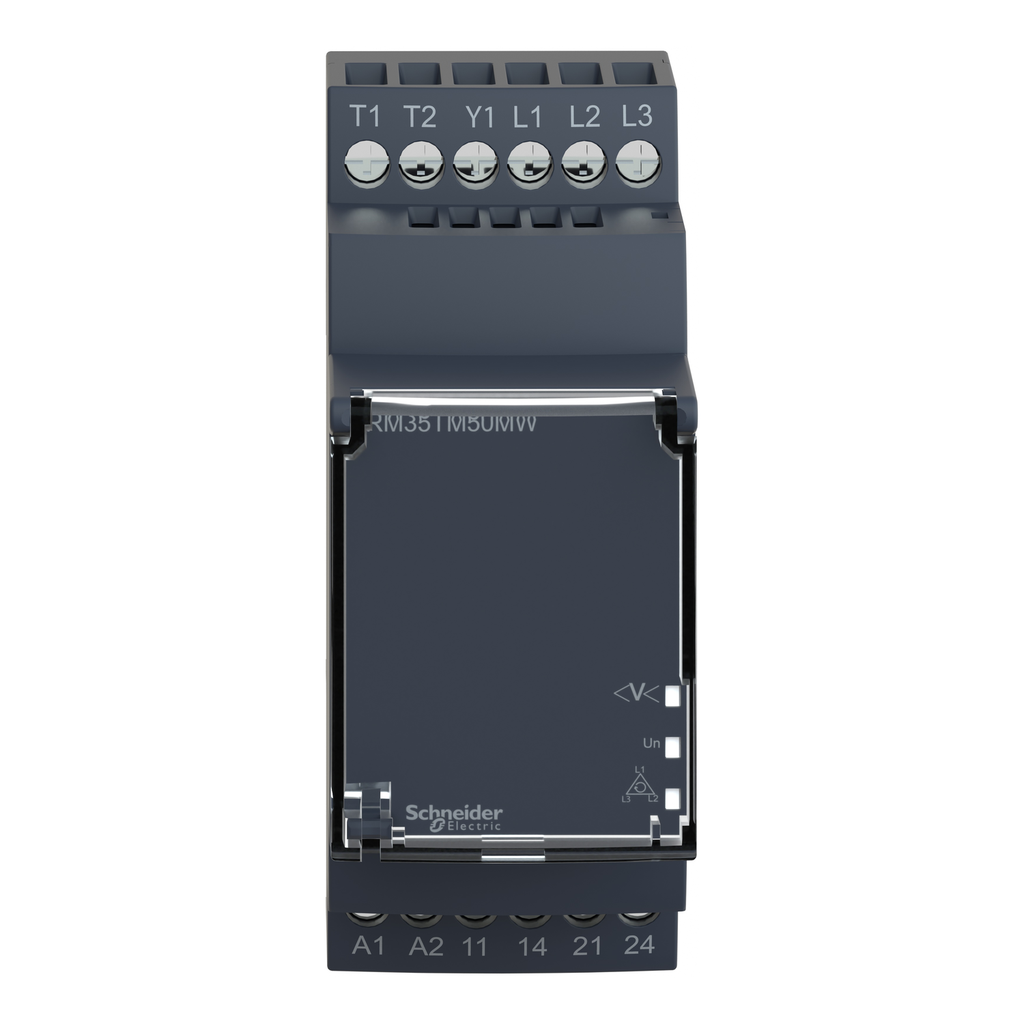

This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Environment
• Product Certifications : GL || UL || GOST || C-tick || CSA
• Standards : IEC 60255-6 || IEC 60034-11-2
• Non-Dissipating Shock Wave : 4 kV
• Dielectric Test Voltage : 2 kV AC 50 Hz, 1 min
• Electromagnetic Compatibility : emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
• Immunity To Microbreaks : 20 ms 20.4 V
• Shock Resistance : 15 gn 11 ms IEC 60255-21-1
• Ambient Air Temperature For Operation : -20-50 °C
• Vibration Resistance : 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
• Ip Degree Of Protection : IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Pollution Degree : 3 IEC 60664-1
• Directives : 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
• Ambient Air Temperature For Storage : -40-70 °C
• Relative Humidity : 95-95 % 55-55 °C IEC 60068-2-30
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1504008EN
• Sustainable Offer Status : Green Premium product
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI1504008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Voltage Range : 176...528 V
• Minimum Switching Current : 10 mA 5 V DC
• [Uc] Control Circuit Voltage : <= 3.6 V temperature control circuit T1-T2 terminals open)
• Maximum Switching Current : 5 A AC || 5 A DC
• Insulation Resistance : > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
• [Us] Rated Supply Voltage : AC/DC non self-powered
• Operating Rate : <= 360 operations/hour full load
• Power Consumption In Va : 0-4 VA 24...240 V AC
• Output Contacts : 2 NO
• Marking : CE
• Response Time : > 50 ms (input Y1 (contact Y1-T1) and push-button)
• Operating Position : any position without derating
• Resistance Across Terminals : 602 mOhm
• Short-Circuit Current : 0.007 A temperature sensing circuit T1-T2 terminals short circuited)
• Utilisation Category : AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
• Net Weight : 0.13 kg
• Maximum Switching Voltage : 250 V AC || 250 V DC
• Measurement Voltage Limits : 176-528 V AC
• Control Type : without test button
• Reset Time : 10000 ms output
• Connections - Terminals : screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• Reset Threshold : 1650 Ohm +/- 10 % temperature control circuit
• [Ui] Rated Insulation Voltage : 400 V IEC 60664-1
• Maximum Resistance : 1500 Ohm temperature sensor 20 °C
• Overvoltage Category : III IEC 60664-1
• Tripping Threshold : 3100 Ohm +/- 10 % temperature control circuit
• Supply Voltage Limits : 20.4-264 V AC || 20.4-264 V DC
• Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
• Nominal Output Current : 5 A
• Local Signalling : for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow)
• Mechanical Durability : 30000000 cycles
• Housing Material : self-extinguishing plastic
• Control Circuit Frequency : 50...60 Hz +/- 10 %
• Width : 35 mm
• Tightening Torque : 0.6-1 N.m IEC 60947-1
• Maximum Power Consumption In W : 0.5 W DC
• Electrical Durability : 10000 cycles
• Run-Up Delay At Power-Up : 500 ms
• Supply Frequency : 50/60 Hz +/- 10 %
• Specifications
• Range Of Product : Harmony Control Relays
• Measurement Range : 208...480 V voltage AC || 0...20 Ohm short-circuit detection
• Switching Capacity In Va : 1250 VA
• Product Or Component Type : motor temperature control relay
• Relay Name : RM35TM
• Contacts Type And Composition : 2 NO
• Relay Type : motor temperature control relay
• Product Specific Application : for 3-phase supply
• Time Delay Type : without
• Relay Monitored Parameters : phase sequence || motor temperature via PTC probe || phase failure detection
• [Uc] Control Circuit Voltage : 24...240 V
