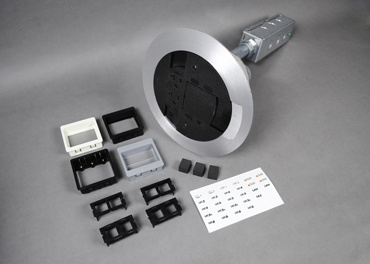

AV3 Flush A/V Assembled Poke-Thru Assembly, Black

AV3 Flush A/V Assembled Poke-Thru Assembly, Black

WRMAV3ATCBK AV3ATCBK 786564015598
316.14 / EACH
  • Certifications: NAFTA, ROHS
  • Country of Origin: Mexico
  • Depth: 17.0 in
  • Height: 8.25 in
  • Number of Outlets: 2
  • Type: Poke-Thru
  • Volume: 1157.06 cu in
  • Weight: 4.96 lb
  • Width: 8.25 in
A/V device includes one prewired 20A duplex receptacle which can be wired as a standard receptacle or isolated ground. Finish flange available in gray (GY), black (BK), ivory (VY), brushed aluminum (AL) and brass finish (BS). Aluminum and brass flanges standard with black cover. Aluminum flange also available with an aluminum colored nonmetallic cover (AA). Brass flange also available with brass colored nonmetallic cover (AB). Includes one adpater to accept Legrand AVIP or Extron Electronics MAAP mini architectural adapter plates, Wiremold Open System adapters, and Ortronics TracJack and Series II mounting adapters. Modular Jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. AV3 Series Poke-Thru Devices require a 4inch (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
  • Product Description
  • Features
  • Specifications
A/V device includes one prewired 20A duplex receptacle which can be wired as a standard receptacle or isolated ground. Finish flange available in gray (GY), black (BK), ivory (VY), brushed aluminum (AL) and brass finish (BS). Aluminum and brass flanges standard with black cover. Aluminum flange also available with an aluminum colored nonmetallic cover (AA). Brass flange also available with brass colored nonmetallic cover (AB). Includes one adpater to accept Legrand AVIP or Extron Electronics MAAP mini architectural adapter plates, Wiremold Open System adapters, and Ortronics TracJack and Series II mounting adapters. Modular Jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. AV3 Series Poke-Thru Devices require a 4inch (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
  • Certifications
    • RoHS Compliant
    • NAFTA Compliant
  • Certifications
    • cULus Listed : E2961
  • Number of Knockouts : 2
  • Product Height : 8.25 in
  • Certifications : CULUS,NAFTA,ROHS
  • Color : Black
  • Special Features : TopGuard Protection, Dual Service, Audio/Visual compatable, slide door activation
  • Number of Outlets : 2.0
  • Country Of Origin : MX
  • Product Depth : 17.0 in
  • Cubic Capacity : 24.5 cu in
  • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21, 300.22(C) & 314 of NEC.
  • Application Sector : Commercial
  • Core Hole Size : 4.0 in
  • Product Line : Wiremold
  • Product Volume : 1157.06 cu in
  • Type : Poke-Thru
  • Product Width : 8.25 in
  • Product Weight : 4.96 lb
