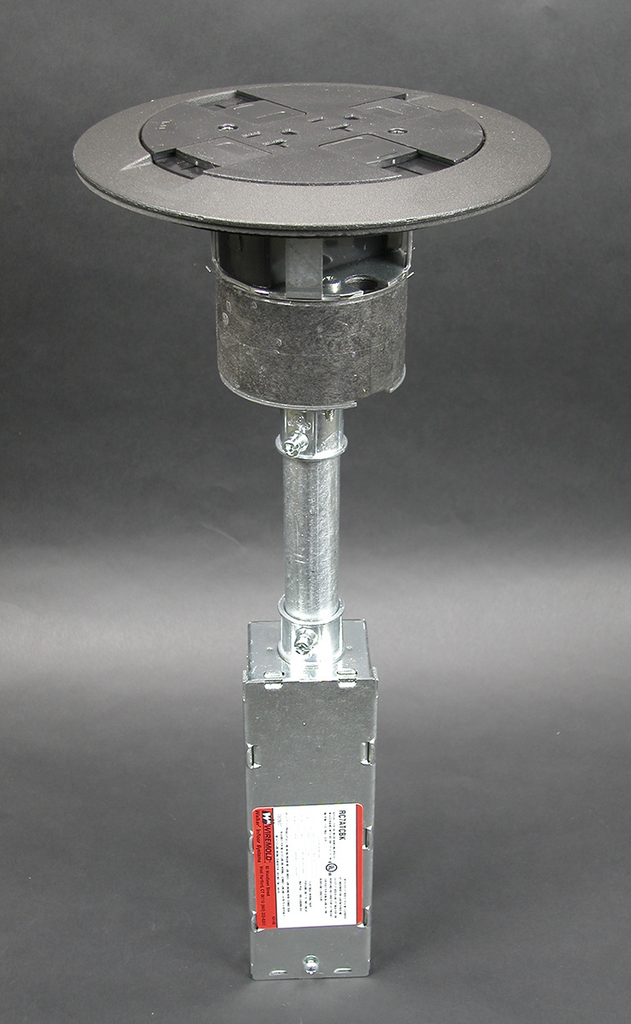

RC7 Multi-Service Poke-Thru Assembly, Black

RC7 Multi-Service Poke-Thru Assembly, Black

WRMRC7ATCBK RC7ATCBK 786564067412
223.11 / EACH
  • Certifications: NAFTA, ROHS
  • Country of Origin: Mexico
  • Depth: 16.0 in
  • Height: 7 in
  • Number of Outlets: 2.0
  • Type: Poke-Thru
  • Volume: 784.0 cu in
  • Weight: 4.34 lb
  • Width: 7.0 in
Prewired 20A duplex receptacle can be wired as standard duplex or isolated ground. Flanges available painted in gray (GY), black (BK), ivory (VY). Flanges also available in plated brushed brass (BS) and brushed aluminum (AL). Slide covers match the painted flange colors, gray, black, ivory. Aluminum and brass flanges shipped with black slide cover. Brass flange also available with nonmetallic brass colored slide holder (AB). Aluminum flange also available with nonmetallic aluminum color slide holder (AA). Includes Wiremold Open System unloaded inserts. NOTE: Includes two Cat 6 TechChoice discrete keystone connectors, two Ortronics TracJack adapters, and two Wiremold Open System adapters. RC7 Series Poke-Thru Devices require a 3 1/16inch (78mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
  • Features
  • Product Description
  • Specifications
  • Certifications
    • RoHS Compliant
    • NAFTA Compliant
Prewired 20A duplex receptacle can be wired as standard duplex or isolated ground. Flanges available painted in gray (GY), black (BK), ivory (VY). Flanges also available in plated brushed brass (BS) and brushed aluminum (AL). Slide covers match the painted flange colors, gray, black, ivory. Aluminum and brass flanges shipped with black slide cover. Brass flange also available with nonmetallic brass colored slide holder (AB). Aluminum flange also available with nonmetallic aluminum color slide holder (AA). Includes Wiremold Open System unloaded inserts. NOTE: Includes two Cat 6 TechChoice discrete keystone connectors, two Ortronics TracJack adapters, and two Wiremold Open System adapters. RC7 Series Poke-Thru Devices require a 3 1/16inch (78mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
  • Number of Knockouts : 2
  • Special Features : TopGuard Protection, Dual Service, slide door activation
  • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21, 300.22[C] &314 of NEC.
  • Type : Poke-Thru
  • Country Of Origin : MX
  • Cubic Capacity : 24.5 cu in
  • Product Weight : 4.34 lb
  • Application Sector : Commercial
  • Color : Black
  • Core Hole Size : 3.063 in
  • Number of Outlets : 2.0
  • Product Depth : 16.0 in
  • Certifications : CULUS,ROHS,NAFTA
  • Product Volume : 784.0 cu in
  • Product Line : Wiremold
  • Product Width : 7.0 in
  • Product Height : 7.0 in
  • Certifications
    • cULus Listed : E2961
