Rachet-ProTM Series Round Nonmetallic Floor Box

ROUND PVC FL BOX

WRM881 881 786564524267
33.31 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Rachet-ProTM Series Round Nonmetallic Floor Box-1
  • Applications: Commercial, Education, Healthcare, Hospitality
  • Construction: Not Assembled
  • Country of Origin: USA
  • Depth: 5.63 in
  • Height: 6.25 in
  • Knockout Size: 1 in
  • Material: PVC
  • Number of Outlets: 0
  • Type: Floor Box
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 1.798 lb
  • Width: 4.25 in

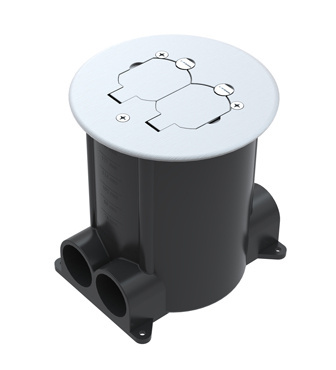

Wiremold® Ratchet-Pro™ Series Floor Boxes provide single- and dual-service capability in a variety of easy-to-install round floor boxes. These designs allow the flexibility for providing power, A/V or communication services to open-space areas in an aesthetic solution. Applications include malls, shopping centers, department stores, airports, hospitals, and office buildings. Ratchet-Pro™ Series Floor Boxes are cULus Listed for use in both on grade and above grade concrete construction.
QTY
  • Product Description
  • Features
  • Specifications
Wiremold® Ratchet-Pro™ Series Floor Boxes provide single- and dual-service capability in a variety of easy-to-install round floor boxes. These designs allow the flexibility for providing power, A/V or communication services to open-space areas in an aesthetic solution. Applications include malls, shopping centers, department stores, airports, hospitals, and office buildings. Ratchet-Pro™ Series Floor Boxes are cULus Listed for use in both on grade and above grade concrete construction.
  • Features
    • The Wiremold Ratchet-Pro™ PVC Floor Box provides dual-service capability in a single, easy-to-install round floor box.
    • Supplied with reusable concrete cap, adapter ring, conduit reducers, and conduit hub plugs.
    • Available for both single and dual service.
    • Graduated cubic inch markings inside the box indicate volume capacity at any depth.
  • Certifications
    • cULus Listed
    • RoHS Compliant
  • Specifications
    • Depth : 5.63 in
    • Special Features : Easy install racheting feature, Parallel conduit hubs, Cubic inch markings on box and divider, Conduit reducers and plugs included
    • Height : 6.25 in
    • Color : Black
    • Weight : 1.798 lb
    • Material : PVC
    • Width : 4.25 in
    • Country of Origin : United States
    • Product Line : Wiremold
    • Product Volume : 149.41
    • Type : Floor Box
    • Floor Type : Tile
    • Box Type : On-Grade
    • Floor Type : Carpet
    • Knockout Size : 1 in
    • Box Capacity : 1 Gang
    • Number of Outlets : 0.0
    • Cable Entry : Conduit Hub
    • Service Capacity : Single
    • Construction : Not Assembled
    • Application Sector : Education
    • Cubic Capacity : 72.0 in³
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Application Sector : Hospitality
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Nonmetallic Outlet Boxes: File E110748 Guide QCMZ.
