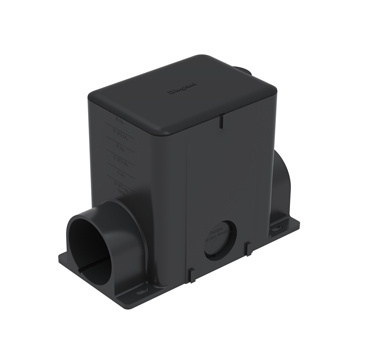

ModulinkTM 880MP Series Rectangular Plastic Floor Box with 2 Inch Conduit Opening

NONMETALLIC RECTANGULAR FLOOR

WRM880MP2 880MP2 786776180824
50.82 / EACH
http://schema.org/OutOfStock
Mayer-DDS-ModulinkTM 880MP Series Rectangular Plastic Floor Box with 2 Inch Conduit Opening-1
  • Applications: Commercial
  • Construction: Assembled
  • Country of Origin: USA
  • Depth: 8.25 in
  • Height: 6.25 in
  • Knockout Size: 1/2 in, 1-1/2 in
  • Material: PVC
  • Number of Outlets: 0
  • Type: Floor Box
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 3.5 lb
  • Width: 4.13 in
The Modulink™ nonmetallic floor box with 2 inch conduit feed provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.
QTY
  • Product Description
  • Features
  • Specifications
The Modulink™ nonmetallic floor box with 2 inch conduit feed provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.
  • Features
    • 2'' [51mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
    • Conduit reducers and plugs provided. Allows direct reduction from 2'' to 1 1/2'' or 1 1/4'' [51mm to 38mm or 32mm]. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
    • Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
    • Modular design and gangability. One SKU to order boxes, with the ability to configure boxes as needed on the job site.
    • Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
    • Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.
  • Certifications
    • cULus Listed
    • RoHS Compliant
  • Specifications
    • Depth : 8.25 in
    • Height : 6.25 in
    • Special Features : Depth markings on exterior of the box. Ratchet adjusting ring. Cubic inch markings on the interior of the box. Pass-through capability. Gangable.
    • Color : Black
    • Weight : 3.5 lb
    • Width : 4.13 in
    • Material : PVC
    • Product Line : Wiremold
    • Country of Origin : United States
    • Product Volume : 212.95
    • Type : Floor Box
    • Floor Type : Tile
    • Box Type : On-Grade
    • Floor Type : Carpet
    • Box Capacity : 1 Gang
    • Floor Type : Concrete
    • Cable Entry : Knockout
    • Knockout Size : 1/2 in
    • Number of Outlets : 0.0
    • Construction : Assembled
    • Knockout Size : 1-1/2 in
    • Cable Entry : Conduit Hub
    • Service Capacity : Single
    • Minimum Floor Depth : 4.0 in
    • Application Sector : Commercial
    • Cubic Capacity : 100.0 in³
    • Depth Behind Device Plates : 1.75 in
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Nonmetallic Outlet Boxes: File E110748 Guide QCMZ.
