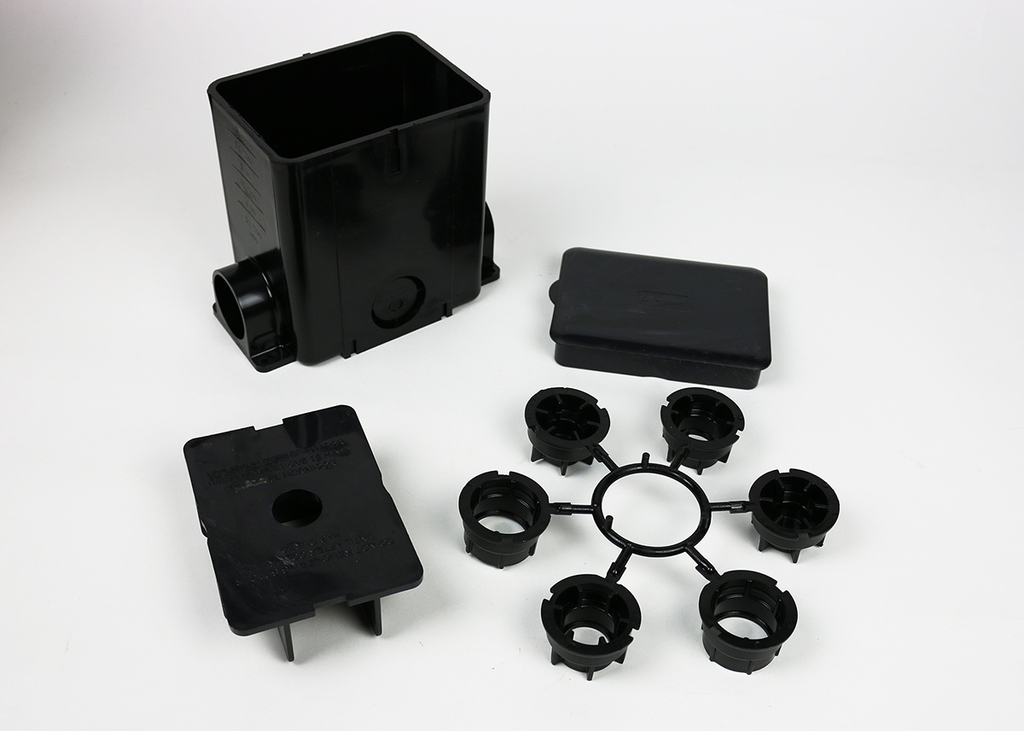

The Modulink™ nonmetallic floor box provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.

• Features
• TopGuard protection. Activation covers for the 880MP PVC box are TopGuard protected. These cover assemblies keep out water, dirt, and debris from the power and communication compartments.
• Multiple service capability. Eliminates the cost of a separate floor box and cover to accommodate communication service.
• Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.
• 1 1/4'' [32mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
• Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
• Conduit reducers and plugs provided. Allows direct reduction from 1 1/4'' [32mm] conduit to 1'' [25mm], 3/4'' [19.1mm] or 1/2'' [12.7mm] conduit.
• Cubic inch markings on the interior of the box. No need to calculate cubic inch capacity for wire fill, saving installation time.
• Ratchet adjusting ring has built-in fiber storage. Provides bend radius control for fiber optic cables.
• Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
• Modular design and gangability. One SKU to order boxes with the ability to configure boxes as needed on the job site.
• Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
• Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
• Internal spacer. Protects box from deformation of the sidewalls when high temperature additives are used in the concrete pour.
• Redesigned mudcap. High impact mudcap protects the box from damage when heavy equipment such as scissor lift trucks come in contact with the box during installation.
• Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
• A wide selection of data and bezel options available for use with Ortronics ® TracJack ™ and Series II devices.
• Certifications
• cULus Listed
• RoHS Compliant

• Specifications
• Depth : 7.13 in
• Height : 6.25 in
• Color : Black
• Material : Non-Metallic
• Weight : 2.27 lb
• Width : 4.13 in
• Product Line : Wiremold
• Country of Origin : United States
• Product Volume : 183.69
