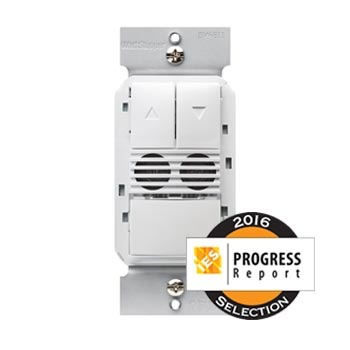

Wattstopper® Dual Technology 0-10V Dimming Wall Mounted Occupancy Sensor, 120/277V, White

0-10V DIMMER

WASDW311W DW311W 754182939428
231.94 / EA
http://schema.org/OutOfStock
Mayer-DDS-Wattstopper® Dual Technology 0-10V Dimming Wall Mounted Occupancy Sensor, 120/277V, White-1
  • Applications: Commercial
  • Connection Type: Wired
  • Country of Origin: China
  • Depth: 1.81 in
  • Finish: Matte
  • Height: 2.73 in
  • Indoor/Outdoor: Indoor
  • IsSustainable: Yes
  • Length: 2.73 in
  • Mounting Type: Box
  • Switch Type: Motion Sensor
  • Type: Switch
  • Voltage: 120/277 V
  • Width: 1.75 in
  • Wire Size: 10 AWG, 14 AWG
The DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
QTY
  • Product Description
  • Features
  • Specifications
The DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
  • Features
    • Color-matched lens and low profile for appealing design
    • Supports Partial-ON operation for energy code compliance or incentives
    • 120/277VAC and 347VAC models
    • Allows fully functional multi-way control from up to four switch locations
    • Defaults to Manual-ON operation for maximum energy savings
    • High sensitivity and dense coverage for exceptional performance
  • Specifications
    • Depth : 1.81 in
    • Height : 2.73 in
    • Color : White
    • Length : 2.73 in
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Width : 1.75 in
    • Country of Origin : China
    • Type : Switch
    • Mounting Type : Box
    • Seismic Tested : No
    • Voltage : 120/277 V
    • Connection Type : Wired
    • Indoor/Outdoor : Indoor
    • Number of Buttons : 3.0
    • Sensor Type : Occupancy
    • Features : Motion Sensor
    • Wire Size : #14 - #10 AWG
    • Requires Neutral Wire : No
    • Response Frequency : 60 Hz
    • Switch Type : Motion Sensor
    • Application Sector : Commercial
    • Number of Poles : Multi-Location
