soft starter for asynchronous motor, Altistart 01, ATS01, 9A, 460 to 480V

SOFT START 440-480VAC 9A ATS01

SQDATS01N209RT ATS01N209RT 3389110667240
286.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-soft starter for asynchronous motor, Altistart 01, ATS01, 9A, 460 to 480V-2
  • Country of Origin: Germany
  • IsSustainable: Yes
  • Warranty Length: 18 mth

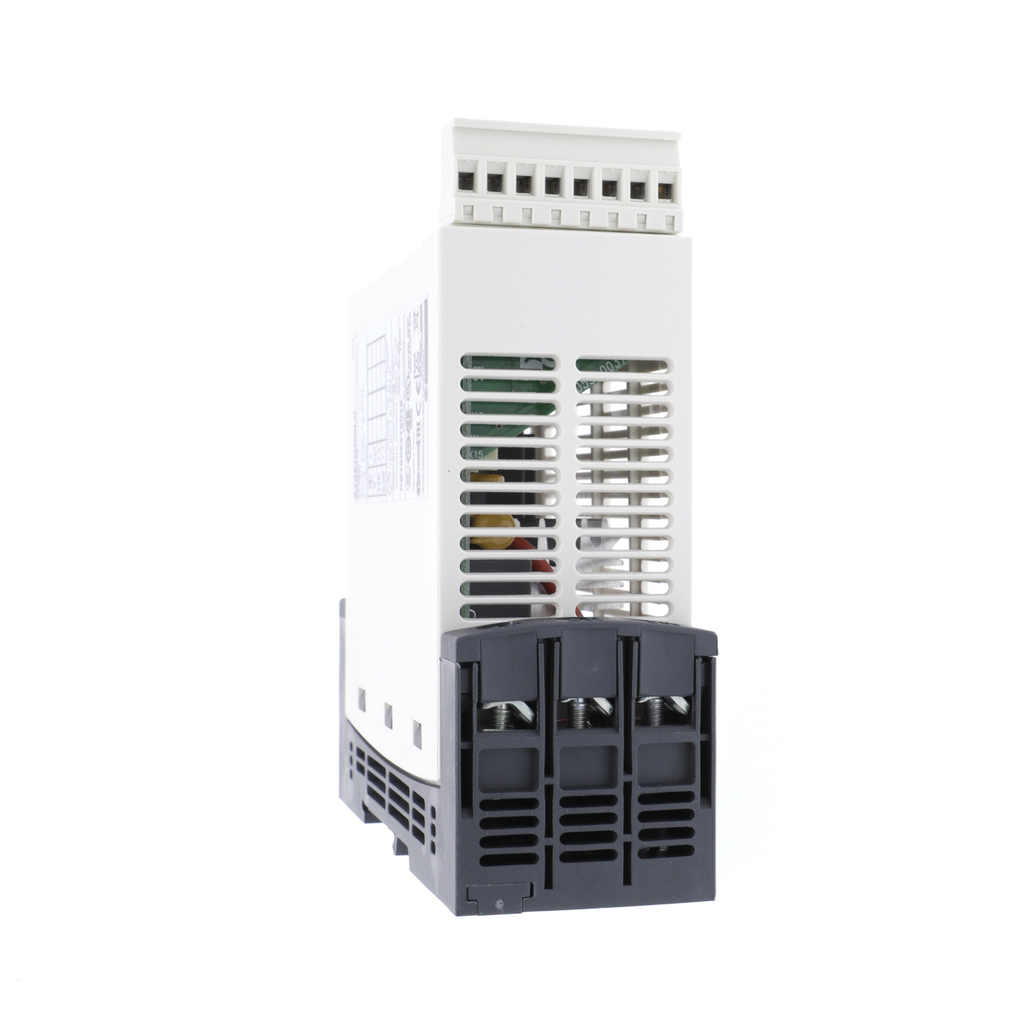

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 1.5kW or 2hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
QTY
  • Product Description
  • Features
  • Specifications
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 1.5kW or 2hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
  • Ambient Air Temperature For Storage
    • -25-70 °C EN/IEC 60947-4-2
  • US Rated Supply Voltage
    • 460...480 V - 10...10 %
  • Current Consumption
    • 45 A at nominal load
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUA&p_File_name=ATS01N206LUA.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUA&p_File_name=ATS01N206LUA.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUF&p_File_name=ATS01N206LUF.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUF&p_File_name=ATS01N206LUF.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUT&p_File_name=ATS01N206LUT.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N206LUT&p_File_name=ATS01N206LUT.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N209RT_CAD&p_File_name=ATS01N209RT_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N209RT_CAD&p_File_name=ATS01N209RT_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N209RT_CAD&p_File_name=ATS01N209RT_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N209RT_CAD&p_File_name=ATS01N209RT_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ATS01N209RT_CAD&p_File_name=ATS01N209RT_2D Right Side View.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Discrete Input Type
    • logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
  • Electrical Connection
    • 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
    • screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit
    • 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit
    • screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit
    • screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
    • 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
    • screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
    • 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit
    • 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
    • screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
  • Maximum Switching Current
    • relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive
    • relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
  • Maximum Horse Power Rating
    • 5 hp, 3 phase 460...480 V
  • Vibration Resistance
    • 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
    • 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Electrician
    • IT Channel Partner
  • Discrete Output Current
    • 2 A DC-13
    • 3 A AC-15
  • Electromagnetic Compatibility
    • conducted and radiated emissions level B conforming to CISPR 11
    • conducted and radiated emissions level B conforming to IEC 60947-4-2
    • damped oscillating waves level 3 conforming to IEC 61000-4-12
    • electrostatic discharge level 3 conforming to IEC 61000-4-2
    • EMC immunity level 3 conforming to EN 50082-1
    • EMC immunity level B conforming to EN 50082-2
    • harmonics level 3 conforming to IEC 1000-3-2
    • harmonics level 3 conforming to IEC 1000-3-4
    • immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
    • immunity to electrical transients level 4 conforming to IEC 61000-4-4
    • immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
    • micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
    • voltage/current impulse level 3 conforming to IEC 61000-4-5
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Display Type
    • 1 LED Green)starter powered up
    • 1 LED Yellow)nominal voltage reached
  • Relative Humidity
    • 5-95 % without condensation or dripping water EN/IEC 60068-2-3
  • Persona Type Ids
    • BM9
    • EU
    • OM
    • OM8
    • SC
    • VR
  • Minimum Switching Current
    • 10 mA 6 V DC relay outputs
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
    • > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
  • Utilisation Category
    • AC-53B EN/IEC 60947-4-2
  • Discrete Input Logic
    • positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Discrete Output Type
    • open collector logic LO1 end of starting signal
    • relay outputs R1A, R1C NO
  • Starting Time
    • 1 s / 100
    • 5 s / 20
    • 10 s / 10
    • adjustable from 1 to 10 s
  • Shock Resistance
    • 15 gn 11 ms EN/IEC 60068-2-27
  • Power Dissipation In W
    • 4 W at full load and at end of starting
    • 94 W in transient state
  • Ambient Air Temperature For Operation
    • -10-40 °C (without derating)
    • 40-50 °C (with current derating of 2 % per °C)
  • UE Rated Operational Voltage
    • 460...480 V 5 hp
  • Discrete Output Voltage
    • 24 V 6...30 V) open collector logic
  • Complementary Attributes
    • UC Control Circuit Voltage : built into the starter
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-04
    • HTML Description : Altistart 01 Soft Start (ATS01)For Asynchronous MotorlcL Starter Rating: 9AUS Rated Supply Voltage: 460-480VMotor Power Horsepower: 5 HPNetwork Number of Phases: Triple-phaseIntegrated BypassAssembly Style: with Heat Sink
    • Manufacturer : Schneider Electric
    • Device Type : Soft starter - Soft starter
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1927
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Assembly Style : with heat sink
    • Compatibility Code : ATS01N2
    • Deceleration Time Symb : adjustable from 1 to 10 s
    • Device Short Name : ATS01
    • ICL Starter Rating : 9 A
    • Package Weight Lbs : 529.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : soft starter
    • Product Specific Application : simple machine
    • Range Of Product : Altistart 01
    • Returnability : Yes
    • Starting Torque : 30...80 % of starting torque of motor connected directly on the line supply
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : cross-selling relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : soft starter
    • Range Of Product : Altistart 01
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=714824&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
