soft starter for asynchronous motor - ATS01 - 32 A - 460..480 V

soft starter for asynchronous motor - ATS01 - 32 A - 460..480 V

SQDATS01N232RT ATS01N232RT 785901673125
194.16 / EACH
  • Certifications: B44.1-96/ASME A17.5 For Starter Wired To The Motor Delta Terminal, CCC, CSA, C-tick, GOST, UL
  • Current: 160 A
  • Depth: 131 mm
  • Height: 154 mm
  • Net Weight: 0.56 kg
  • Number of Phases: 3
  • Standard: EN/IEC 60947-4-2
  • Storage Temperature: -25-70 °C EN/IEC 60947-4-2
  • Width: 45 mm

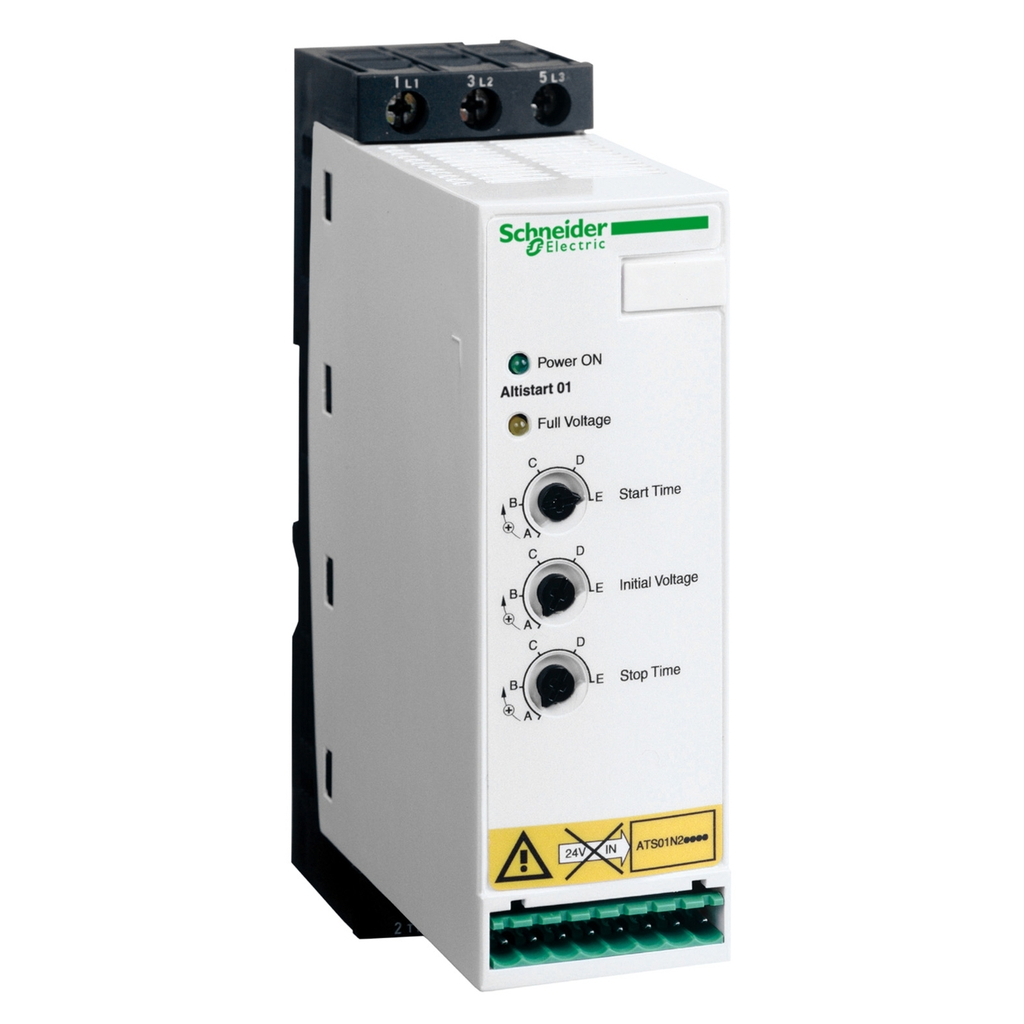

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
  • Product Description
  • Specifications
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
  • Maximum Switching Current : relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
  • Output Voltage : <= power supply voltage
  • Starting Torque : 30...80 % of starting torque of motor connected directly on the line supply
  • Maximum Width : 45 mm
  • Electrical Connection : 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit || screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit || screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit || 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
  • Device Short Name : ATS01
  • Product Or Component Type : soft starter
  • Standards : EN/IEC 60947-4-2
  • Compatibility Code : ATS01N2
  • Network Frequency : 47.5...63 Hz
  • Maximum Height : 154 mm
  • Discrete Input Type : logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
  • Discrete Output Current : 2 A DC-13 || 3 A AC-15
  • Ambient Air Temperature For Operation : -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
  • Product Specific Application : simple machine
  • Vibration Resistance : 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
  • Operating Position : vertical +/- 10 degree
  • Discrete Input Logic : positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
  • Assembly Style : with heat sink
  • Utilisation Category : AC-53B EN/IEC 60947-4-2
  • Net Weight : 0.56 kg
  • Type Of Start : start with voltage ramp
  • Shock Resistance : 15 gn 11 ms EN/IEC 60068-2-27
  • Discrete Output Voltage : 24 V 6...30 V) open collector logic
  • Maximum Horse Power Rating : 20 hp, 3 phase 460...480 V
  • Ambient Air Temperature For Storage : -25-70 °C EN/IEC 60947-4-2
  • Starting Time : adjustable from 1 to 10 s || 1 s / 50 || 10 s / 5 || 5 s / 10
  • Marking : CE
  • Range Of Product : Altistart 01
  • Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
  • Power Dissipation In W : 4.5 W at full load and at end of starting || 324.5 W in transient state
  • Product Destination : asynchronous motors
  • Discrete Input Voltage : 24...40 V
  • Current Consumption : 160 A at nominal load
  • Ip Degree Of Protection : IP20
  • Deceleration Time Symb : adjustable from 1 to 10 s
  • Relative Humidity : 5-95 % without condensation or dripping water EN/IEC 60068-2-3
  • Tightening Torque : 1.9-2.5 N.m || 0.5-0.5 N.m
  • Electromagnetic Compatibility : conducted and radiated emissions level B CISPR 11 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || micro-cuts and voltage fluctuation IEC 61000-4-11 || voltage/current impulse level 3 IEC 61000-4-5 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity EN 50082-2 || harmonics IEC 1000-3-2 || harmonics IEC 1000-3-4 || immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6
  • Pollution Degree : 2 EN/IEC 60947-4-2
  • Display Type : 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
  • Minimum Switching Current : 10 mA 6 V DC relay outputs
  • [Uc] Control Circuit Voltage : built into the starter
  • Supply Voltage Limits : 414-528 V
  • Product Certifications : B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CCC || UL || CSA || C-tick || GOST
  • Phase : 3 phase
  • Function Available : integrated bypass
  • Icl Starter Rating : 32 A
  • Discrete Output Type : open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
  • Maximum Depth : 131 mm
  • Supply Frequency : 50...60 Hz - 5...5 %
  • [Us] Rated Supply Voltage : 460...480 V - 10...10 %
