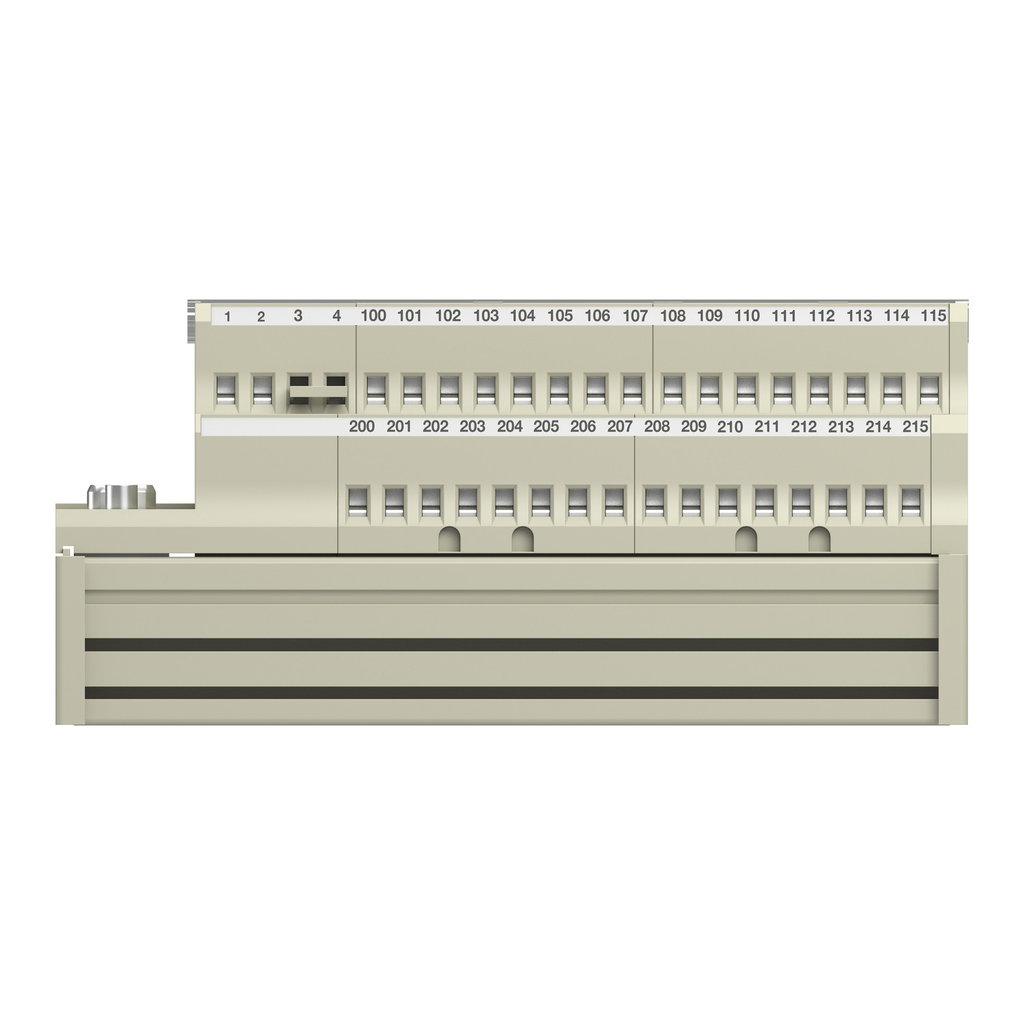

connection sub-base ABE7 - for passive distribution of 8 channels

TELEFAST 2 MODULE-COUNTING/ANA

SQDABE7CPA02 ABE7CPA02 3389110644463
391.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-connection sub-base ABE7 - for passive distribution of 8 channels-1
  • Warranty Length: 18 mth
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for passive distribution of 8 channels. It is a sub base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.29kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810, BMEAHI0812 and BMXAMO0802. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
QTY
  • Features
  • Specifications
  • Features
    • Telefast pre-wired system enables connection/adaptation of control signals of PLC cards equipped with HE10 connectors
    • Modicon ABE7 pre-wired system: smart compatibility with Modicon M221, Modicon X80 I/O, Modicon Premium, Modicon TM3 I/O
    • Modicon ABE7: Plug & play solution offering 8, 12, or 16 channel modularity, for a 1, 2, and 3 wire connection
    • Telefast pre-wired system offers voltage and power adaptation and common polarities distribution
    • Pre-wired system figuring solid state and electromechanical technology, smart sub-bases for analog signal connection
    • Modicon ABE7 pre-wired system simplifies the wiring of the operative parts of the machine to the IO modules
    • Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment
    • Solid state and electromechanical technology
    • Specialised sub-bases for analog signal connection
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : GL, DNV, UL, CSA, EAC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Fixing Mode : by clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)
    • Function Of Module : analogue input current Premium, analogue input voltage Premium, Pt 100 Premium
    • Resistance To Electrostatic Discharge : 4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2
    • Carbon Footprint Of The Distribution Phase A4 : 0.04493997891430117, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6 kg CO2 eq., 0.6479613408111692
    • Carbon Footprint Of The Installation Phase A5 : 0.07969865349607946, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 8.441897142048532
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 49 kg CO2 eq., 48.58680178177649
    • Connections Terminals : screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    • Connections Terminals3 : screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1212029EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 301.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : connection sub-base for counter and analogue channels
    • Protective Treatment : TC
    • Range Of Product : Modicon ABE7
    • Resistance To Fast Transients : 2 kV level 3 IEC 61000-4-4
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Sustainable Packaging : No
    • Tightening Torque : 0.6 N.m flat Ø 3.5 mm
    • Total Lifecycle Carbon Footprint : 58 kg CO2 eq.
    • Vibration Resistance : 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ui Rated Insulation Voltage2 : 2000 V terminals/mounting rails
    • Medium Desc : connection sub-base ABE7 - for passive distribution of 8 channels
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP121229_V4
    • Database Version : 2024-01
    • Pep Verification Date : 2026-02-27
    • Pcr Version : PCR-4-ed4-2021 09 06
    • Psr Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Latvia, LV
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Connection To Plc : SUB-D 25
    • Installation Category : II IEC 60664-1
    • Resistance To Incandescent Wire : 750 °C 30 s IEC 60695-2-11
    • Resistance To Radiated Fields : 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
    • Global Commercial Status : Commercialised
    • Ui Rated Insulation Voltage5 : 2000 V terminals/mounting rails
  • Environment Attributes Main
    • Take Back : No, Nej
    • Ambient Air Temperature For Storage : -40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 57.80129889704657
    • Ambient Air Temperature For Operation : 0-60 °C IEC 61131-2
    • Circularity Profile : ENVEOLI1212029EN
    • Environmental Disclosure : ENVPEP121229_V4
    • IP Degree Of Protection : IP20 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP121229_V4
    • Pep Verification Date : 2026-02-27
    • Pcr Version : PCR-4-ed4-2021 09 06
