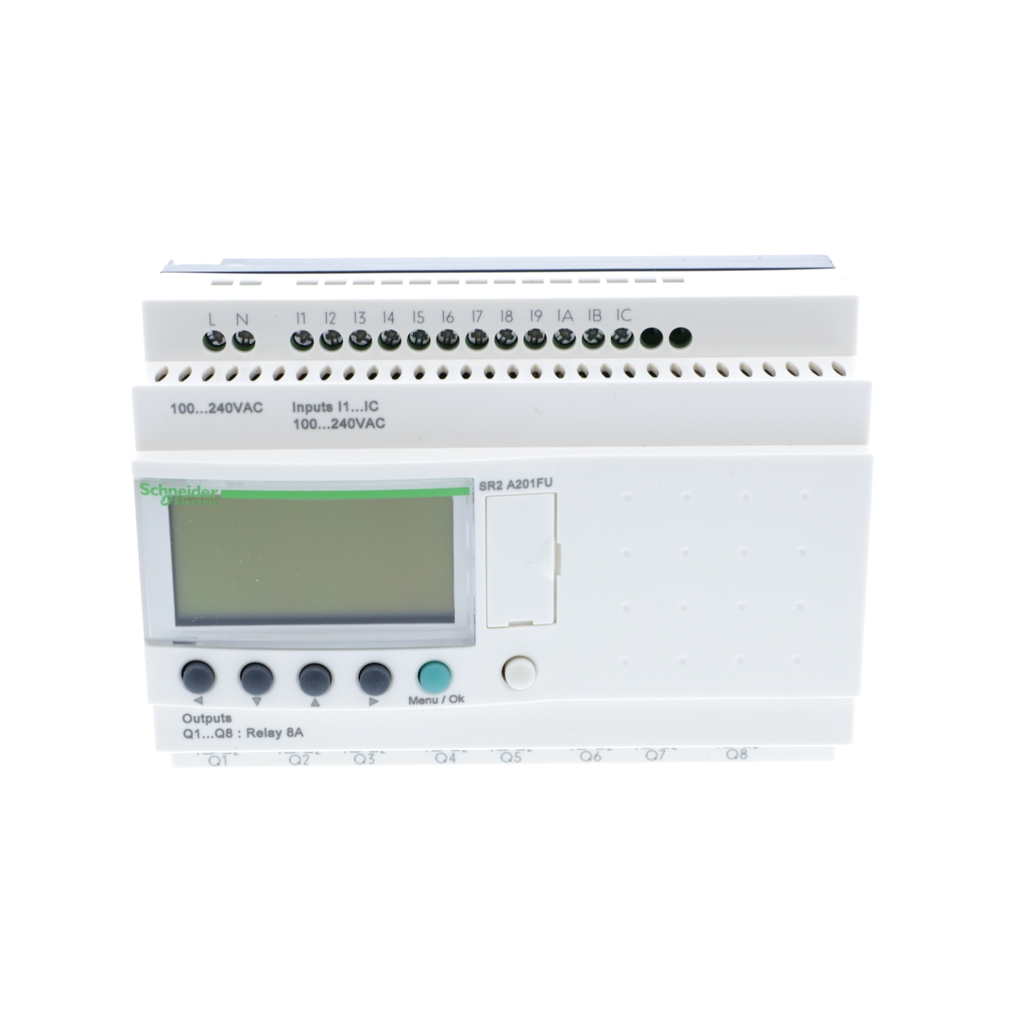

Compact smart relay, Zelio Logic, 20 I O, 100...240 V AC, no clock, display

Compact smart relay, Zelio Logic, 20 I O, 100...240 V AC, no clock, display

SQDSR2A201FU SR2A201FU 785901422600
328.59 / EACH
  • Certifications: CSA, C-tick, GL, GOST, UL
  • Country of Origin: France
  • Number of Outputs: 8
  • Standard: EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 Level 3
  • Warranty Length: 18 mth
  • Weight: 0.38 kg, 0.84 lb
This Schneider Electric Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100 to 240 volts alternating current, has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. This product meets EN/IEC 61000-4-12, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-5, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-11 and EN/IEC 61000-4-2 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
  • Product Description
  • Specifications
This Schneider Electric Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100 to 240 volts alternating current, has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. This product meets EN/IEC 61000-4-12, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-5, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-11 and EN/IEC 61000-4-2 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
  • Main
    • Range Of Product : Zelio Logic
    • Product Or Component Type : Compact smart relay
  • Complementary
    • Supply Current : 100 mA 100 V without extension) || 50 mA 240 V without extension)
    • Contacts Type And Composition : NO relay output
    • Checks : Program memory on each power up
    • Input Impedance : 350 kOhm discrete input
    • Power Consumption In Va : 11 VA without extension
    • Supply Voltage Limits : 85…264 V
    • ISOlation Voltage : 1780 V
    • Discrete Input Current : 0.6 mA
    • Us Rated Supply Voltage : 100...240 V AC
    • Current State 1 Guaranteed : >= 0.17 mA discrete input)
    • Response Time : 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
    • Overvoltage Category : III EN/IEC 60664-1
    • Electrical Durability : AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
    • Connections - Terminals : Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
    • Uimp Rated Imp Wstd Voltage : 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    • Current State 0 Guaranteed : <= 0.5 mA discrete input)
    • Mechanical Durability : 10000000 cycles relay output
    • Backup Time : 10 years 77 °F (25 °C)
    • Number Or Control Scheme Lines : 0…240 ladder
    • Voltage State 1 Guaranteed : >= 79 V discrete input
    • Protection Type : Against inversion of terminals (control instructions not executed)
    • Local Display : With
    • Product Weight : 0.84 lb(US) (0.38 kg)
    • Number Of Outputs : 8 relay
    • Supply Frequency : 50/60 Hz
    • Cycle Time : 6…90 ms
    • Clock Drift : 12 min/year 32…131 °F (0…55 °C) || 6 s/month 77 °F (25 °C)
    • Voltage State 0 Guaranteed : <= 40 V discrete input
    • Discrete Input Voltage : 100...240 V AC
    • Switching Capacity In Ma : >= 10 mA 12 V relay output)
    • Discrete Input Number : 12
    • Discrete Input Frequency : 47...53 Hz || 57...63 Hz
    • Clock : Without
    • Operating Rate In Hz : 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
    • Output Thermal Current : 8 A for all 8 outputs relay output
    • Tightening Torque : 4.43 lbf.in (0.5 N.m)
    • Output Voltage Limits : 5...30 V DC relay output) || 24...250 V AC
  • Ordering And Shipping Details
    • Country Of Origin : FR
    • GTIN : 00785901422600
    • Nbr. Of Units In Pkg. : 1
    • Category : 22378 - SR2,3 ZELIO 2 RELAYS
    • Returnability : Yes
    • Discount Schedule : I
  • Environment
    • Altitude Transport : 10000.00 ft (3048 m)
    • Environmental Characteristic : EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || Low voltage directive EN/IEC 61131-2
    • Operating Altitude : 6561.68 ft (2000 m)
    • Relative Humidity : 95 % without condensation or dripping water
    • Pollution Degree : 2 EN/IEC 61131-2
    • Ambient Air Temp For Op : -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2
    • IP Degree Of Protection : IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
    • Immunity To Microbreaks : 10 ms
    • Disturbance Radiated/Conducted : Class B EN 55022-11 group 1
    • Product Certifications : GL || C-tick || CSA || UL || GOST
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Standards : EN/IEC 61000-4-12 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-5 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-3 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-11 || EN/IEC 61000-4-2 level 3
