TELEMECANIQUE

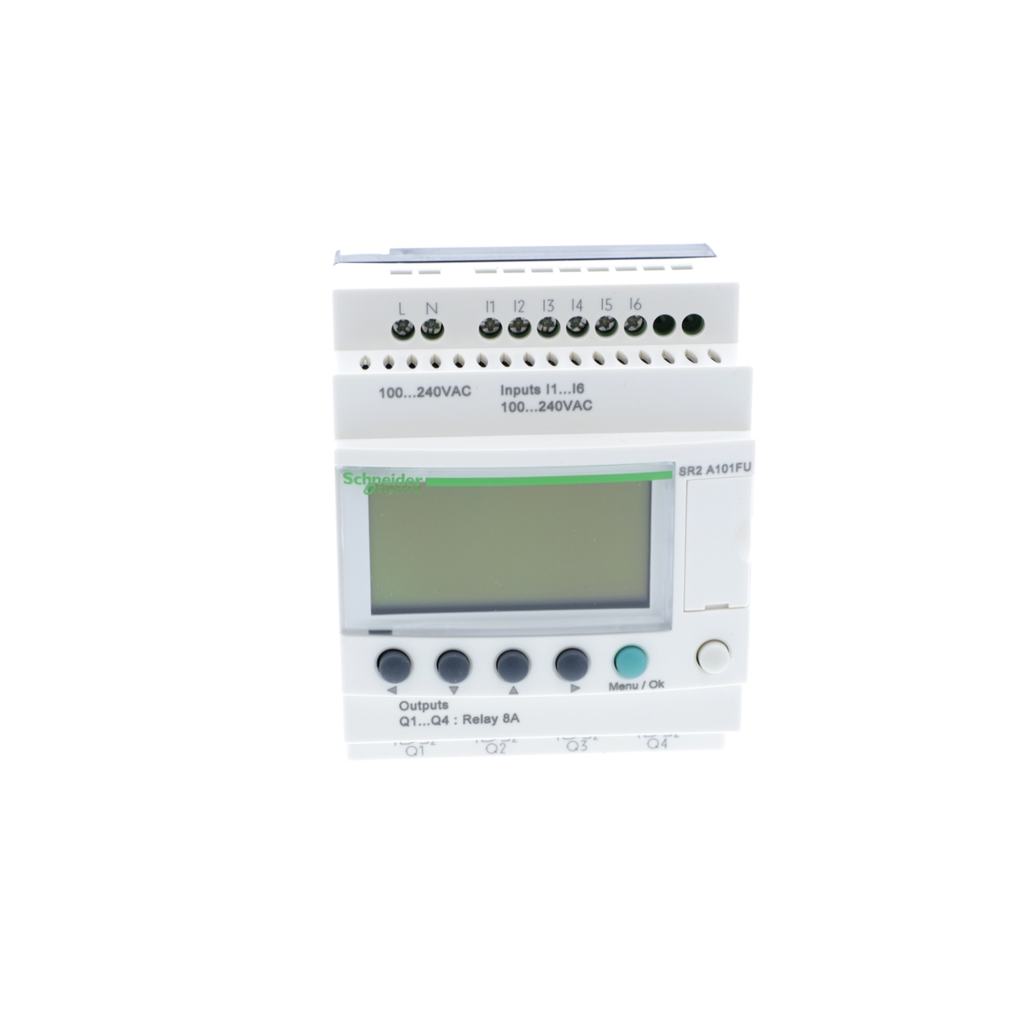

compact smart relay, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC, no clock, display

ZELIO SR2 10 I-O 100-240VAC W/

SQDSR2A101FU SR2A101FU 3389110547634
297.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-compact smart relay, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC, no clock, display-2
  • Country of Origin: France
  • Warranty Length: 18 mth
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing install
QTY
  • Product Description
  • Features
  • Specifications
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing install
  • Contacts Type And Composition
    • NO relay output
  • Connections Terminals
    • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid
    • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 1
  • Overvoltage Category
    • III conforming to IEC 60664-1
  • Clock Drift
    • 12 min/year 0-55 °C
    • 6 s/month 25-25 °C
  • Uimp Rated Impulse Withstand Voltage
    • 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
  • Number Or Control Scheme Lines
    • 0-240 ladder
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Mechanical Durability
    • 10000000 cycles relay output
  • Response Time
    • 50 ms ladder from state 0 to state 1)discrete input
    • 50 ms ladder from state 1 to state 0)discrete
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0017632576
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1887467353
    • 0.2 kg CO2 eq.
  • Standards
    • IEC 61000-4-6 level 3
    • IEC 61000-4-11
    • IEC 61000-4-3
    • IEC 61000-4-12
    • IEC 61000-4-4 level 3
    • IEC 61000-4-5
    • IEC 60068-2-6 Fc
    • IEC 61000-4-2 level 3
    • IEC 60068-2-27 Ea
  • Disturbance Radiated Conducted
    • class B EN 55022-11 group 1
  • Ip Degree Of Protection
    • IP20 IEC 60529 terminal block)
    • IP40 IEC 60529 front panel)
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 31 kg CO2 eq.
    • 30.5912970588
  • Switching Capacity In Ma
    • >= 10 mA 12 V relay output)
  • Accessories
    • SR2CBL01
    • SR2MEM02
  • Electrical Durability
    • AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1
    • AC-12 500000 c
  • Voltage State 1 Guaranteed
    • >= 79 V discrete input
  • Discrete Input Voltage
    • 100...240 V AC
  • Environmental Characteristic
    • EMC directive conforming to IEC 61000-6-2
    • EMC directive conforming to IEC 61000-6-3
    • EMC directive conforming to IEC 61000-6-4
    • EM
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 300 kg CO2 eq.
    • 300.44
  • Number Of Outputs
    • 4 relay
  • Relative Humidity
    • 95-95 % without condensation or dripping water
  • Current State 0 Guaranteed
    • <= 0.5 mA discrete input)
  • Us Rated Supply Voltage
    • 100...240 V AC
  • Discrete Input Frequency
    • 47...53 Hz
    • 57...63 Hz
  • Output Voltage Limits
    • 5...30 V DC relay output)
    • 24...250 V AC
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0308366235
    • 0 kg CO2 eq.
  • Operating Rate In Hz
    • 0.1 Hz at Ie)relay output
    • 10 Hz no load)relay output
  • Output Thermal Current
    • 8 A for all 4 outputs relay output
  • Maximum Supply Current
    • 30 mA 240 V without extension)
    • 80 mA 100 V without extension)
  • Voltage State 0 Guaranteed
    • <= 40 V discrete input
  • Input Impedance
    • 350 kOhm discrete input
  • Current State 1 Guaranteed
    • >= 0.17 mA discrete input)
  • Ambient Air Temperature For Operation
    • -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    • -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
    • -2
  • Power Consumption In Va
    • 7 VA without extension
  • Product Certifications
    • C-tick
    • CSA
    • GL
    • UL
    • GOST
  • Communications & Management Attributes
    • Communication : SR2COM01
  • Complementary Attributes
    • Maximum Altitude Transport : 3048 m
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-10
    • ETIM 10 : EC001417
    • Html Descr : Zelio Logic Compact Smart RelayLocal Display: WithNumber or Control Scheme Lines: 0-240 with ladder programmingCycle Time: 6-90msBackup Time: 10 years at 35 deg. CRated Supply Voltage: 100-240V AC 50/60 HzClock: Without
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 30.5912970588
    • Distribution Carbon Footprint : 0.0308366235
    • Installation Carbon Footprint : 0.0017632576
    • Use Carbon Footprint : 300.44
    • End Of Life Carbon Footprint : 0.1887467353
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2011013EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1846
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Checks : program memory on each power up
    • Clock : without
    • Cycle Time : 6-90 ms
    • Immunity To Microbreaks : 10 ms
    • Isolation Voltage : 1780 V
    • Local Display : with
    • Package Weight Lbs : 243.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : compact smart relay
    • Protection Type : against inversion of terminals (control instructions not executed)
    • Range Of Product : Zelio Logic
    • Returnability : Yes
    • Supply Frequency : 50/60 Hz
    • Supply Voltage Limits : 85-264 V
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.5 N.m
    • Total Lifecycle Carbon Footprint : 331 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 331.2526436753
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : compact smart relay
    • Range Of Product : Zelio Logic
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=1453325&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 331.2526436753
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2011013EN
    • Environmental Disclosure : ENVPEP2011013EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Operating Altitude : 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Analogue Input Number : 0
    • Discrete Input Current : 0.6 mA
    • Discrete Input Number : 6
  • Specifications
    • Country of Origin : France
