Disconnects

FEM DISC INS #12-10 AWG

TNBRC10250F RC10-250F 786210874203
2.49 / CASE
http://schema.org/OutOfStock
Mayer-DDS-Disconnects-1
  • Finish: Electro Tin-Plated
  • Material: Brass
  • Package Type: Standard
  • Temperature Rating: 105 °C
  • Voltage: 600 V

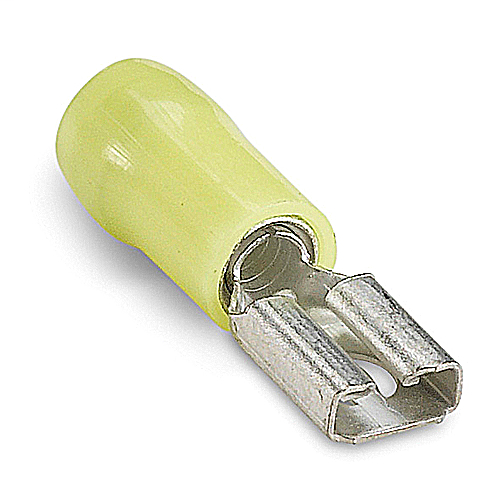

Insulated Nylon Female - 250 Series Disconnects For Wire Range 12-10 Length 1.04, Tab Size .250 x .032 , Yellow
QTY
  • Product Description
  • Features
  • Specifications
Insulated Nylon Female - 250 Series Disconnects For Wire Range 12-10 Length 1.04, Tab Size .250 x .032 , Yellow
  • Certifications
    • UL
    • CSA
  • Features
    • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
  • Dimension Information
    • A (inches) : 1.10
    • Stock Thickness : .04
    • Maximum Insulation (inches) : .215
    • B (inches) : .29
  • Certifications
    • RoHS Compliance : Yes (exemption 06)
  • Packaging
    • Inner Package : 50
    • Alternate Package Qty : RC250
    • T&B Sold in UOM : Each
    • Package Height : 7.2
    • Package Width : 9
    • Outer Package : 250
    • Order Multiple : 50
    • Package Type : Standard
    • Package Length : 10.25
    • T&B Weight Per UOM : 5.63 lbs. per 1000
  • Tooling
    • Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003
    • Recommended Tool : ERG4001
  • General
    • Color : Yellow
    • Material : Brass
    • Wire Range : 12-10
    • Insulation Type : Insulated Nylon
    • Finish : Electro Tin-Plated
    • Disconnect Type : Female - 250 Series
    • Terminal Series : RC
    • Tab Size : .250 x .032
  • Specifications
    • Voltage Rating : 600V
    • Flammability Rating : UL 94 V-2
    • Temperature Rating : 105°C
