wireless and battery less handy box, 1 double action button

wireless and battery less hand

SQDZBRM21B0 ZBRM21B0 3606480891090
162.57 / EA
http://schema.org/OutOfStock

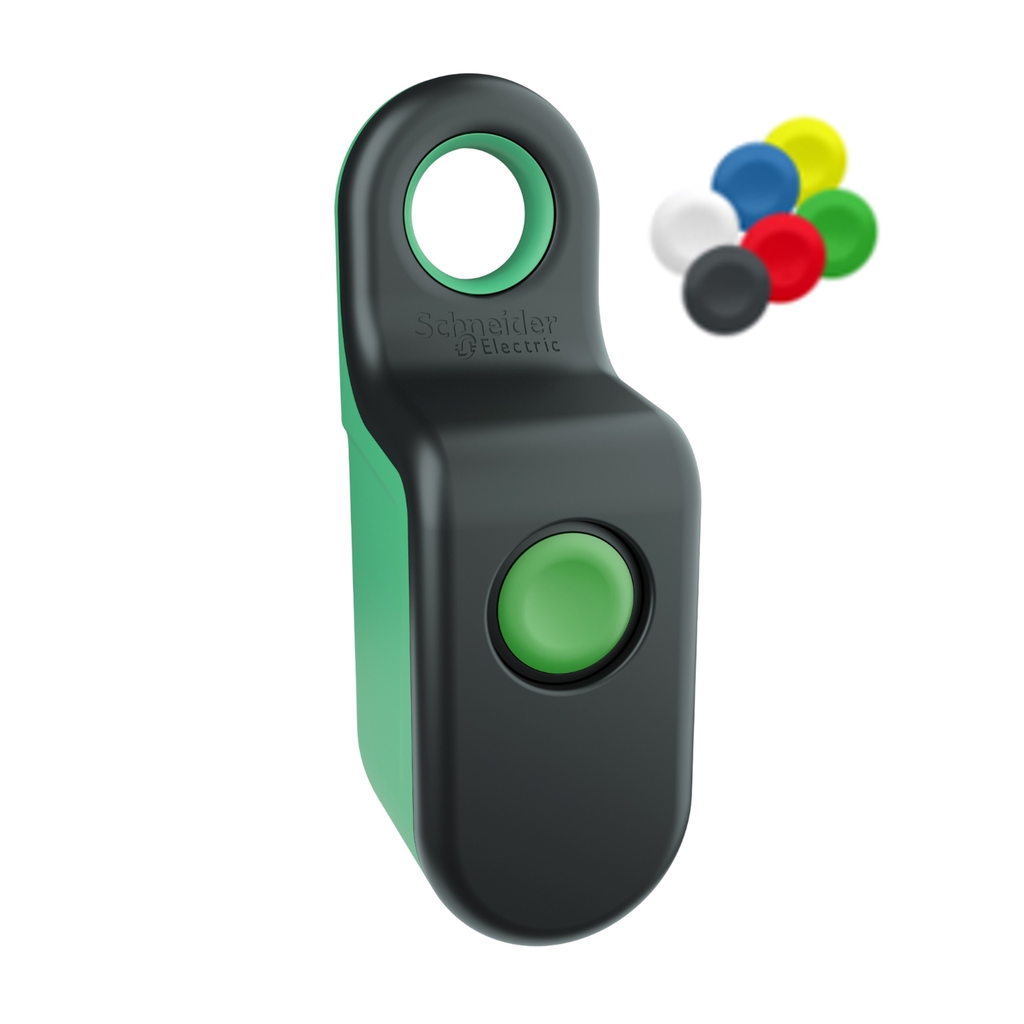

Mayer-DDS-wireless and battery less handy box, 1 double action button-1
  • Bezel Material: Plastic
  • Country of Origin: France
QTY
  • Features
  • Specifications
  • Maximum Sensing Distance
    • 100 m in free field
    • 25 m transmitter in the handy box and receiver in a metal enclosure
    • 300 m transmitter in the handy box, receiver in metal enclosure and use relay-
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • UL 508
    • EN/IEC 60947-5-1
    • EN/IEC 60947-1
    • CSA C22.2 No 14
  • Radio Agreement
    • RSS UL 508
    • ARIB T66 CSA C22.2 No 14
    • ICASA
    • ANATEL
    • FCC
  • Ip Degree Of Protection
    • IP65 IEC 60529 front face)
    • IP65 UL Type 12 front face)
  • Communication Port Protocol
    • Zigbee green power 2.4 GHz
  • Operating Force
    • 25 N C/O changing electrical state
  • Vibration Resistance
    • 5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6
    • +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
    • +/- 10 m
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
    • electrostati
  • Relative Humidity
    • 95-95 % 70-70 °C without condensation
  • Directives
    • 1999/5/EC - R&TTE directive
    • 2004/108/EC - electromagnetic compatibility
  • Mechanical Robustness
    • free fall resistance 1000 mm EN/IEC 60068-2-32
  • Contact Operation
    • 1 double action UP/DOWN push-buttons
  • Operating Travel
    • 4.3 mm total travel)
  • Kit Composition
    • 1 handy box
    • 1 set of caps
    • 1 transmitter
    • 1 push-button head 22 mm
    • 1 fixing collars
  • Shock Resistance
    • 25 gn 6 ms) 6000 shocks IEC 60068-2-27
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 30 gn 18 ms) half sine wave acceleration I
  • Product Certifications
    • C-tick
    • EAC
    • CSA
    • CCC
    • BT 2006/95/EC
    • UL
  • Physical Attributes
    • Cad Overall Depth : 65 mm
    • Cad Overall Height : 163 mm
    • Cad Overall Width : 65 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic
    • Device Short Name : XB5R
    • Emission Power : 3 mW
    • Fixing Collar Material : plastic
    • Group Of Product : flush push wireless
    • Main Group : wireless push-button
    • Mechanical Durability : 400000 cycles
    • Mounting Diameter : 22 mm
    • Operator Additional Information : set of caps
    • Operator Profile : flush
    • Package Weight Lbs : 178.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : wireless and batteryless transmitter
    • Product Repair Index : A
    • Range Of Product : Harmony XB5R
    • Response Time : < 2 ms
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Type Of Operator : spring return push-button with transmitter
    • Relationshiptype : Compatible relationship
    • Accessories : ZBRACS
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
  • General Attributes
    • Product Or Component Type : wireless and batteryless transmitter
    • Range Of Product : Harmony XB5R
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=474494415&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : France
