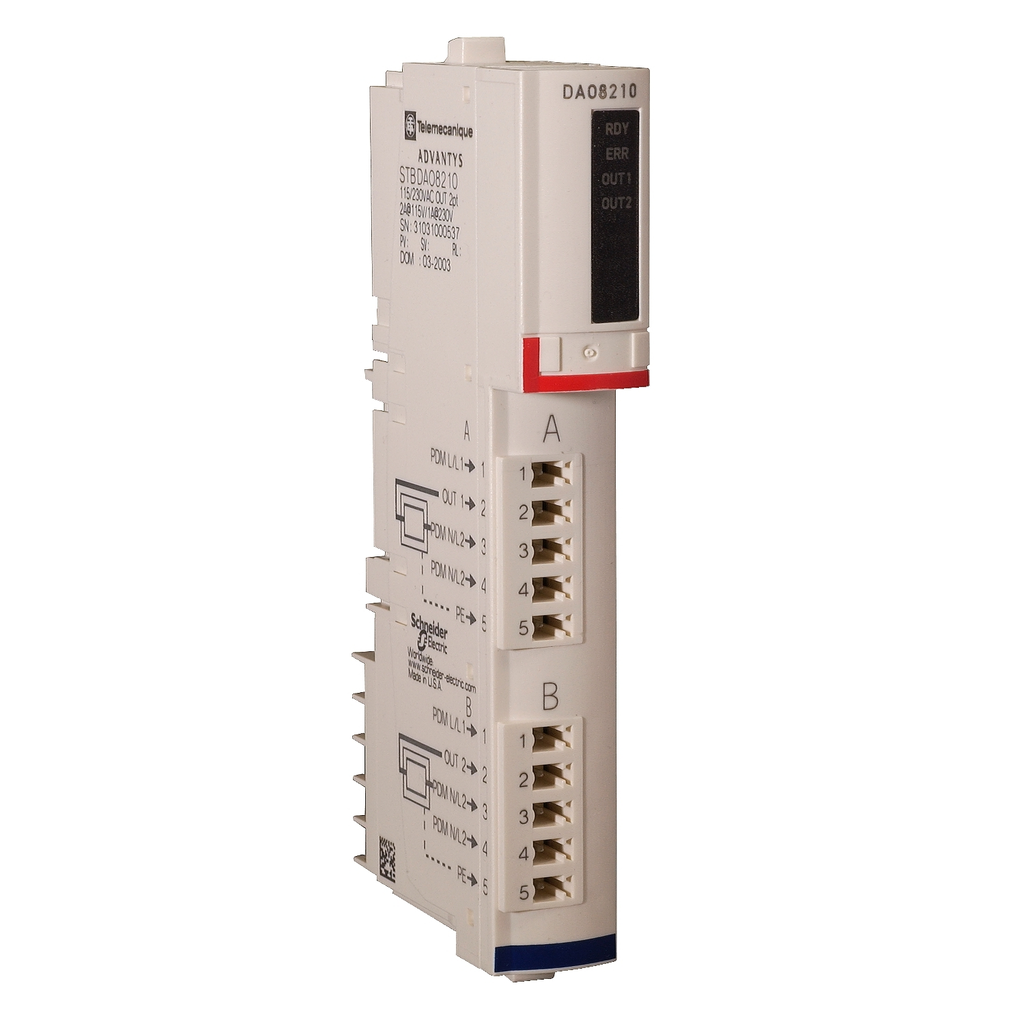

This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard digital output kit for I/O base and power distribution modules. The kit consists of a base, a module, a 5-terminal spring clamp connector, and a 5-terminal screw-type connector. It supports 2 discrete outputs at an output voltage of 115 to 230 VAC. This product weighs 0.125 kg. Ideal for environment such as packaging, bottling, assembly, distribution, textile, printing, semiconductor machines. It is UL, CSA, and FM Class 1 Division 2 certified and conforms to IEC 61131-2 and IEC 60664-1 standards. This is compatible with the mounting base STBXBA2200. It is designed to be mounted on DIN rail. Modicon STB range is simple, open and flexible, meeting your needs in every stage of the product life cycle. They save you time and money by simplifying maintenance and diagnostic tasks.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO5_CAD2D_all
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-top.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Typical Current Consumption
• 45 mA 5 V DC
• Maximum Leakage Current
• 2 mA 115 V AC at state 0
• 2.5 mA 230 V AC at state 0
• Response Time On Output
• < 10 ms maximum (turn on)
• < 10 ms maximum (turn off)
• Discrete Output Number
• 2 triac at 115...230 V AC
• Persona Type Names
• End User
• OEM - Control Panelbuilder
• System Integrator
• Discrete Output Current
• 1000 mA at 60 °C
• 2000 mA
• Relative Humidity
• 95-95 % 60-60 °C without condensation
• Persona Type Ids
• EU
• OM8
• SI
• Shock Resistance
• 30 gn 11 msIEC 88 reference 2-27
• Product Certifications
• UL
• CSA
• FM Class 1 Division 2
• Discrete Output Voltage
• 115...230 V ACtriac

• Conformance Attributes
• Standards : EN/IEC 61131-2
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-15
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1920
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 4
• Tier : 4
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Front Installation Possible : false
• IO Link Master Present : false
• Network Type : AC
• Number Of Hw Interfaces Industrial Ethernet : 0
• Number Of Hw Interfaces Other : 0
• Number Of Hw Interfaces Parallel : 0
• Number Of Hw Interfaces Profinet : 0
• Number Of Hw Interfaces Serial Rs232 : 0
• Number Of Hw Interfaces Serial Rs422 : 0
• Number Of Hw Interfaces Serial Rs485 : 0
• Number Of Hw Interfaces Serial Tty : 0
• Number Of Hw Interfaces Usb : 0
• Number Of Hw Interfaces Wireless : 0
• Optical Interface Present : false
• Package Weight Lbs : 142.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : standard digital output kit
• Rack Assembly Possible : false
• Radio Standard Bluetooth : false
• Radio Standard GPRS : false
• Radio Standard GSM : false
• Radio Standard UMTS : false
• Range Of Product : Modicon STB distributed I/O solution
• Returnability : No
• Suitable For Safety Functions : false
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : true
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : true
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : true
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : true
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : true
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : true
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For TCP IP : true
• Sustainable Packaging : No
• Wall Mounting Direct Mounting Possible : false
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Digital Outputs Configurable : false
• Fieldbus Connection Over Separate Bus Coupler Possible : true
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : standard digital output kit
• Range Of Product : Modicon STB distributed I/O solution
• Output Attributes
• Discrete Output Voltage Type : AC
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=697410&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : <= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
