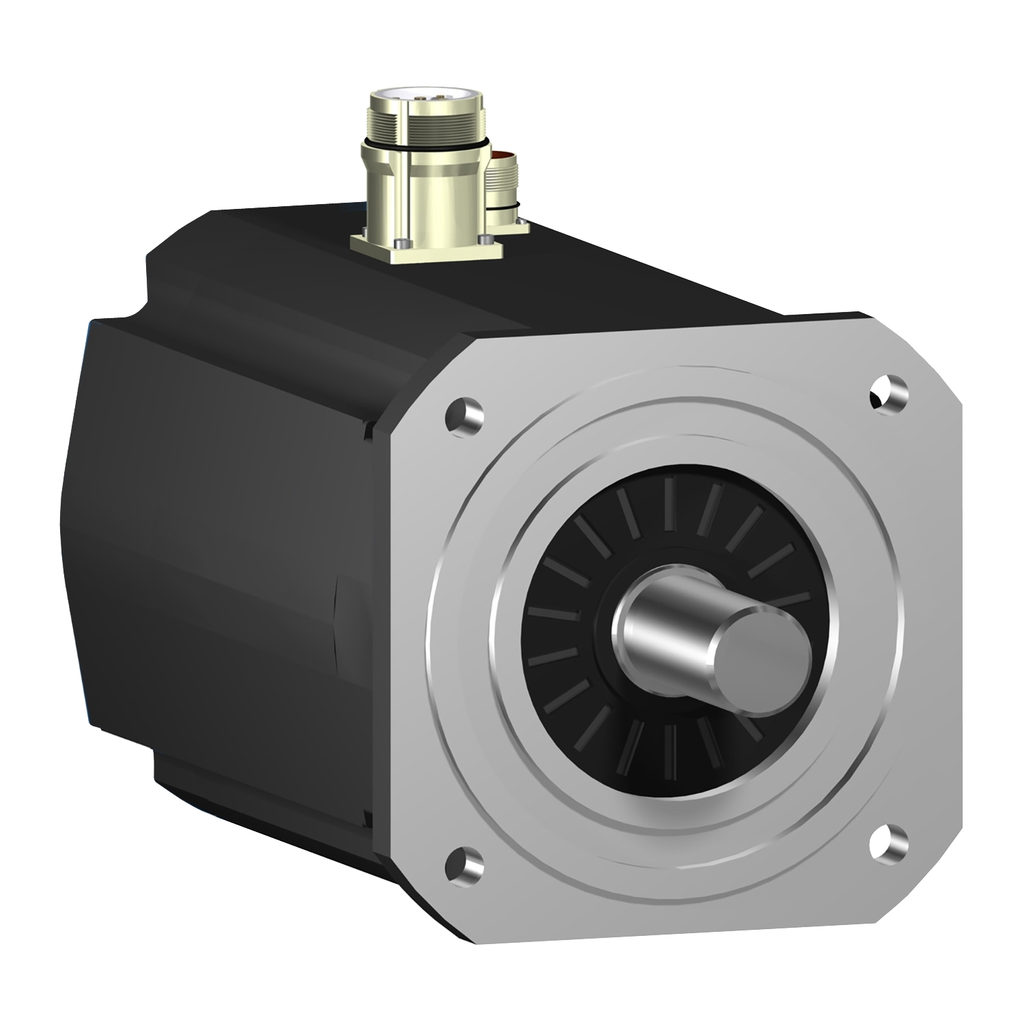

servo motor SH3 205 94,4Nm,key,multi,brake,str.conn,IP54/IP65,3.8k RPM

SERVO MOTOR SH3 205 94,4NM,KEY

SQDSH32053P12F1000 SH32053P12F1000 3606481973740
12621.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-servo motor SH3 205 94,4Nm,key,multi,brake,str.conn,IP54/IP65,3.8k RPM-1
  • Country of Origin: Germany
  • Shaft Diameter: 38 mm
  • Shaft End: Parallel Key
  • Shaft Length: 80 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Nominal Speed
    • 500 rpm 115 V single phase
    • 1000 rpm 230 V single phase
    • 2000 rpm 400 V three phase
    • 2400 rpm
  • IP Degree Of Protection
    • IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
    • IP65 motor: conforming to IEC 60034-5
    • IP65 m
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Nominal Output Power
    • 4450 W 115 V single phase
    • 7790 W 230 V single phase
    • 10620 W 400 V three phase
    • 10100 W 480 V three
  • Peak Stall Torque
    • 330 N.m 115...480 V three phase
  • Maximum Radial Force FR
    • 4500 N 1000 rpm
    • 3570 N 2000 rpm
    • 3120 N 3000 rpm
  • Nominal Torque
    • 84.9 N.m 115 V single phase
    • 74.4 N.m 230 V single phase
    • 50.7 N.m 400 V three phase
    • 40.2
  • Continuous Stall Torque
    • 94.4 N.m 115...480 V three phase
  • Device Short Name
    • SH3
  • Torque Constant
    • 2.84 N.m/A 120 °C
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001947_3D-CAD
  • Physical Attributes
    • Key Width : 10 mm
    • Motor Flange Size : 205 mm
    • Shaft Length : 80 mm
  • Complementary Attributes
    • Maximum Ambient Air Temperature For Operation : 60.0 °C
    • Maximum Current IRMS : 136.1 A
    • Maximum Mechanical Speed : 3800 rpm
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Maximum In Rated Current : 20.4 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Centring Collar Diameter : 180 mm
    • Circle Diameter Of The Mounting Holes : 215 mm
    • Continuous Stall Current : 33.2 A
    • Derating Altitude Scale : 80.0 m
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Scale : 80.0 °C
    • Derating Temperature Start : 40.0 °C
    • Electrical Connection : straight connector
    • Holding Brake : with
    • Holding Torque : 80 N.m
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Motor Figures : 400.0 V
    • Mounting Holes Diameter : 14 mm
    • Network Number Of Phases : 3
    • Number Of Motor Poles : 5
    • Package Weight Lbs : 76.56 kg
    • Peak Nominal Torque : 330.0 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor
    • Returnability : No
    • Rotor Inertia : 206 kg.cm²
    • Shaft Diameter : 38 mm
    • Shaft End : parallel key
    • Sizing Reference : SH32053P
    • Stator Inductance : 2.05 mH
    • Stator Resistance : 0.2 Ohm
    • Sustainable Packaging : No
    • Temperature Copper Hot : 130 °C
    • Maximum In Rated Current : 20.4 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP111049EN
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : servo motor
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=417171194&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111049EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
