servo motor SH3 100 5,8Nm,key,single,brake,str.conn,IP65/IP67,6k RPM

SERVO MOTOR SH3 100 5,8NM,KEY,

SQDSH31002P11F1200 SH31002P11F1200 SQDSH31002P11F1200
0.00 / EA
http://schema.org/OutOfStock

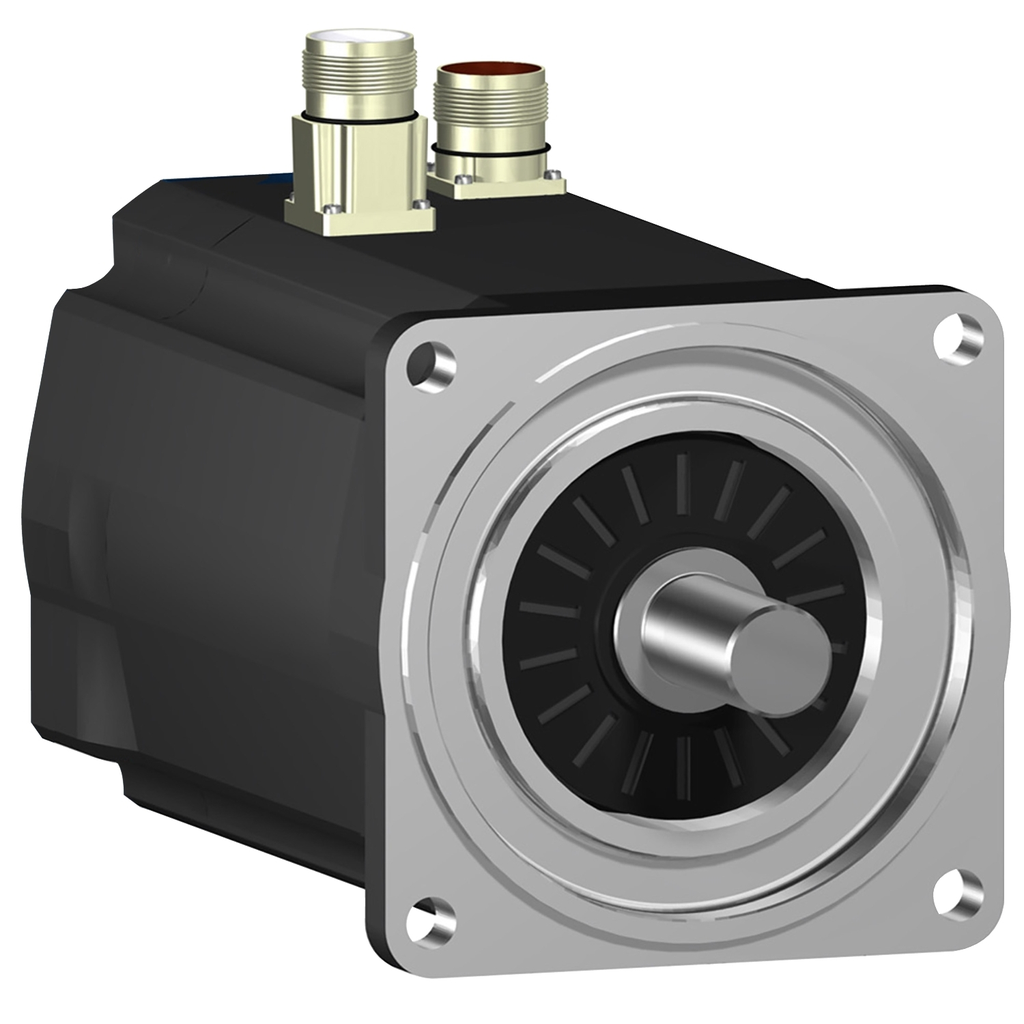

Mayer-DDS-servo motor SH3 100 5,8Nm,key,single,brake,str.conn,IP65/IP67,6k RPM-1
  • Country of Origin: Germany
  • Shaft Diameter: 19 mm
  • Shaft End: Parallel Key
  • Shaft Length: 40 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Nominal Speed
    • 1000 rpm 115 V single phase
    • 2000 rpm 230 V single phase
    • 4000 rpm 400 V three phase
    • 4800 rpm 480 V three phase
  • IP Degree Of Protection
    • IP65 motor: conforming to IEC 60034-5
    • IP65 shaft bushing: conforming to IEC 60034-5
    • IP67 housing: conforming to IEC 60034-5
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Nominal Output Power
    • 580 W 115 V single phase
    • 1090 W 230 V single phase
    • 1930 W 400 V three phase
    • 2210 W 480 V three phase
  • Peak Stall Torque
    • 18.3 N.m 115...480 V three phase
  • Maximum Radial Force FR
    • 990 N 1000 rpm
    • 790 N 2000 rpm
    • 690 N 3000 rpm
    • 620 N 4000 rpm
  • Nominal Torque
    • 5.5 N.m 115 V single phase
    • 5.2 N.m 230 V single phase
    • 4.6 N.m 400 V three phase
    • 4.4 N.m 480 V three phase
    • 4.6 N.m full speed
    • 5.2 N.m half speed
  • Continuous Stall Torque
    • 5.8 N.m 115...480 V three phase
  • Device Short Name
    • SH3
  • Torque Constant
    • 1.21 N.m/A 120 °C
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001494_3D-CAD
  • Physical Attributes
    • Key Width : 6 mm
    • Motor Flange Size : 100 mm
    • Shaft Length : 40 mm
  • Complementary Attributes
    • Maximum Ambient Air Temperature For Operation : 60.0 °C
    • Maximum Current IRMS : 17.1 A
    • Maximum Mechanical Speed : 6000 rpm
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Maximum In Rated Current : 3.8 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Centring Collar Diameter : 95 mm
    • Circle Diameter Of The Mounting Holes : 115 mm
    • Continuous Stall Current : 4.8 A
    • Derating Altitude Scale : 80.0 m
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Scale : 80.0 °C
    • Derating Temperature Start : 40.0 °C
    • Electrical Connection : straight connector
    • Holding Brake : with
    • Holding Torque : 9 N.m
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Motor Figures : 400.0 V
    • Mounting Holes Diameter : 9.0 mm
    • Network Number Of Phases : 3
    • Number Of Motor Poles : 4.0
    • Package Weight Lbs : 7.37 kg
    • Peak Nominal Torque : 18.3 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor
    • Returnability : No
    • Rotor Inertia : 2.928 kg.cm²
    • Shaft Diameter : 19 mm
    • Shaft End : parallel key
    • Sizing Reference : SH31002P
    • Stator Inductance : 6.75 mH
    • Stator Resistance : 2.4 Ohm
    • Sustainable Packaging : No
    • Temperature Copper Hot : 130 °C
    • Maximum In Rated Current : 3.8 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP111049EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : servo motor
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=417170289&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111049EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
