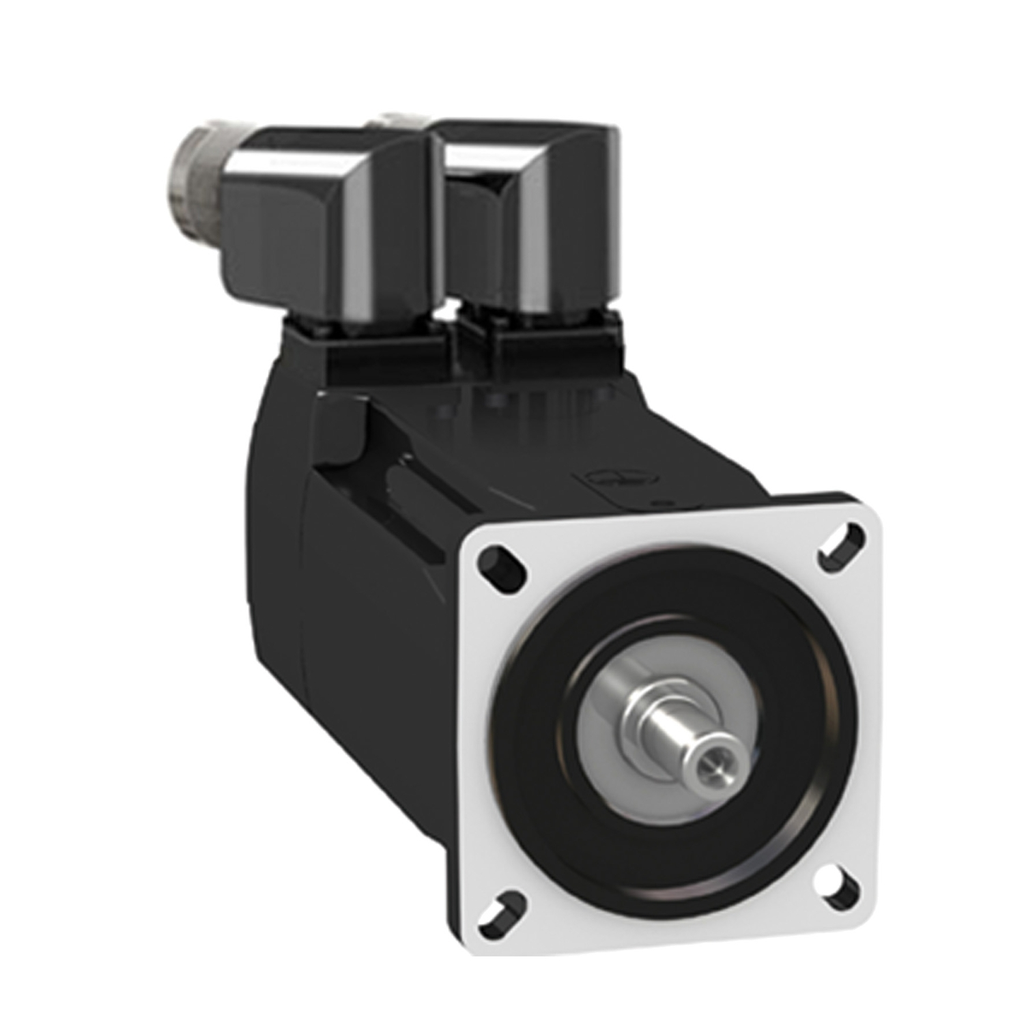

servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM

Name: servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM
Brand: Mayer Electric Supply
SKU: SQDMH30701P06A2200
Availability: OutOfStock

SERVO MOTOR MH3 070 1,4NM,NO K

SQDMH30701P06A2200 MH30701P06A2200 SQDMH30701P06A2200

0.00 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM-1

Country of Origin: Germany
Shaft Diameter: 11 mm
Shaft End: Smooth Shaft
Shaft Length: 23 mm

QTY

Features
Specifications

Nominal Speed

1250 rpm LXM52 1.75 mA, 115 V, single phase
3000 rpm LXM52 1.75 mA, 230 V, sin

https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005333_3D-CAD&p_File_name=MCADID0005333_3D-simplified.stp
https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005333_3D-CAD&p_File_name=MCADID0005333_2D-back.dwg
https://downlo

IP Degree Of Protection

IP65 standard

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0160955036
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.2 kg CO2 eq.
0.1711392701

Nominal Output Power

0.18 W, 115 V
0.42 W, 230 V
0.75 W, 400 V
0.93 W, 480 V

Carbon Footprint Of The Manufacturing Phase A1 To A3

15 kg CO2 eq.
15.172729927

Peak Stall Torque

4.2 N.m, 115...480 V, three phase

Maximum Radial Force FR

660 N 1000 rpm
520 N 2000 rpm
460 N 3000 rpm
410 N 4000 rpm
380 N 5000 rpm
360 N 6000 rpm

Persona Type Names

End User
Original Equipment Manufacturer

Carbon Footprint Of The Use Phase B2 B3 B4 B6

842 kg CO2 eq.
842.4334468352

Persona Type Ids

Nominal Torque

1.38 N.m LXM52 1.75 mA, 115 V, three phase
1.34 N.m LXM52 1.75 mA, 230 V, single p

Carbon Footprint Of The Distribution Phase A4

0.2709459854
0.3 kg CO2 eq.

Continuous Stall Torque

1.4 N.m, 115...480 V, three phase

Device Short Name

Torque Constant

0.79 N.m/A 120 °C

Physical Attributes

Motor Flange Size : 70 mm
Shaft Length : 23 mm

Complementary Attributes

Maximum Ambient Air Temperature For Operation : 60.0 °C
Maximum Current IRMS : 5.97 A
Maximum Mechanical Speed : 8000 rpm
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 1.65 A

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 7/9/2025
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 15.17272993
Distribution Carbon Footprint : 0.270945985
Installation Carbon Footprint : 0.016095504
Use Carbon Footprint : 842.4334468
End Of Life Carbon Footprint : 0.17113927
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Tier Id : 3
Tier : 3
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Centring Collar Diameter : 60 mm
Circle Diameter Of The Mounting Holes : 82 mm
Continuous Stall Current : 1.78 A
Derating Altitude Scale : 80.0 m
Derating Temperature Scale : 80.0 °C
Holding Brake : without
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Motor Figures : 480.0 V
Mounting Holes Diameter : 5.5 mm
Number Of Motor Poles : 5
Package Weight Lbs : 2.1 kg
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Returnability : Yes
Rotor Inertia : 0.59 kg.cm²
Second Shaft : without second shaft end
Shaft Diameter : 11 mm
Shaft End : smooth shaft
Sizing Reference : MH30701P
Stator Electrical Time Constant : 2.8 ms
Stator Inductance : 23.4 mH
Stator Resistance : 8.28 Ohm
Sustainable Packaging : No
Temperature Copper Hot : 135 °C
Total Lifecycle Carbon Footprint : 858 kg CO2 eq.
Maximum In Rated Current : 1.65 A
Carbon Footprint Kg Co2 Eq Total Life Cycle : 858.0643575
Relationship Type : Compatible relationship
Pep Code : ENVPEP111002EN
Pep Verification Date : 8/1/2020
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 2100
Functional Unit Description : To coordinate and synchronize motion control up to 117W during 10 years and a 70% use rate.
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 1719.4298
Energy Model Manufacturing A1 A3 : Energy model used: Germany
Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000341506
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000268291
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1.08E-08
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 6E-10
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 7.31977E-05
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 5.3E-09
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 9651.159857
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 82.90861314
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 3.806671533
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.209012847
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 9562.138165
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2.097394161
Exported Energy Mj By Energy Vector Total Life Cycle : 0.000920858
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 8.65599E-05
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.000834298
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 15.44328646
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 13.01294891
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 7.857E-07
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.43919954
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.991137226
Materials For Energy Recovery Kg Total Life Cycle : 0.001085991
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.001085991
Materials For Recycling Kg Total Life Cycle : 2.117771825
Materials For Recycling Kg Manufacturing A1 A3 : 0.207884672
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.28982146
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 1.620065693
Net Use Of Fresh Water M3 Total Life Cycle : 3054.645912
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.126395475
Net Use Of Fresh Water M3 Distribution A4 : 2.42484E-05
Net Use Of Fresh Water M3 Installation A5 : 1.7547E-06
Net Use Of Fresh Water M3 Operational Energy Use B6 : 3054.519284
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000206324
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3150.493219
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 9.563430657
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.009626584
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.002175876
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3140.90993
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.008055723
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000225812
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000170922
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 5E-10
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 5.48792E-05
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.09E-08
Radioactive Waste Disposed Of Kg Total Life Cycle : 2.103856233
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.006162657
Radioactive Waste Disposed Of Kg Distribution A4 : 6.8564E-06
Radioactive Waste Disposed Of Kg Installation A5 : 0.00000043
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 2.097673908
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 1.23814E-05
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14904.27107
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 211.8792701
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.825985402
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.210223796
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 14685.74499
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.610591241
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 17053.03902
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 221.3154745
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 3.830890511
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.210551825
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 16825.06857
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.613534307
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2148.93434
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.43620438
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.005105606
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00032665
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2139.489773
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002930037
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.870440876
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.870440876
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14902.40099
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 210.0091971
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.825985402
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.210223796
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 14685.74499
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.610591241
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.755839416
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.755839416
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2143.1785
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.680364964
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.005105606
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00032665
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2139.489773
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002930037
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.690578102
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.690578102
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 38823.29768
Air Pollution M3 Manufacturing A1 A3 : 2534.531387
Air Pollution M3 Distribution A4 : 11.52578102
Air Pollution M3 Installation A5 : 0.642477372
Air Pollution M3 Operational Energy Use B6 : 36258.14409
Air Pollution M3 End Of Life C1 C4 : 18.45394161
Water Pollution M3 Total Life Cycle : 35673.15549
Water Pollution M3 Manufacturing A1 A3 : 844.0160584
Water Pollution M3 Distribution A4 : 44.55678832
Water Pollution M3 Installation A5 : 2.445074453
Water Pollution M3 Operational Energy Use B6 : 34762.34607
Water Pollution M3 End Of Life C1 C4 : 19.79150365
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 3.549474563
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.195873774
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.216281015
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.033523358
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.001237099
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 6.71724E-05
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 3.514128157
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000518777
Global Warming Kg Equivalent Co2 Total Life Cycle : 858.0643575
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 15.17272993
Global Warming Kg Equivalent Co2 Distribution A4 : 0.270945985
Global Warming Kg Equivalent Co2 Installation A5 : 0.016095504
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 842.4334468
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.17113927
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.002636834
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 8.82797E-05
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 5.0149E-06
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.193087581
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 5.60654E-05
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.003686496
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.000284941
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 1.63138E-05
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.21217064
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000122625
Warranty In Months : 18

General Attributes

Product Or Component Type : servo motor

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=415514056&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0%
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 858.0643575
Environmental Disclosure : ENVPEP111002EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP111002EN
Pep Verification Date : 8/1/2020
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

Specifications

Country of Origin : Germany

servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM

SERVO MOTOR MH3 070 1,4NM,NO K

characters left.
