servo motor BMI 3-phase - keyed IP54 single turn - 131072 p/t - brake

Name: servo motor BMI 3-phase - keyed IP54 single turn - 131072 p/t - brake
Brand: Mayer Electric Supply
SKU: SQDBMI0702P11F
Price: 2005.98 USD
Availability: OutOfStock

SQDBMI0702P11F BMI0702P11F 3606485375731

2005.98 / EA

http://schema.org/OutOfStock

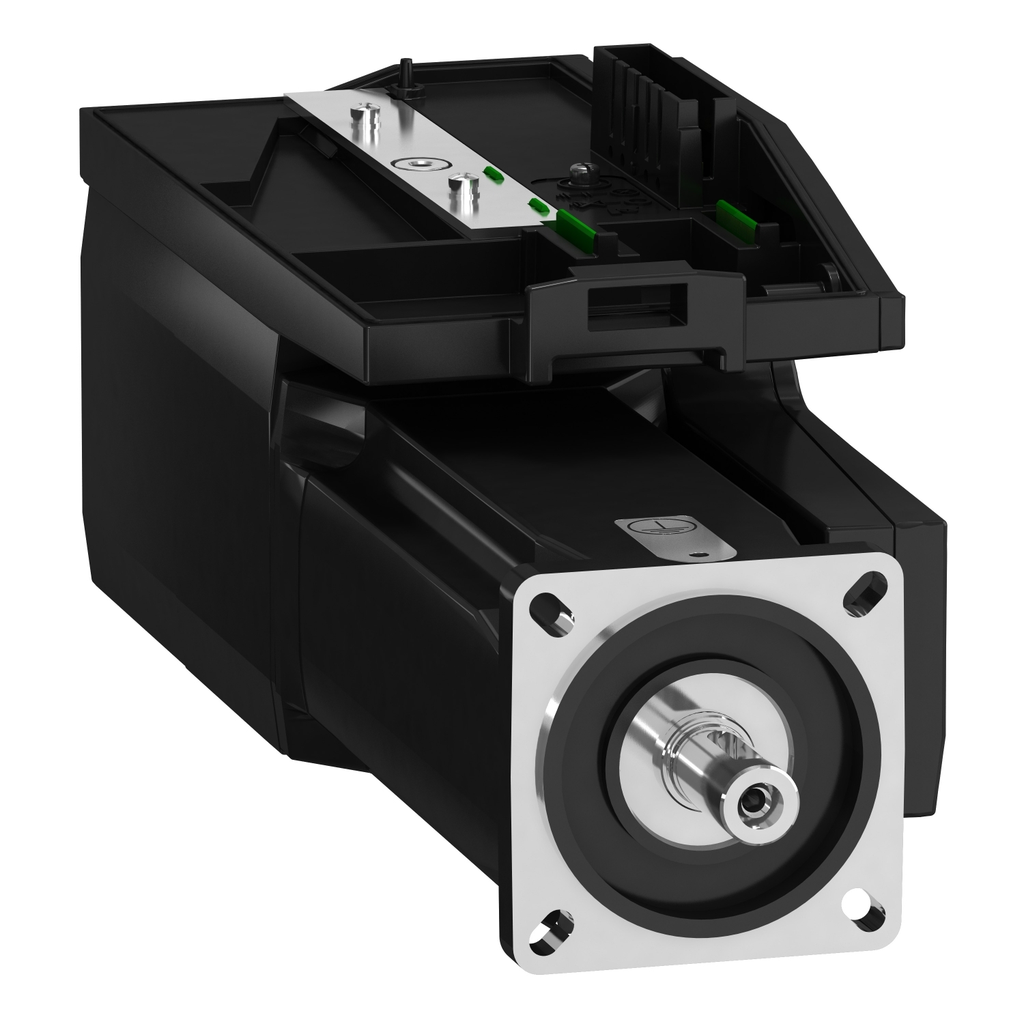

Mayer-DDS-servo motor BMI 3-phase - keyed IP54 single turn - 131072 p/t - brake-1

Country of Origin: Germany
Shaft Diameter: 11 mm
Shaft End: Keyed
Shaft Length: 23 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Output Current 3s Peak

6 A 400 V 3 s

US Rated Supply Voltage

208...480 V - 15...10 %

Nominal Speed

1800 rpm 208 V three phase
3600 rpm 400 V three phase
4400 rpm 480 V three phase

IP Degree Of Protection

shaft IP54
housing IP65

Continuous Output Current

2 A 8 kHz

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power

400 W 208 V three phase
800 W 400 V three phase
900 W 480 V three phase

Peak Stall Torque

6.8 N.m 208 V three phase
6.8 N.m 400 V three phase
6.8 N.m 480 V three phase

Stator Electrical Time Constant

2.9 ms 20 °C

Stator Resistance

8.89 Ohm 20 °C

Maximum Radial Force FR

710 N 1000 rpm
560 N 2000 rpm
490 N 3000 rpm
450 N 4000 rpm
410 N 5000 rpm
390 N 6000 rpm

Stator Inductance

25.75 mH 20 °C

Supply Frequency

50/60 Hz - 5...5 %

Nominal Torque

2.4 N.m 208 V three phase
2.2 N.m 400 V three phase
2 N.m 480 V three phase

Continuous Stall Torque

2.48 N.m 208...480 V three phase

Torque Constant

1.15 N.m/A 20 °C

Holding Torque

3 N.m holding brake

Product Compatibility

drive control unit LXM32i CANopen
drive control unit LXM32i EtherCAT

Maximum Current IRMS

9.6 A 208 V, three phase
9.6 A 400 V, three phase
9.6 A 480 V, three phase

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000237_3D-CAD

Physical Attributes

Key Width : 4 mm
Motor Flange Size : 70 mm
Shaft Length : 23 mm

Complementary Attributes

Maximum Mechanical Speed : 8000 rpm

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 4/6/2025
Device Type : Motion - integrated drive
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1312017EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Brake Pull In Power : 5 W
Centring Collar Diameter : 60 mm
Circle Diameter Of The Mounting Holes : 75-82 mm
Coefficient 1 1 : -8.50000000013E-05 N.m/rpm
Coefficient 1 2 : 0 N.m/rpm²
Coefficient 1 3 : 0 N.m/rpm3
Coefficient 1 4 : 0 N.m/rpm4
Coefficient 1 5 : 0 N.m/rpm5
Coefficient 1 6 : 0 N.m/rpm6
Coefficient 2 0 : 0.04 N.m
Coefficient 2 1 : 1.55000000000008E-05 N.m/rpm
Continuous Stall Current : 2:00 AM
Device Short Name : BMI
Distance Shaft Shoulder Flange : 2.5 mm
Drive Voltage Drop Coefficient : 0.95
Feedback Type : absolute single turn SinCos Hiperface
Field Weakening : FALSE
Holding Brake : with
Motor Voltage Drop Coefficient : 1
Mounting Holes Diameter : 5.5 mm
Network Number Of Phases : 3
Number Of Motor Poles : 10
Number Of Motor Stacks : 2
Package Weight Lbs : 5.4 kg
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor with power stage
Returnability : No
Rotor Inertia : 1.24 kg.cm²
Saturation Coefficient : 0.005
Second Shaft : without second shaft end
Shaft Diameter : 11 mm
Shaft End : keyed
Sizing Reference : BMI0702P
Supply Voltage Description : three phase 208...480 V
Sustainable Packaging : No
Switching Frequency : 8 kHz
Temperature Copper Hot : 135 °C
Temperature Magnet Hot : 20 °C
Temperature Magnet RT : 100 °C
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relationship Type : Compatible relationship
Pep Code : ENVPEP1312017EN
Warranty In Months : 18

General Attributes

Product Or Component Type : servo motor with power stage

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=266680282&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0%
China ROHS Regulation : X
Mercury Free : Yes
Circularity Profile : ENVEOLI1312017EN
Environmental Disclosure : ENVPEP1312017EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP1312017EN

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : Germany
