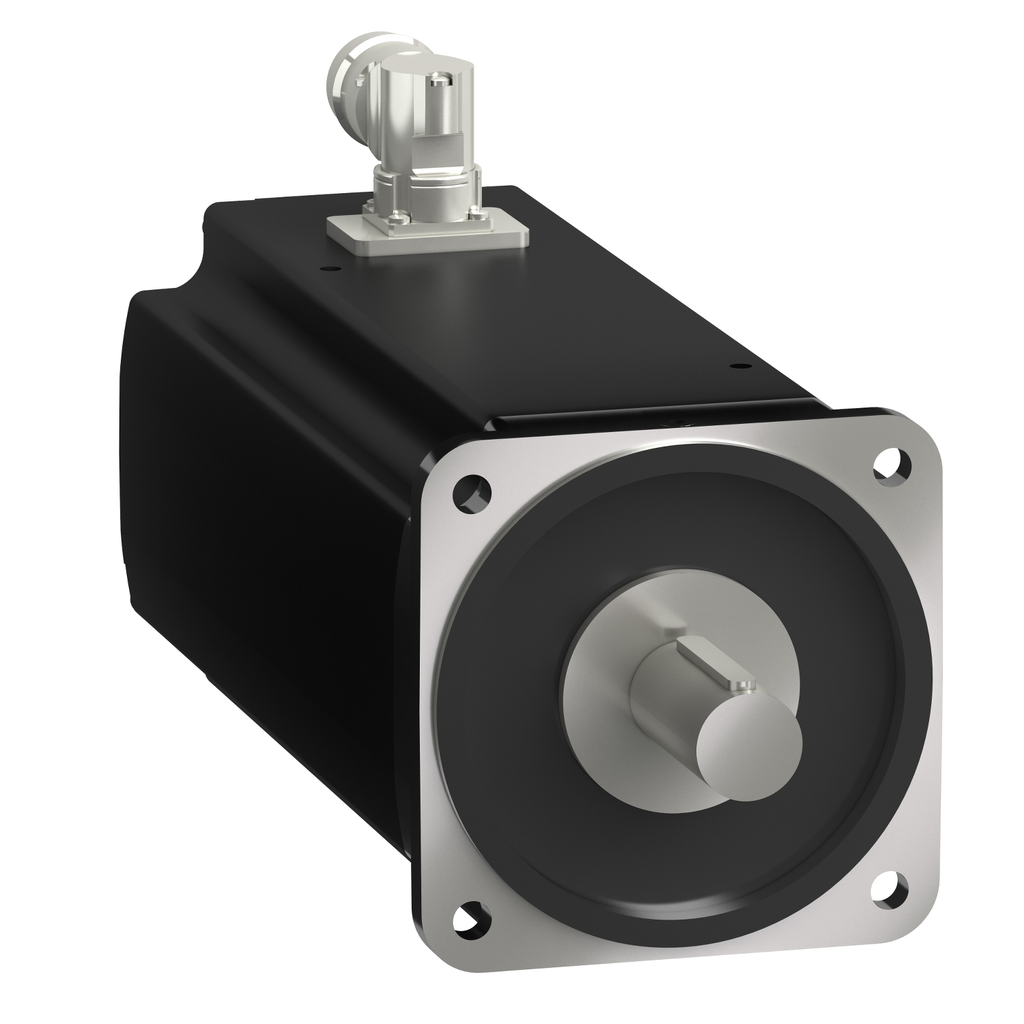

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 3000RPM, a keyed shaft end, with a holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 40A, and a continuous stall torque of 100Nm. Shaft end is IP65 rated, and IP20 with a fan module. The motor flange size is 190mm, fixed by 4x 14mm holes. The circle diameter of the mounting holes is 215mm. It weighs 64.2kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32MC10N4 servo drive. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

• Nominal Speed
• 2000 rpm LXM32MC10N4 40 A, 400 V, three phase
• 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
• IP Degree Of Protection
• IP65 standard
• IP20 with fan module
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.5553404423
• 0.6 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 6 kg CO2 eq.
• 5.8988579853
• Inertia
• 21.5 kg.cm² of brake
• 276.7 kg.cm² of motor
• Nominal Output Power
• 16000 W LXM32MC10N4 40 A, 400 V, three phase
• 16000 W LXM32MC10N4 40 A, 480 V, three phase
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 274 kg CO2 eq.
• 274.0557248157
• Peak Stall Torque
• 230 N.m LXM32MC10N4 40 A, 400 V, three phase
• 230 N.m LXM32MC10N4 40 A, 480 V, three phase
• Stator Electrical Time Constant
• 29.6 ms 20 °C
• Stator Resistance
• 0.16 Ohm 20 °C
• Maximum Radial Force FR
• 3800 N 1000 rpm
• 3700 N 2000 rpm
• 3600 N 3000 rpm
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Stator Inductance
• 2.37 mH 20 °C
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 17 185 kg CO2 eq.
• 17184.8288739172
• Persona Type Ids
• EU
• OM
• OM8
• Nominal Torque
• 46.8 N.m full speed
• 70.87 N.m half speed
• 76.4 N.m LXM32MC10N4 40 A, 400 V, three phase
• 76.4 N.m LXM32MC10N4 40 A, 480 V, three phase
• Carbon Footprint Of The Distribution Phase A4
• 8.0764766585
• 8 kg CO2 eq.
• Continuous Stall Torque
• 100 N.m LXM32MC10N4 40 A, 400 V, three phase
• 100 N.m LXM32MC10N4 40 A, 480 V, three phase
• Device Short Name
• BMH
• Torque Constant
• 2.5 N.m/A 120 °C
• Holding Torque
• 80 N.m holding brake
• Maximum Current IRMS
• 100 A LXM32MC10N4
• 100 A

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000221_3D-CAD
• Physical Attributes
• Key Width : 10 mm
• Motor Flange Size : 190 mm
• Shaft Length : 80 mm
• Complementary Attributes
• Maximum Ambient Air Temperature For Operation : 60.0 °C
• Maximum Mechanical Speed : 3000 rpm
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : -20.0 °C
• Minimum Operational Altitude : 0.0 m
• Maximum In Rated Current : 19.6 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-24
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 274.0557248157
• Distribution Carbon Footprint : 8.0764766585
• Installation Carbon Footprint : 0.5553404423
• Use Carbon Footprint : 17184.8288739172
• End Of Life Carbon Footprint : 5.8988579853
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1905
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Brake Pull In Power : 40 W
• Centring Collar Diameter : 180 mm
• Circle Diameter Of The Mounting Holes : 215 mm
• Coefficient 1 1 : 0.005174 N.m/rpm
• Coefficient 1 2 : -4.418E-05 N.m/rpm²
• Coefficient 1 3 : 8.688E-08 N.m/rpm3
• Coefficient 1 4 : -6.984E-11 N.m/rpm4
• Coefficient 1 5 : 2.309E-14 N.m/rpm5
• Coefficient 1 6 : -2.705E-18 N.m/rpm6
• Coefficient 2 0 : 0 N.m
• Coefficient 2 1 : 0.0016 N.m/rpm
• Continuous Stall Current : 40 A
• Derating Altitude Scale : 80.0 m
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 80.0 °C
• Derating Temperature Start : 40.0 °C
• Feedback Type : single turn SinCos Hiperface
• Holding Brake : with
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : -20.0 °C
• Minimum Operational Altitude : 0.0 m
• Motor Figures : 480.0 V
• Motor Voltage Drop Coefficient : 1
• Mounting Holes Diameter : 14 mm
• Network Number Of Phases : 3
• Number Of Motor Poles : 5.0
• Number Of Motor Stacks : 4
• Package Weight Lbs : 62.600 kg
• Peak Nominal Torque : 230.0 N.m
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : servo motor
• Returnability : No
• Rotor Inertia : 298.2 kg.cm²
• Saturation Coefficient : 0.01857
• Second Shaft : without second shaft end
• Shaft Diameter : 38 mm
• Shaft End : smooth shaft
• Sizing Reference : BMH1904P
• Sustainable Packaging : No
• Temperature Copper Hot : 135 °C
• Temperature Magnet Hot : 130 °C
• Temperature Magnet RT : 20 °C
• Total Lifecycle Carbon Footprint : 17 473 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum In Rated Current : 19.6 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 17473.415273819
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP111049EN
• Pep Verification Date : 2020-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 62600
• Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 35075.04
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Germany
• Energy Model Installation A5 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model Use B6 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0219140625
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0204203661
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000003232
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000214
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0014931953
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000001566
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 197668.1631893143
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2423.1737100737
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 113.4721130221
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 7.1326316953
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 195063.010587103
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 61.3741474201
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0307005319
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0028858292
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0278147027
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1037.434924893
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 967.2238329238
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0001276763
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 8.959094514
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 61.2518697789
• Materials For Energy Recovery Kg Total Life Cycle : 0.3271965111
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.3271965111
• Materials For Recycling Kg Total Life Cycle : 59.8485992629
• Materials For Recycling Kg Manufacturing A1 A3 : 5.9133928747
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 9.7399140049
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 44.1952923833
• Net Use Of Fresh Water M3 Total Life Cycle : 62315.543306541
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 4.9721626536
• Net Use Of Fresh Water M3 Distribution A4 : 0.0007228377
• Net Use Of Fresh Water M3 Installation A5 : 0.0000782961
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 62310.5640038499
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0063389037
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 64330.4599582448
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 257.9442997543
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.2869679361
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.285714398
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 64071.7074109721
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2355651843
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0015566667
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0004368234
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000164
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000017
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0011195014
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000003238
• Radioactive Waste Disposed Of Kg Total Life Cycle : 42.973882642
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.1817476413
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0002043882
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000215386
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 42.791545717
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0003633569
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 304987.8519956507
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5214.7184275184
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 114.0488943489
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 7.1931552826
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 299575.5033686237
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 76.3881498771
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 348954.0135651513
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 5537.4083538084
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 114.2027027027
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 7.2102280098
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 343218.7179980751
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 76.4742825553
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 43966.1901832376
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 322.7206879607
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1521933661
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0170934914
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 43643.2146294514
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0855789681
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 60.1682899263
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 60.1682899263
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 304927.6360251348
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5154.5024570025
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 114.0488943489
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 7.1931552826
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 299575.5033686237
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 76.3881498771
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 192.1143243243
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 192.1143243243
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 43774.0681684956
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 130.5986732187
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1521933661
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0170934914
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 43643.2146294514
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0855789681
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 19.3429385749
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 19.3429385749
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 818740.9559905316
• Air Pollution M3 Manufacturing A1 A3 : 78188.4766584767
• Air Pollution M3 Distribution A4 : 343.5771007371
• Air Pollution M3 Installation A5 : 23.9648796069
• Air Pollution M3 Operational Energy Use B6 : 739641.6939364775
• Air Pollution M3 End Of Life C1 C4 : 543.2434152334
• Water Pollution M3 Total Life Cycle : 731566.9607621912
• Water Pollution M3 Manufacturing A1 A3 : 20432.6707616708
• Water Pollution M3 Distribution A4 : 1328.212039312
• Water Pollution M3 Installation A5 : 83.417960688
• Water Pollution M3 Operational Energy Use B6 : 709120.3464870069
• Water Pollution M3 End Of Life C1 C4 : 602.3135135135
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 72.6517436887
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 4.0228214536
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 4.4449041939
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.9144675676
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.03687786
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0023078174
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 71.6827757459
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0153146978
• Global Warming Kg Equivalent Co2 Total Life Cycle : 17473.415273819
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 274.0557248157
• Global Warming Kg Equivalent Co2 Distribution A4 : 8.0764766585
• Global Warming Kg Equivalent Co2 Installation A5 : 0.5553404423
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 17184.8288739172
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 5.8988579853
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0795035381
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.002631584
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0001726653
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 3.9388723773
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0016412889
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.1038744717
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0084940663
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0006389584
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 4.3280966314
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0038000661
• General Attributes
• Product Or Component Type : servo motor
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=425074623&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 17473.415273819
• Environmental Disclosure : ENVPEP111049EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP111049EN
• Pep Verification Date : 2020-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : Germany
