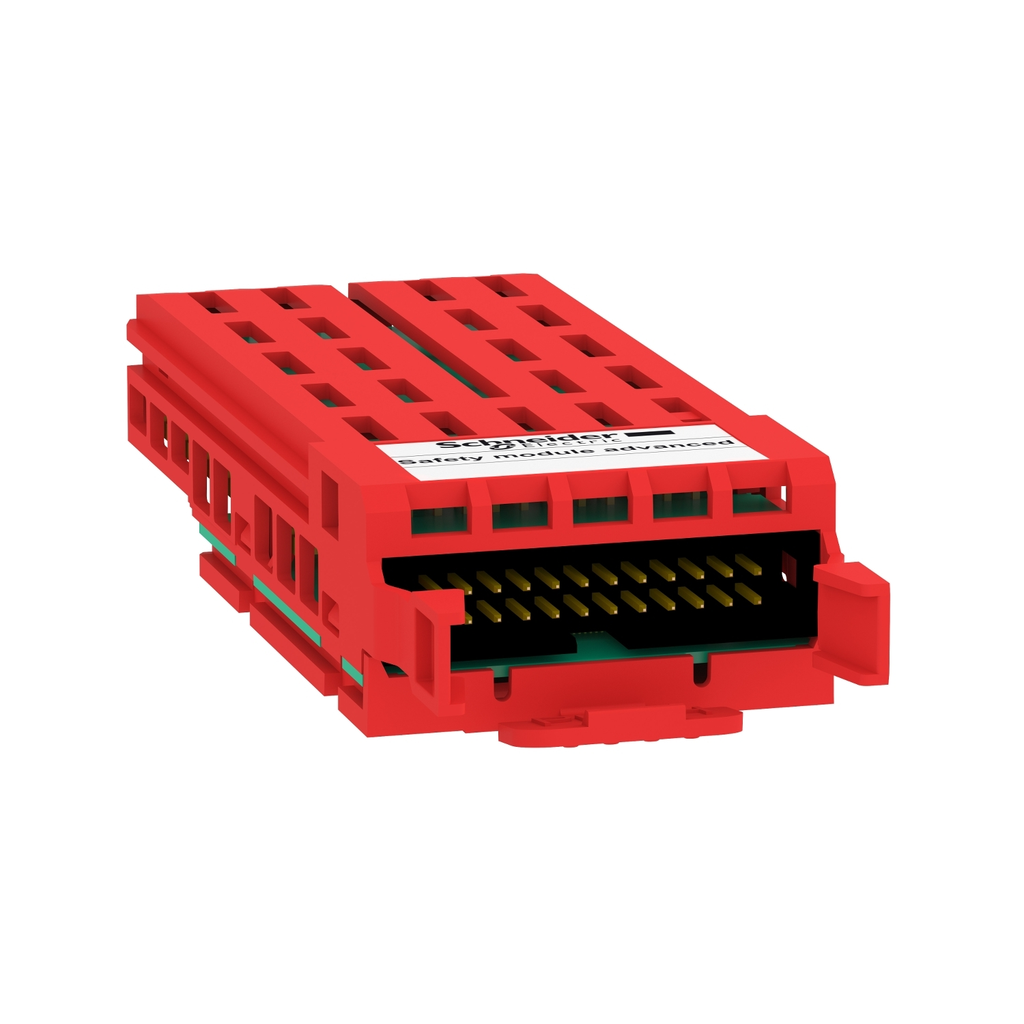

This safety module advanced electronic card is an option for Altivar variable speed drives. This module allows variable speed drives to access additional Safety functions. This creates a complex functional Safety device that helps to provide installation monitoring. It features Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Brake Control (SBC) Safety functions compliant with standard IEC/EN 61800-5-2. In addition, the Safety Module Advanced includes two additional Safety functions: Safe Maximum Speed (SMS) and Guard Door Locking (GDL). Its color is red. The Safety Module Advanced optimizes the overall cost of the installation by avoiding the need for additional external devices, while conforming to international safety standards. Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Brake Control (SBC) Safety functions are compliant with standard IEC/EN 61800-5-2. The Altivar Process Modular offer is designed for easy and cost-effective integration of power-intensive drives into cabinets.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Voltage Drop : <1 V at 0.5 A, <1 V at 0.5 A
• Rated Voltage : 24 V DC - 15...20 %, 24 V DC - 15...20 %, 24 V DC - 15...20 %
• Important Information Attributes
• Inductive Load : 15 H for 100 mA, 15 H for 100 mA, 0.6 H for 500 mA, 0.6 H for 500 mA
• Product Specific Application : material working, material handling, architecture without suspended/vertical or pulling loads
• Range Of Product : Altivar Process ATV900, Altivar Machine ATV340
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-02
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2211035EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Package Weight Lbs : 223.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : safety module
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2211035EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2211035EN
• Environmental Disclosure : ENVPEP2211035EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211035EN
• General Attributes
• Range Of Product : Altivar Process ATV900, Altivar Machine ATV340
• Product Or Component Type : safety module
• Output Attributes
• Output Voltage : 24 V DC, 24 V DC
• Input Attributes
• Input Current : <= 20 mA without load, <= 20 mA without load
