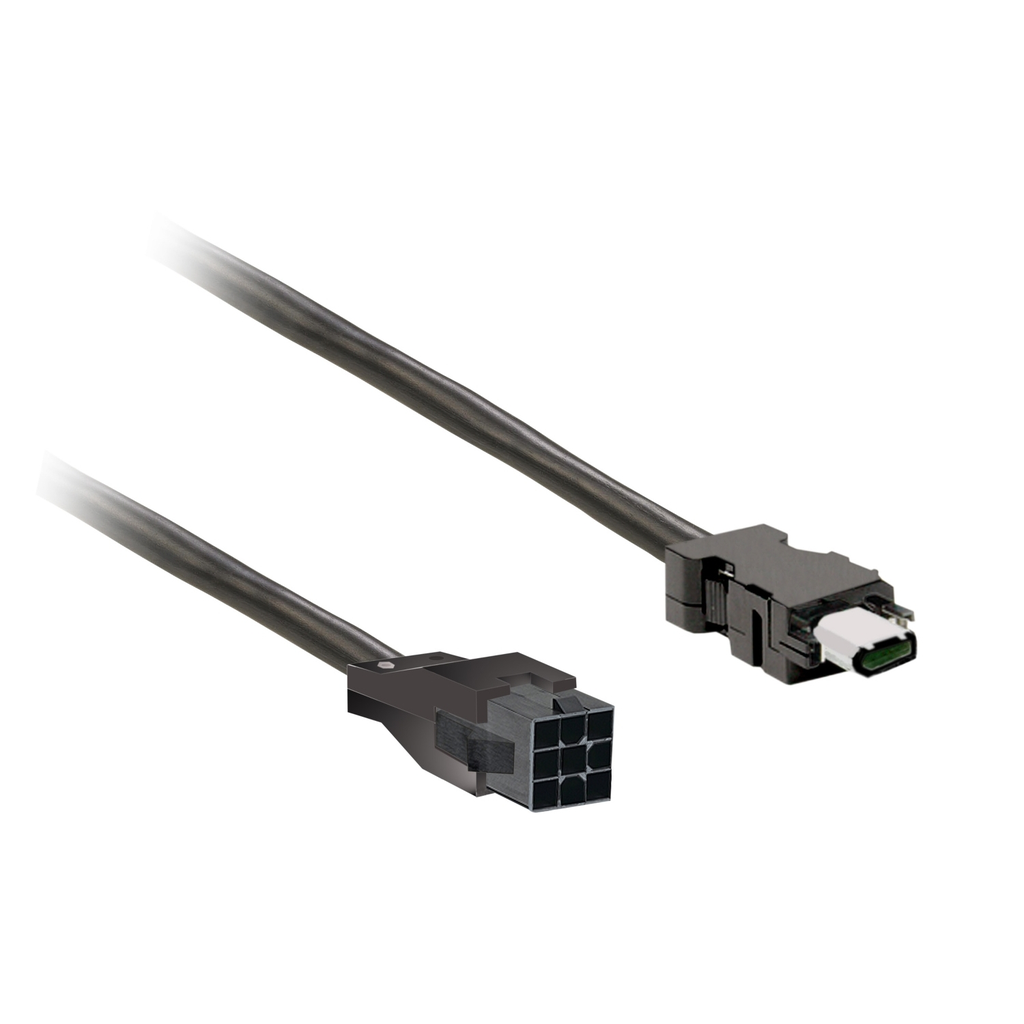

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded power cordset for BCH2 motors without brake. It is equipped with a Molex 4-pin connector (servo motor side) and an open end (servo drive side). The power cable's shield serves as electromagnetic compatibility protection. the AWG gauge of the cable is 4x AWG 18. It measures 5m long and weighs 0.45kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the power connector of BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cable Length : 5 m
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Awg Gauge : 4 x AWG 18
• Electrical Connection : free end servo drive side, connector - Molex 4-pin servo motor side
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Serviceability : No
• Traceability : No
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1901
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power cable
• Range Of Product : Lexium 28
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category : connection accessories
• Accessory Separate Part Destination : between servo motor and servo drive
• Accessory Separate Part Type : preassembled power cordset
• Warranty In Months : 18
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Product Compatibility : servo motor BCH2 50 W 40 mm) without brake), servo motor BCH2 100 W 40 mm) without brake), servo motor BCH2 200 W 60 mm) without brake), servo motor BCH2 400 W 60 mm) without brake), servo motor BCH2 400 W 80 mm) without brake), servo motor BCH2 750 W 80 mm) without brake)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : power cable
• Range Of Product : Lexium 28
• ETIM
• ETIM 8 : EC001576
• ETIM 9 : EC001576
• Specifications
• Country of Origin : Brazil, Switzerland, France, Sweden, Tunisia, United States
