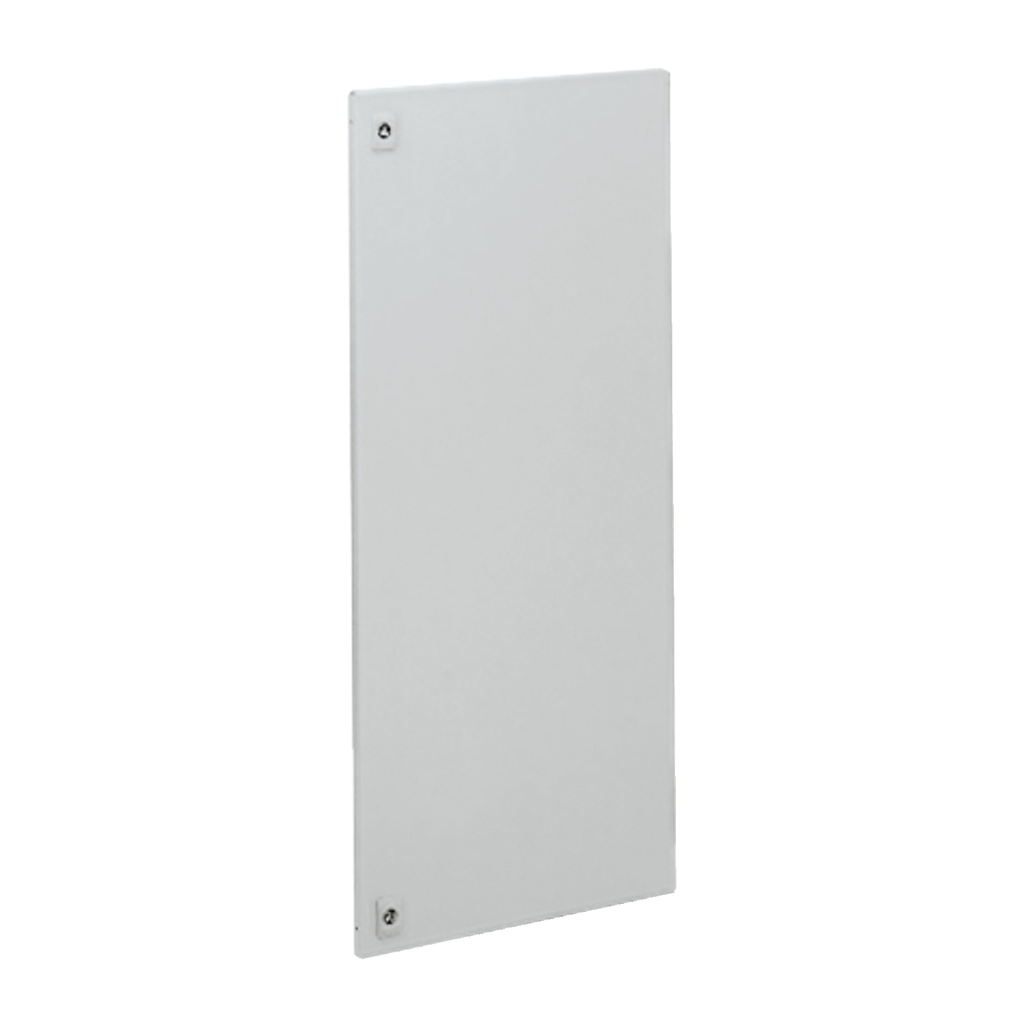

Internal plain door for PanelSeT PLA. The product is to be mounted on front side of the enclosure. The width is 648mm. The height is 398mm. The available depth between enclosure door depth is 30mm. The door is made of aluminium (RAL 7035) and has a degree of IP protection -. Hinges left (110 ° opening angle). The door has 2 locks with 5mm double bar. The door has 2 locks with 5mm double bar.

• Features
• Designed for direct installation in enclosures with sealed bottom part. In the enclosures with the bottom part open
• Performed by ordering the necessary adapter plates, refNSYPTZ.
• Two depthwise mounting positions (two positions for depthwise installation) according to the chosen M8 impressions
• Lock with 5-mm double-bar inserts.
• Not compatible with: Modular distribution chassis, 19" chassis, cable entry plate and door retainer,ref NSYRETPLAU.
• Material: Aluminum
• Color: RAL 7035 grey

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 door, fixing elements, M8 brass inserts
• Enclosure Nominal Dimensions : -, -
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-10
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Door Opening Side : left 110 °)
• Door Type : internal plain
• Energy Efficiency Optimized : False
• Lock Type : lock 5 mm double bar
• Material : aluminium
• Mounting Location : front side
• Package Weight Lbs : 2.9 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : door
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Accessory Separate Part Category2 : enclosure accessory
• Medium Desc : internal door for PLA enclosure H500xW750 mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1105005EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1105005EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1105005EN
• General Attributes
• Product Or Component Type : door
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
