• Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0 kg CO2 eq.
    • 0.02041600528212811
  • Stator Resistance
    • 2.7 Ohm 20 °C Ph/Ph
    • 1.88 Ohm 120 °C Ph/N
  • Stator Inductance
    • 13 mH 20 °C Ph/Ph
    • 6.5 mH 120 °C Ph/N
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0
    • 0 kg CO2 eq.
  • Torque Constant
    • 0.76 N.m/A 120 °C
  • Holding Torque
    • 3 N.m holding brake
  • Maximum Radial Force Fr
    • 730 N 1000 rpm
    • 580 N 2000 rpm
    • 510 N 3000 rpm
    • 460 N 4000 rpm
    • 430 N 5000 rpm
    • 400 N 6000 rpm
  • Physical Attributes
    • Key Width : 20 mm
    • Motor Flange Size : 70 mm
    • Shaft Length : 30 mm
  • Complementary Attributes
    • Line Rated Current : 1.5 A
    • Maximum Axial Force Fa : 0.2 x Fr
    • Maximum Current Irms : 12 A
    • Us Rated Supply Voltage : 250...700 V
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : Motion - integrated drive
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 2.04160052821281e-02
    • Distribution Carbon Footprint : 0
    • Installation Carbon Footprint : 0
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409011EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1901
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Centring Collar Diameter : 60 mm
    • Circle Diameter Of The Mounting Holes : 82 mm
    • Continuous Stall Current : 3 A
    • Continuous Stall Torque : 2.2 N.m
    • Device Short Name : ILM
    • Feedback Type : absolute single turn SinCos Hiperface
    • Holding Brake : with
    • Mounting Holes Diameter : 5.5 mm
    • Mounting Support : international standard flange
    • Nominal Speed : 6000 rpm
    • Nominal Torque : 1.15 N.m
    • Number Of Motor Poles : 6
    • Number Of Motor Stacks : 3
    • Number Of Mounting Holes : 4
    • Package Weight Lbs : 5.2 kg
    • Peak Stall Torque : 8.7 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility

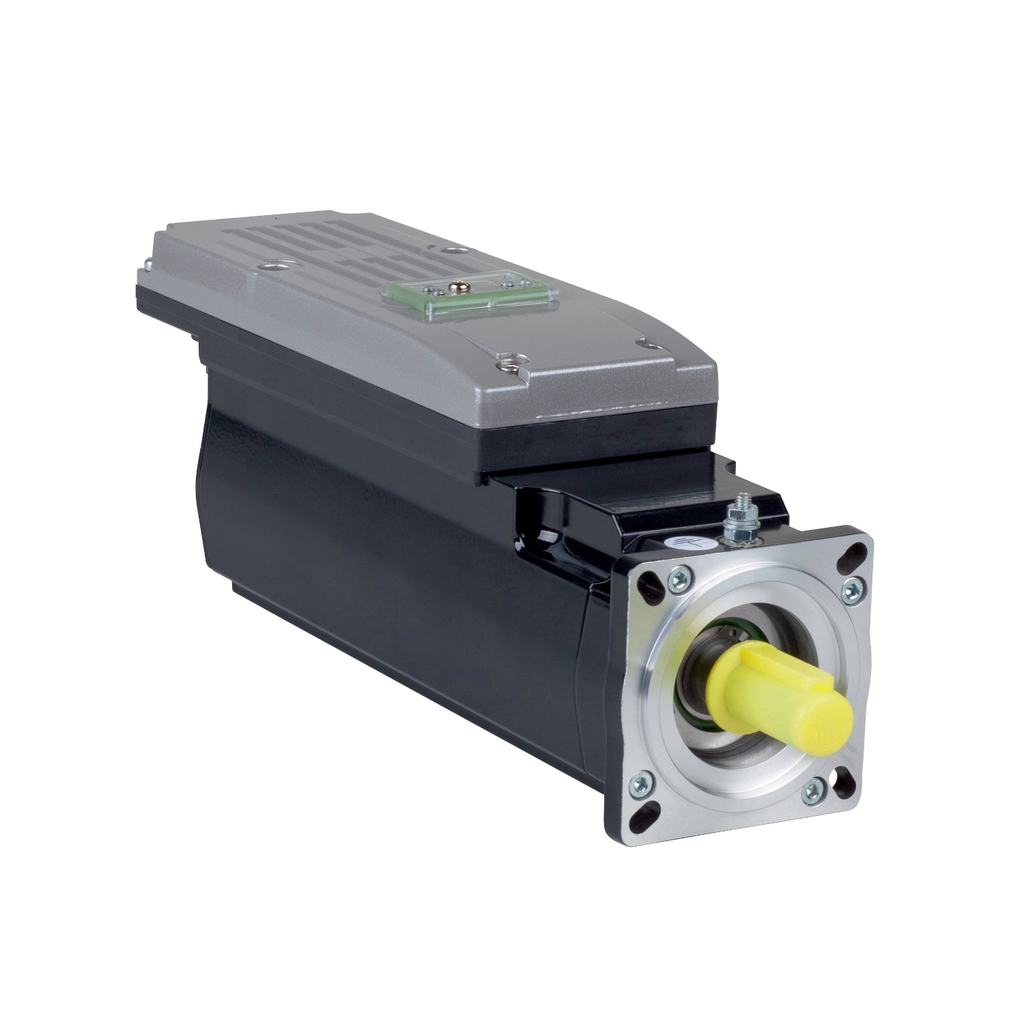

    • Product Or Component Type : servo motor integrated drive
    • Range Of Product : PacDrive 3
    • Returnability : Yes
    • Rotor Inertia : 0.88 kg.cm²
    • Second Shaft : without second shaft end
    • Shaft Diameter : 14 mm
    • Shaft End : keyed
    • Speed Feedback Resolution : 128 periods
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0 kg CO2 eq.
    • Type Of Cooling : natural convection
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.02041600528212811
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : servo motor integrated drive
    • Range Of Product : PacDrive 3
  • Output Attributes
    • Nominal Output Power : 720 W
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=415347480&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 2.04160052821281e-02
    • Circularity Profile : ENVEOLI1409011EN
    • Environmental Disclosure : ENVPEP1409011EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP54
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Germany
    • Length : 11.54 in
