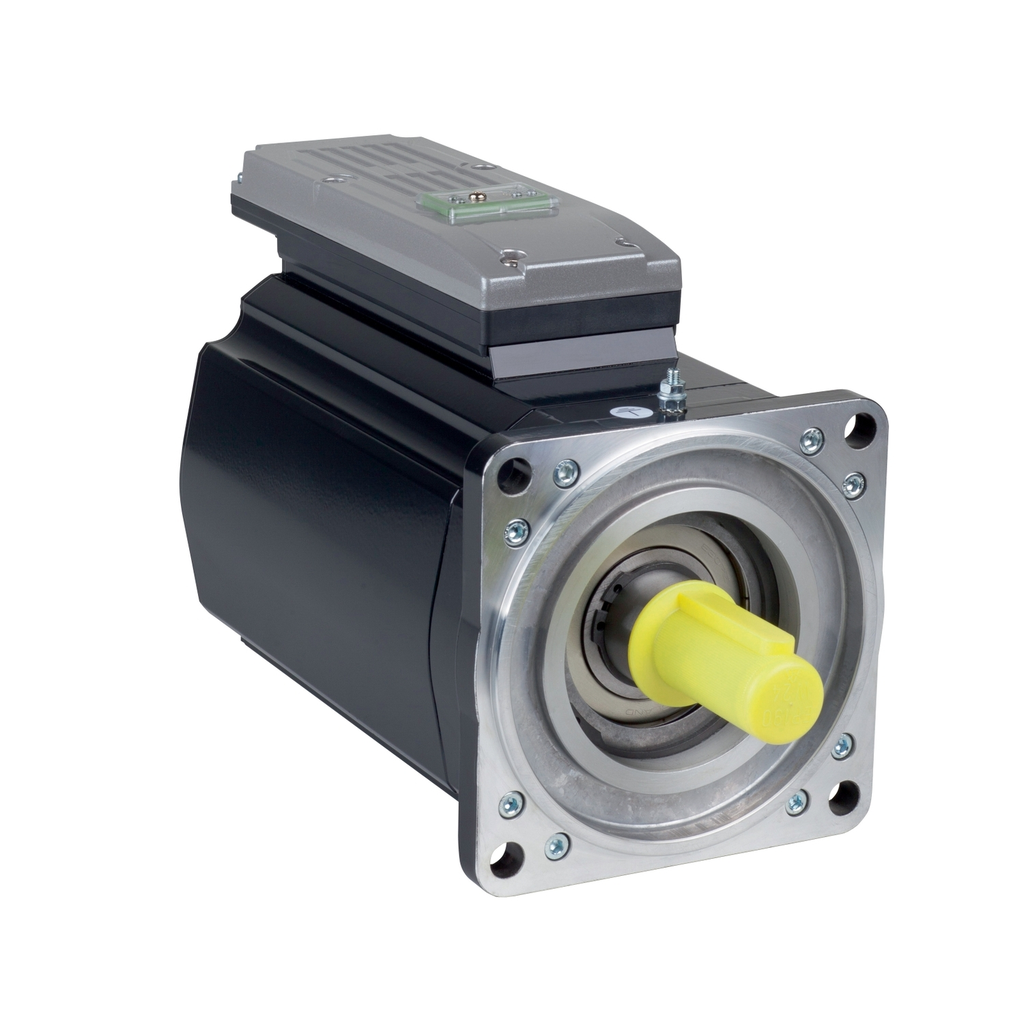

integrated servo motor - 12.5 Nm - 2000 rpm - keyed shaft - with brake - IP65

INTEGRATED SERVO MOTOR - 12.5

SQDILM1402P31F0000 SQDILM1402P31F0000
0.00 / EA
http://schema.org/OutOfStock
  • Length: 347 mm
  • Line Rated Current: 3.7 A
  • Mounting Hole Size: 11 mm, 165 mm
  • Net Weight: 18.5 kg
  • Number of Holes: 4
  • Number of Poles: 10
  • Shaft Length: 50 mm
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Ip Degree Of Protection : IP65
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1409011EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1409011EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Circle Diameter Of The Mounting Holes : 165 mm
    • Holding Torque : 23 N.m holding brake
    • Maximum Radial Force Fr : 2430 N 1000 rpm || 1930 N 2000 rpm
    • Mounting Support : international standard flange
    • Nominal Torque : 9.1 N.m
    • Number Of Motor Stacks : 2
    • Rotor Inertia : 12.68 kg.cm²
    • Number Of Motor Poles : 10
    • Back Emf Constant : 173 V/krpm 20 °C
    • Continuous Stall Torque : 12.5 N.m
    • Maximum Axial Force Fa : 0.2 x Fr
    • Centring Collar Depth : 3.5 mm
    • Holding Brake : with
    • Speed Feedback Resolution : 128 periods
    • Second Shaft : without second shaft end
    • Shaft Length : 50 mm
    • Nominal Output Power : 1910 W
    • Length : 347 mm
    • Net Weight : 18.5 kg
    • Centring Collar Diameter : 130 mm
    • Stator Inductance : 22 mH 20 °C Ph/Ph || 11 mH 120 °C Ph/N
    • Maximum Current Irms : 24 A
    • Motor Flange Size : 140 mm
    • [Us] Rated Supply Voltage : 250...700 V
    • Number Of Mounting Holes : 4
    • Shaft Diameter : 24 mm
    • Key Width : 40 mm
    • Mounting Holes Diameter : 11 mm
    • Type Of Cooling : natural convection
    • Shaft End : keyed
    • Nominal Speed : 2000 rpm
    • Peak Stall Torque : 55 N.m
    • Feedback Type : absolute single turn SinCos Hiperface
    • Stator Resistance : 1.9 Ohm 20 °C Ph/Ph || 1.32 Ohm 120 °C Ph/N
    • Line Rated Current : 3.7 A
    • Continuous Stall Current : 4.8 A
    • Torque Constant : 2.6 N.m/A 120 °C
  • Specifications
    • Range Of Product : PacDrive 3
    • Product Or Component Type : servo motor integrated drive
    • Device Short Name : ILM
