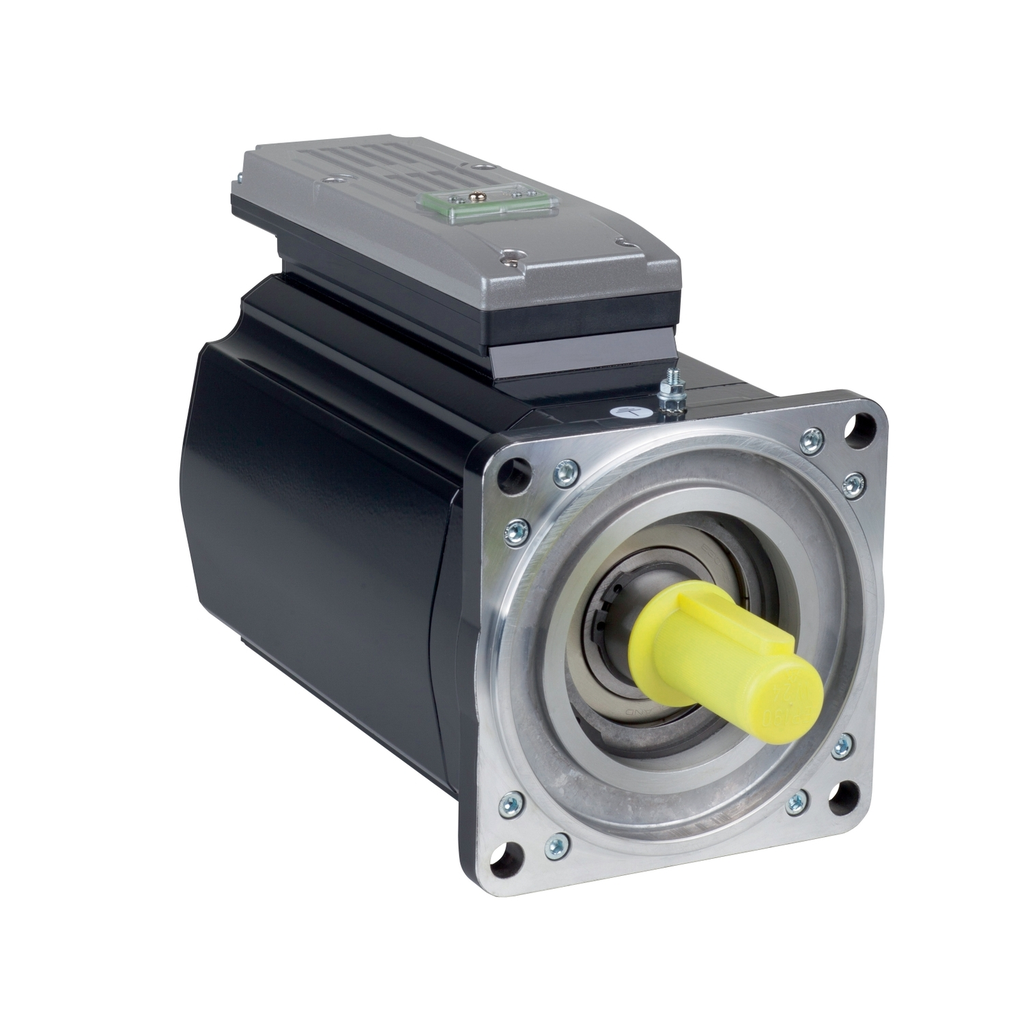

This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 10-pole integrated servo motor features 2 stacks with a maximum mechanical speed of 2000RPM, a continuous rated stall torque 12.5Nm and IP65 parallel keyed. It is an equipped with a multi-turn SinCos Hiperface® absolute encoder (128 periods per revolution) with holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 4.8A and a maximum continuous power of 1.91kW. The shaft dimensions are 24mm (diameter) x 50mm (length). It is an IP65 rated product. The length of this product is 347mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 18.5kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 140mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
- Environment
- Ip Degree Of Protection : IP65
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1409011EN
- Sustainable Offer Status : Green Premium product
- Pvc Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1409011EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Circle Diameter Of The Mounting Holes : 165 mm
- Holding Torque : 23 N.m holding brake
- Maximum Radial Force Fr : 2430 N 1000 rpm || 1930 N 2000 rpm
- Mounting Support : international standard flange
- Nominal Torque : 9.1 N.m
- Number Of Motor Stacks : 2
- Rotor Inertia : 12.68 kg.cm²
- Number Of Motor Poles : 10
- Back Emf Constant : 173 V/krpm 20 °C
- Continuous Stall Torque : 12.5 N.m
- Maximum Axial Force Fa : 0.2 x Fr
- Centring Collar Depth : 3.5 mm
- Holding Brake : with
- Speed Feedback Resolution : 128 periods
- Second Shaft : without second shaft end
- Shaft Length : 50 mm
- Nominal Output Power : 1910 W
- Length : 347 mm
- Net Weight : 18.5 kg
- Centring Collar Diameter : 130 mm
- Stator Inductance : 22 mH 20 °C Ph/Ph || 11 mH 120 °C Ph/N
- Maximum Current Irms : 24 A
- Motor Flange Size : 140 mm
- [Us] Rated Supply Voltage : 250...700 V
- Number Of Mounting Holes : 4
- Shaft Diameter : 24 mm
- Key Width : 40 mm
- Mounting Holes Diameter : 11 mm
- Type Of Cooling : natural convection
- Shaft End : keyed
- Nominal Speed : 2000 rpm
- Peak Stall Torque : 55 N.m
- Feedback Type : absolute multiturn SinCos Hiperface
- Stator Resistance : 1.9 Ohm 20 °C Ph/Ph || 1.32 Ohm 120 °C Ph/N
- Line Rated Current : 3.7 A
- Continuous Stall Current : 4.8 A
- Torque Constant : 2.6 N.m/A 120 °C
- Specifications
- Range Of Product : PacDrive 3
- Product Or Component Type : servo motor integrated drive
- Device Short Name : ILM
