integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A

integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A

SQDILS1V573PB1A0 ILS1V573PB1A0 3389119227728
1200.19 / EA
http://schema.org/OutOfStock

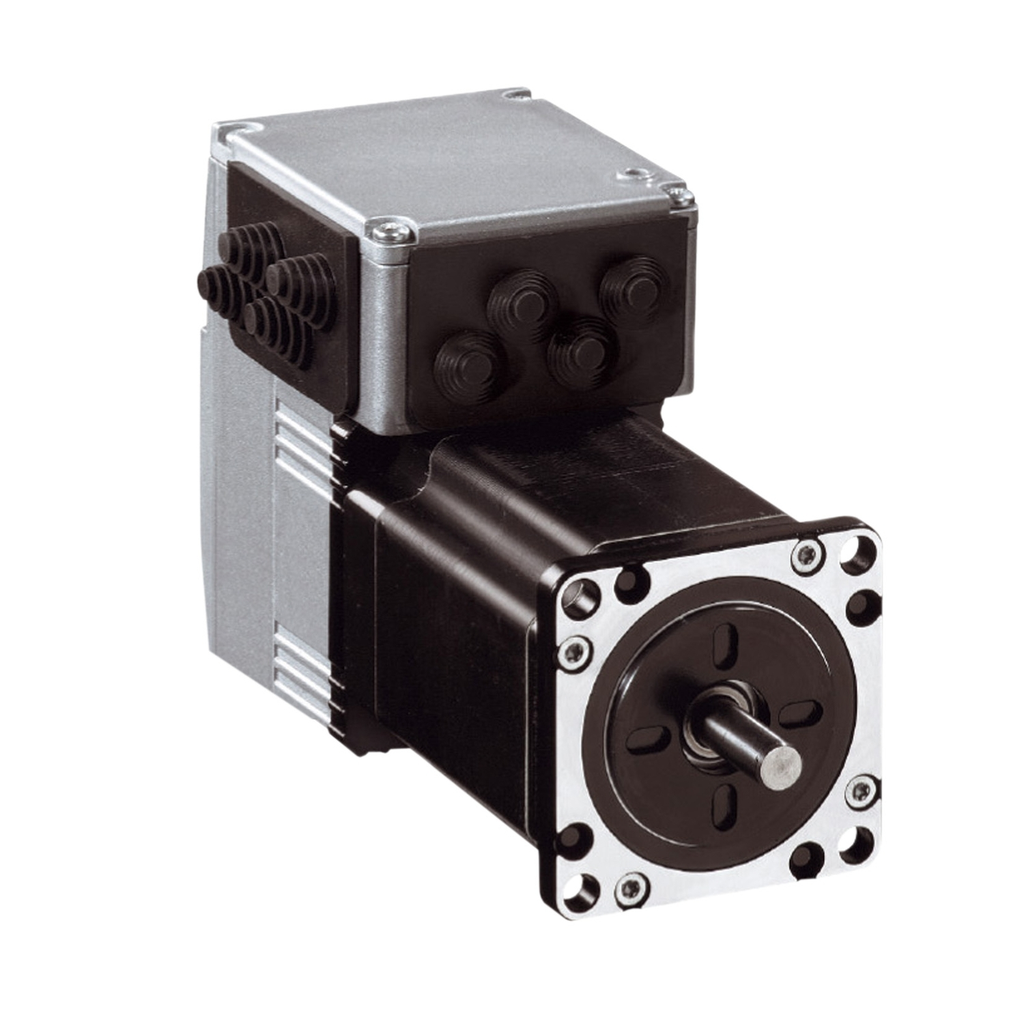

Mayer-DDS-integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A-1
  • Shaft Diameter: 8 mm
  • Shaft End: Untapped
  • Shaft Length: 21 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Interface : pulse/direction 5 V without RS422, Integrated, pulse/direction 5 V without RS422, Integrated
  • Physical Attributes
    • Motor Flange Size : 57 mm
    • Shaft Length : 21 mm
  • Complementary Attributes
    • Maximum Axial Force FA : 100 N tensile force), 100 N tensile force), 8.4 N force pressure), 8.4 N force pressure)
    • Maximum Switching Current : 100 mA per output, 100 mA per output, 200 mA total, 200 mA total
    • Maximum Mechanical Speed : 3000 rpm
    • Maximum Radial Force FR : 50 N
  • Important Information Attributes
    • Current Consumption : 3500 mA maximum continuous, 3500 mA maximum continuous
    • Nominal Speed : 200 rpm 24 V, 200 rpm 24 V, 500 rpm 36 V, 500 rpm 36 V
    • Service Life In Hours : 20000 h bearing, 20000 h bearing
    • Shock Resistance : 150 m/s² 1000 shocks IEC 60068-2-29, 150 m/s² 1000 shocks IEC 60068-2-29, 150 m/s² 1000 shocks IEC 60068-2-29
    • Speed Feedback Resolution : 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
    • Supply Voltage Description : single phase 24 V DC, single phase 36 V DC
    • Vibration Resistance : 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6, 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6, 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6, 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.2723668414, 0.3 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.2266095708
    • Carbon Footprint Of The Installation Phase A5 : 0.0131790986, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 11.6404008499
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 375 kg CO2 eq., 375.112716763
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Device Type : Motion - integrated drive
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1411002EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Centring Collar Diameter : 38.1 mm
    • Circle Diameter Of The Mounting Holes : 66.6 mm
    • Coefficient 1 0 : 33.107 N.m
    • Coefficient 1 1 : -28.858 N.m/rpm
    • Coefficient 1 2 : 8.537 N.m/rpm²
    • Coefficient 1 3 : -0.855 N.m/rpm3
    • Coefficient 2 0 : 57.712 N.m
    • Coefficient 2 1 : -48.402 N.m/rpm
    • Coefficient 2 2 : 13.914 N.m/rpm²
    • Coefficient 2 3 : -1.367 N.m/rpm3
    • Compatibility Code : ILS
    • Curve Type : semilog
    • Device Short Name : ILS
    • Feedback Type : index pulse
    • Gear Box Type : without
    • Holding Brake : without
    • Holding Torque : 1.7 N.m
    • Mounting Holes Diameter : 5.2 mm
    • Network Type : DC
    • Nominal Torque : 1.5 N.m
    • Package Weight Lbs : 2.111 kg
    • Peak Stall Torque : 1.5 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : motion integrated drive
    • Range Of Product : Lexium integrated drive
    • Returnability : No
    • Second Shaft : without second shaft end
    • Shaft Diameter : 8 mm
    • Shaft End : untapped
    • Sizing Reference : ILS1_573P
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 387 kg CO2 eq.
    • Voltage 1 : 24 V
    • Voltage 1 Speed 1 : 197.176 rpm
    • Voltage 1 Speed 1 Max : 197.176 rpm
    • Voltage 2 : 36 V
    • Voltage 2 Speed 2 : 520.968 rpm
    • Voltage 2 Speed 2 Max : 520.968 rpm
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Winding Type : medium speed of rotation and medium torque
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1411002EN
    • Pep Verification Date : 2020-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To coordinate and synchronize motion control with stepper, servo or burshless DC motor 70% of the time for 10 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 50-65 °C (with power derating of 2 % per °C), 50-65 °C (with power derating of 2 % per °C), 0-50 °C (without derating), 0-50 °C (without derating)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP41 shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5, IP54 total except shaft bushing: conforming to IEC 60034-5, IP54 total except shaft bushing: conforming to IEC 60034-5, IP54 total except shaft bushing: conforming to IEC 60034-5
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    • Permissible Ambient Air Temperature Around The Device : 105 °C power amplifier, 105 °C power amplifier, 110 °C motor, 110 °C motor
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 15-85 % without condensation, 15-85 % without condensation
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 387.2652731236
    • Circularity Profile : ENVEOLI1411002EN
    • Environmental Disclosure : ENVPEP1411002EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP1411002EN
    • Pep Verification Date : 2020-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : motion integrated drive
    • Range Of Product : Lexium integrated drive
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Current : 10-10 mA at 24 V safety input, 10-10 mA at 24 V safety input, 10-10 mA at 24 V safety input
