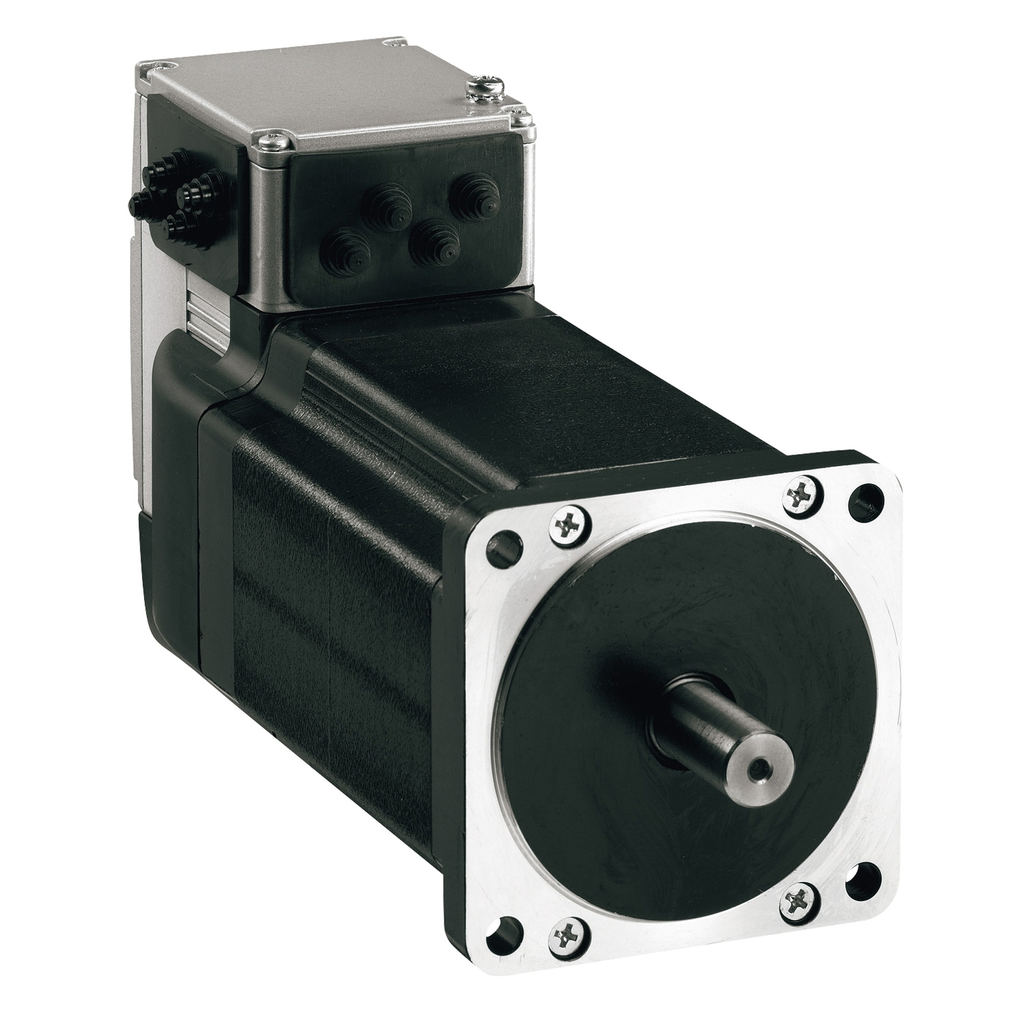

integrated drive ILS with stepper motor - 24..36 V - pulse/direction 24 V - 5 A

Name: integrated drive ILS with stepper motor - 24..36 V - pulse/direction 24 V - 5 A
Brand: Mayer Electric Supply
SKU: SQDILS1U851PB1F0
Price: 1917.84 USD
Availability: OutOfStock

INTEGRATED DRIVE ILS WITH STEP

SQDILS1U851PB1F0 ILS1U851PB1F0 3389119227636

1917.84 / EA

http://schema.org/OutOfStock

Mayer-DDS-integrated drive ILS with stepper motor - 24..36 V - pulse/direction 24 V - 5 A-1

Country of Origin: Germany
Length: 7.37 in
Motor Type: 3-phase Stepper Motor
Shaft Diameter: 12 mm
Shaft End: Untapped
Shaft Length: 30 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Supply Voltage Description

single phase 24 V DC
single phase 36 V DC

Communication Interface

pulse/direction 24 V, Integrated

Current Consumption

5000 mA maximum continuous

Nominal Speed

200 rpm 24 V
400 rpm 36 V

Discrete Input Current

10-10 mA at 24 V safety input

Speed Feedback Resolution

1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°
200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0274694618
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.5 kg CO2 eq.
0.4723269122

Standards

EN 61800-3 : 2001-02
IEC 60072-1
IEC 50347
IEC 50178
EN 61800-3:2001, second environment
IEC 61800-3
IEC 61800-3, Ed 2

Ip Degree Of Protection

IP41 shaft bushing: conforming to IEC 60034-5
IP54 total except shaft bushing: conforming to IEC 60034-5
IP54 total except shaft bushing: conforming to IEC 60034-

Carbon Footprint Of The Manufacturing Phase A1 To A3

24 kg CO2 eq.
24.2623229462

Maximum Switching Current

100 mA per output
200 mA total

Protection Type

short circuit of the output voltage
safe torque off
overload of output voltage

Accessories

VW3L10000N10
VW3L10100N2

Vibration Resistance

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Carbon Footprint Of The Use Phase B2 B3 B4 B6

436 kg CO2 eq.
435.7144508671

Relative Humidity

15-85 % without condensation

Us Rated Supply Voltage

24 V
36 V

Service Life In Hours

20000 h bearing

Maximum Axial Force Fa

170 N tensile force)
30 N force pressure)

Carbon Footprint Of The Distribution Phase A4

0.5676997167
0.6 kg CO2 eq.

Operating Altitude

<= 3280.84 ft (1000 m) without derating

Shock Resistance

150 m/s² 1000 shocks IEC 60068-2-29

Holding Torque

6 N.m holding brake
2 N.m

Ambient Air Temperature For Operation

50-65 °C (with power derating of 2 % per °C)
0-50 °C (without derating)

Permissible Ambient Air Temperature Around The Device

105 °C power amplifier
110 °C motor

Product Certifications

TÜV
UL
cUL

Physical Attributes

Motor Flange Size : 85 mm
Shaft Length : 30 mm

Complementary Attributes

Maximum Mechanical Speed : 2000 rpm
Maximum Radial Force Fr : 100 N

Important Information Attributes

Country Id : US
Local Data Status : Publishable
Local Publishable Date : 2025-04-05
ETIM 10 : EC001851
Device Type : Motion - integrated drive
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 24.2623229462
Distribution Carbon Footprint : 0.5676997167
Installation Carbon Footprint : 0.0274694618
Use Carbon Footprint : 435.7144508671
End Of Life Carbon Footprint : 0.4723269122
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1411002EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS Eur In Scope : No
ROHS Eur Status : Compliant with Exemptions
ROHS Eur Conformity Date : 1907
ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Associated Fuse Rating : 10 A
Brake Application Time : 20 ms
Brake Pull In Power : 22 W
Brake Release Time : 40 ms
Centring Collar Diameter : 60 mm
Circle Diameter Of The Mounting Holes : 99 mm
Coefficient 1 0 : 8.711 N.m
Coefficient 1 1 : -1.371 N.m/rpm
Coefficient 1 2 : -1.429 N.m/rpm²
Coefficient 1 3 : 0.317 N.m/rpm3
Coefficient 2 0 : 10.68 N.m
Coefficient 2 1 : 1.559 N.m/rpm
Coefficient 2 2 : -3.427 N.m/rpm²
Coefficient 2 3 : 0.606 N.m/rpm3
Compatibility Code : ILS
Continuous Stall Torque : 2 N.m
Curve Type : semilog
Device Short Name : ILS
Electrical Connection : printed circuit board connector
Feedback Type : index pulse
Gear Box Type : without
Holding Brake : with
Marking : CE
Motor Type : 3-phase stepper motor
Mounting Holes Diameter : 6.5 mm
Mounting Support : flange
Network Number Of Phases : 1
Network Type : DC
Nominal Torque : 2 N.m
Number Of Motor Poles : 6
Number Of Motor Stacks : 1
Number Of Mounting Holes : 4
Package Weight Lbs : 3.4 kg
Peak Stall Torque : 2 N.m
Phase : single phase
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : motion integrated drive
Range Of Product : Lexium integrated drive
Returnability : No
Rotor Inertia : 1.3 kg.cm²
Second Shaft : without second shaft end
Shaft Diameter : 12 mm
Shaft End : untapped
Sizing Reference : ILS1_851P
Supply Voltage Limits : 18-40 V
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 461 kg CO2 eq.
Type Of Cooling : natural convection
Voltage 1 : 24 V
Voltage 1 Speed 1 : 178.172 rpm
Voltage 1 Speed 1 Max : 178.172 rpm
Voltage 2 : 36 V
Voltage 2 Speed 2 : 456.095 rpm
Voltage 2 Speed 2 Max : 456.095 rpm
Voltage State 0 Guaranteed : -3...4.5 V
Voltage State 1 Guaranteed : 15...30 V
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Winding Type : medium speed of rotation and medium torque
Carbon Footprint Kg Co2 Eq Total Life Cycle : 461.0442699039
Relationshiptype : Compatible relationship

General Attributes

Phase : single phase
Product Or Component Type : motion integrated drive
Range Of Product : Lexium integrated drive

Output Attributes

Discrete Output Voltage : 23...25 V

Environment Attributes

ROHS Exemption Information : Yes
China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=792780&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 461.0442699039
Ambient Air Temperature For Storage : -25-70 °C
Circularity Profile : ENVEOLI1411002EN
Environmental Disclosure : ENVPEP1411002EN
Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Input Attributes

Input Output Type : 4 signals (each be used as input or output)

Specifications

Country of Origin : Germany
Length : 7.37 in

integrated drive ILS with stepper motor - 24..36 V - pulse/direction 24 V - 5 A

INTEGRATED DRIVE ILS WITH STEP
