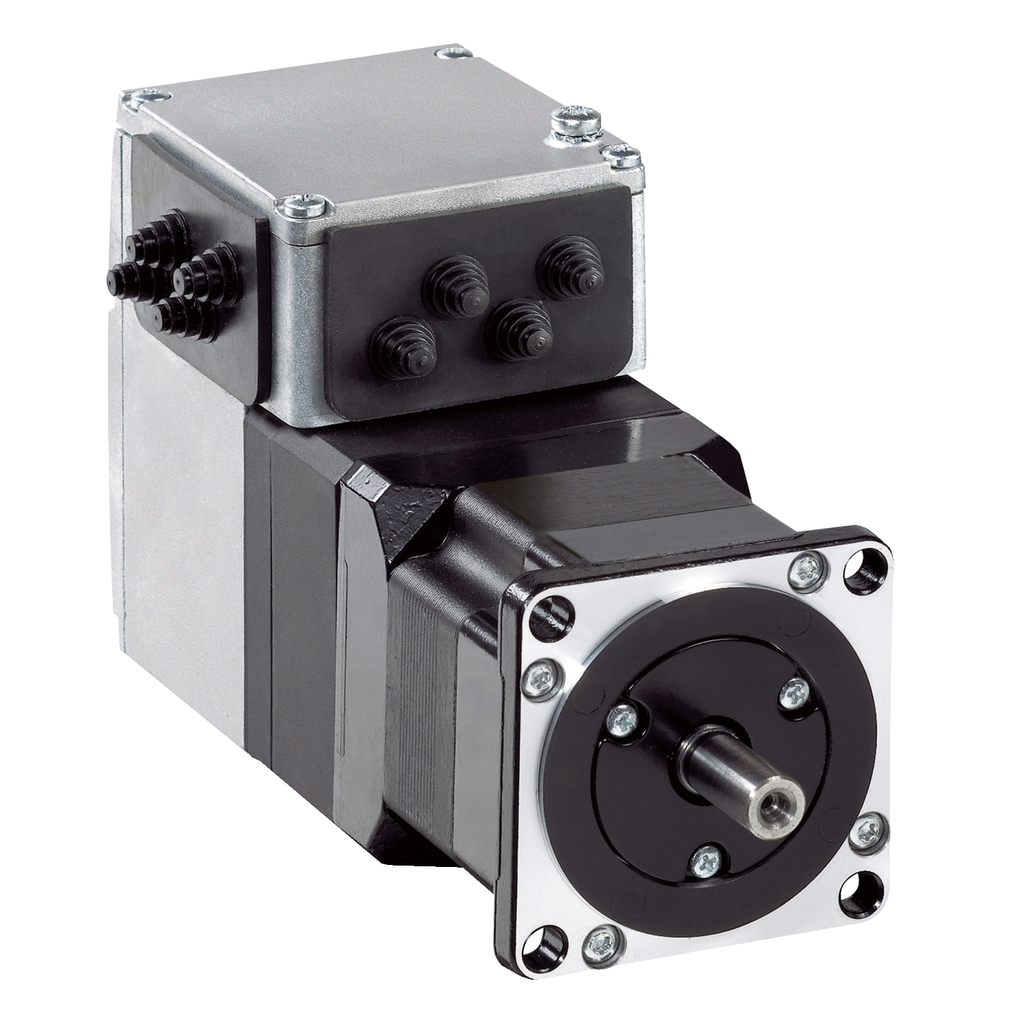

integrated drive ILA with servo motor - 24..48 V - Modbus TCP - indus connector

INTEGRATED DRIVE ILA WITH SERV

SQDILA2T572TC1A0 ILA2T572TC1A0 3606485188034
3452.11 / EA
http://schema.org/OutOfStock
Mayer-DDS-integrated drive ILA with servo motor - 24..48 V - Modbus TCP - indus connector-1
  • Country of Origin: Germany
  • Length: 6.45 in
  • Motor Type: AC Synchronous Servo Motor
  • Shaft Diameter: 9 mm
  • Shaft End: Untapped
  • Shaft Length: 20 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Supply Voltage Description
    • single phase 48 V DC
    • single phase 24 V DC
  • Communication Interface
    • Modbus TCP, Integrated
  • Current Consumption
    • 7500 mA maximum continuous
    • 9000 mA peak
  • Nominal Speed
    • 3000 rpm 24 V
    • 5100 rpm 48 V
  • Discrete Input Current
    • 10-10 mA at 24 V safety input
    • 2-2 mA at 24 V 24 V signal interface
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0228191304
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.4 kg CO2 eq.
    • 0.3888608696
  • Standards
    • IEC 60072-1
    • EN/IEC 61800-3
    • EN 50347
    • EN 61800-3 : 2001-02
    • EN 61800-3:2001, second environment
    • IEC 61800-3, Ed 2
    • EN/IEC 50178
  • Ip Degree Of Protection
    • IP41 shaft bushing: conforming to EN/IEC 60034-5
    • IP54 total except shaft bushing: conforming to EN/IEC 60034-5
    • IP54 total except shaft bushing: conforming t
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 25 kg CO2 eq.
    • 24.6130434783
  • Maximum Switching Current
    • 100 mA per output
    • 200 mA total
  • Protection Type
    • overload of output voltage
    • safe torque off
    • short circuit of the output voltage
  • Accessories
    • VW3L10000N10
    • VW3L1T001N01
  • Vibration Resistance
    • 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 599 kg CO2 eq.
    • 598.7212213741
  • Relative Humidity
    • 15-85 % without condensation
  • Us Rated Supply Voltage
    • 24 V
    • 48 V
  • Service Life In Hours
    • 20000 h bearing
  • Maximum Axial Force Fa
    • 104 N force pressure)
    • 104 N tensile force)
  • Carbon Footprint Of The Distribution Phase A4
    • 0.3814608696
    • 0.4 kg CO2 eq.
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
  • Shock Resistance
    • 150 m/s² 1000 shocks EN/IEC 60068-2-29
  • Ambient Air Temperature For Operation
    • 40-55 °C (with power derating of 2 % per °C)
    • 0-40 °C (without derating)
  • Permissible Ambient Air Temperature Around The Device
    • 105 °C power amplifier
    • 110 °C motor
  • Product Certifications
    • cUL
    • TÜV
    • UL
  • Physical Attributes
    • Motor Flange Size : 57 mm
    • Shaft Length : 20 mm
  • Complementary Attributes
    • Maximum Radial Force Fr : 107 N
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • ETIM 10 : EC001851
    • Device Type : Motion - integrated drive
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 24.6130434783
    • Distribution Carbon Footprint : 0.3814608696
    • Installation Carbon Footprint : 0.0228191304
    • Use Carbon Footprint : 598.7212213741
    • End Of Life Carbon Footprint : 0.3888608696
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2011004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1907
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Associated Fuse Rating : 16 A
    • Centring Collar Diameter : 50 mm
    • Circle Diameter Of The Mounting Holes : 66.6 mm
    • Coefficient 1 0 : 1.565625 N.m
    • Coefficient 1 1 : -0.0003479167 N.m/rpm
    • Coefficient 2 0 : 2.144615 N.m
    • Coefficient 2 1 : -0.00031538 N.m/rpm
    • Coefficient M0 : 4E-06 N.m/rpm
    • Coefficient M0 Max : 7.1428E-06 N.m/rpm
    • Compatibility Code : ILA
    • Continuous Stall Torque : 0.57 N.m
    • Curve Type : lin
    • Device Short Name : ILA
    • Electrical Connection : industrial connector
    • Feedback Type : single turn encoder
    • Gear Box Type : without
    • Holding Brake : without
    • Marking : CE
    • Motor Type : AC Synchronous Servo Motor
    • Mounting Holes Diameter : 5.2 mm
    • Mounting Support : flange
    • Network Number Of Phases : 1
    • Network Type : DC
    • Nominal Torque : 0.57 N.m
    • Number Of Motor Poles : 6
    • Number Of Motor Stacks : 2
    • Number Of Mounting Holes : 4
    • Package Weight Lbs : 2.0 kg
    • Peak Stall Torque : 0.85 N.m
    • Phase : single phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : motion integrated drive
    • Range Of Product : Lexium integrated drive
    • Returnability : No
    • Rotor Inertia : 0.173 kg.cm²
    • Second Shaft : without second shaft end
    • Shaft Diameter : 9 mm
    • Shaft End : untapped
    • Sizing Reference : ILA2_572T
    • Speed Feedback Resolution : 16384 points/turn
    • Supply Voltage Limits : 18-55.2 V
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 624 kg CO2 eq.
    • Transmission Rate : 10, 100 Mbits
    • Type Of Cooling : natural convection
    • Voltage 1 : 24 V
    • Voltage 1 Speed 1 : 2894.96 rpm
    • Voltage 1 Speed 1 Max : 2100 rpm
    • Voltage 2 : 48 V
    • Voltage 2 Speed 2 : 5056.818 rpm
    • Voltage 2 Speed 2 Max : 4200 rpm
    • Voltage State 0 Guaranteed : -3...4.5 V
    • Voltage State 1 Guaranteed : 15...30 V
    • Winding Type : high speed of rotation and medium torque
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 624.1274057219
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : single phase
    • Product Or Component Type : motion integrated drive
    • Range Of Product : Lexium integrated drive
  • Output Attributes
    • Discrete Output Voltage : 23...25 V
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=791634&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 624.1274057219
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI2011004EN
    • Environmental Disclosure : ENVPEP2011004EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Output Type : 4 signals (each be used as input or output)
  • Specifications
    • Country of Origin : Germany
    • Length : 6.45 in
