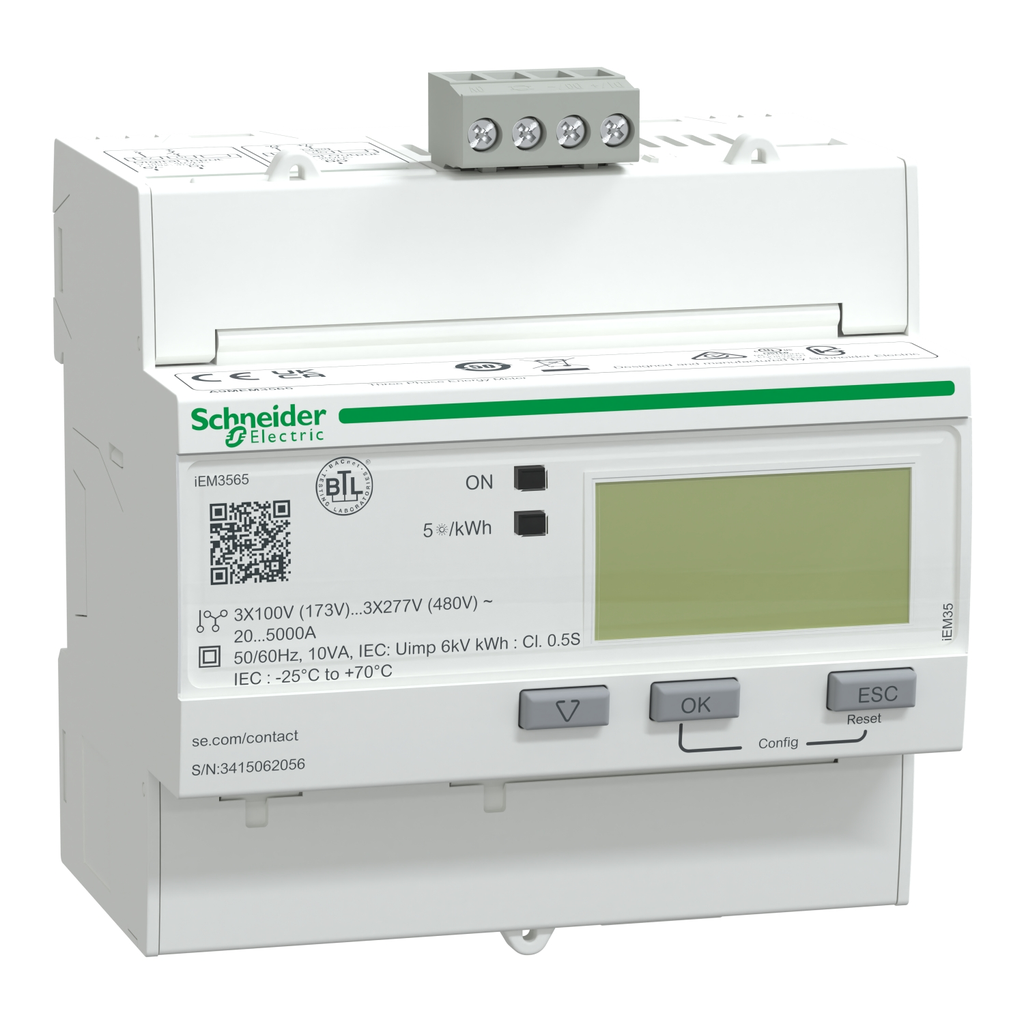

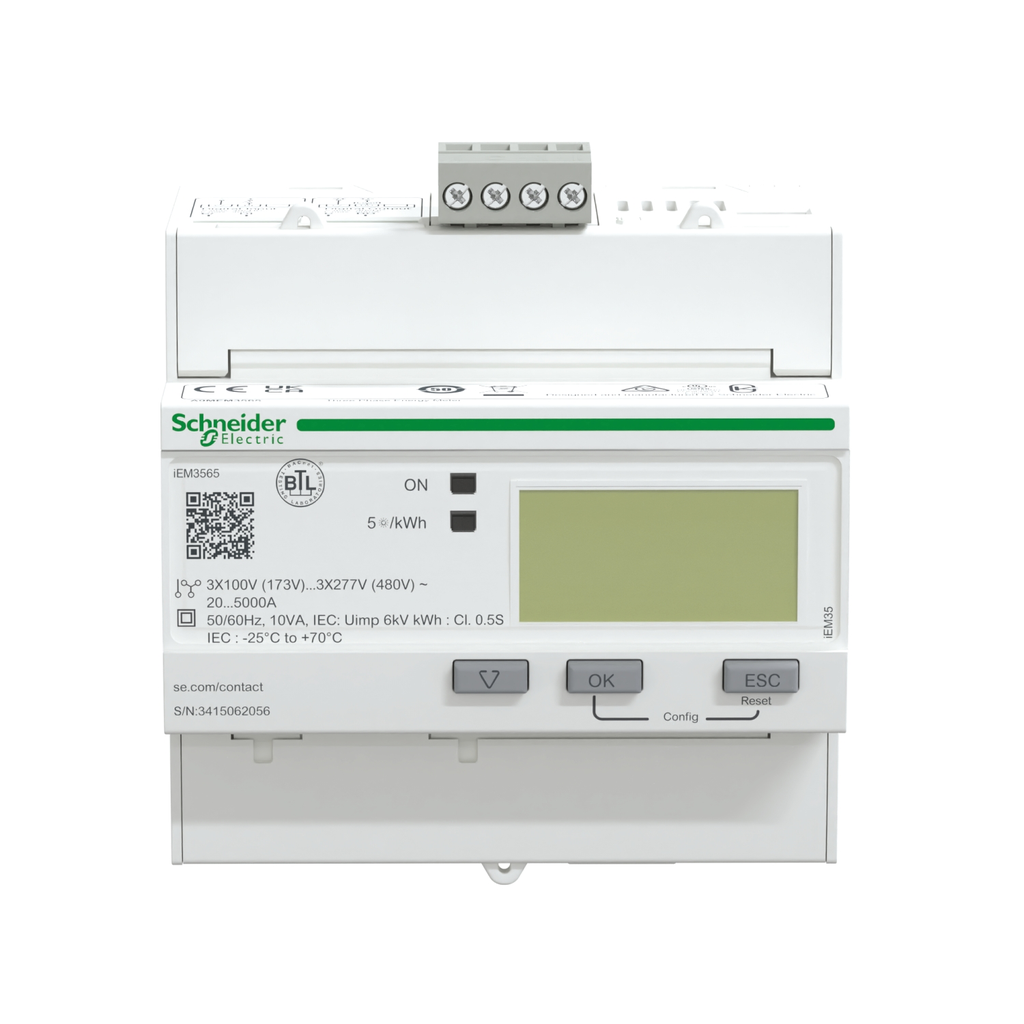

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload a

• Connections Terminals
• current circuit screw terminals 6-6 mm²
• voltage circuit screw terminals 2.5-2.5 mm²
• in
• Analogue Input Type
• Rogowski coil 50...5000 A
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.008515193289438847
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.7 kg CO2 eq.
• 0.6915271793408537
• Standards
• BS EN 61326-1
• IEC 61326-1
• EN 61326-1
• BS EN 61010-1:2010
• EN 61010-1:2010
• IEC 61010-1:2010
• UL 61010-1:2010
• BS EN 61010-2-30
• IEC 61010-2-30
• EN 61010-2-30
• UL 61010-2-30
• ANSI C12.20
• Communication Port Support
• screw terminal block RS485
• Ip Degree Of Protection
• IP40 front panel: conforming to IEC 60529
• IP20 body: conforming to IEC 60529
• Maximum Value Measured
• 99999999.9 kWh
• 99999999 MWh
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 13 kg CO2 eq.
• 12.517002938528893
• Rated Voltage
• 100-277 V +/- 20 %
• 173-480 V +/- 20 %
• Device Application
• sub billing
• partial meter
• multi-tariff
• Communication Port Protocol
• BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds
• Number Of Inputs
• 1 digital 0...5 V/11...40 V 24 V DC
• Type Of Measurement
• active and reactive energy
• active and reactive power
• current
• voltage
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 54 kg CO2 eq.
• 54.120371819354375
• Number Of Outputs
• 1 digital (static)
• Relative Humidity
• 5-95 % 36-36 °C
• Wire Stripping Length
• input/output circuit: 6 mm
• voltage circuit: 8 mm
• current circuit: 8 mm
• communication: 7 mm
• Carbon Footprint Of The Distribution Phase A4
• 0.680382127757419
• 0.7 kg CO2 eq.
• Tightening Torque
• input/output circuit: 0.5-0.5 N.m Philips screwdriver
• voltage circuit: 0.5-0.5 N.m Philips screwdriver
• voltage circuit: 0.5-0.5 N.m Philips screwd
• Network Frequency
• 50 Hz
• 60 Hz
• Poles Description
• 1P + N
• 3P + N
• 3P
• Market Segment
• buildings small building cost management: billing: main incomer
• buildings small building cost management: billing: main income
• Information Displayed
• tariff 4)
• Local Signalling
• Green indicator light power ON
• Yellow flashing LED accuracy checking
• alarm ove
• Ambient Air Temperature For Operation
• -25-70 °C - IEC
• Product Certifications
• CE IEC 61010-1 safety)
• CE EN 61557-12 power monitor)
• CE EN/IEC 61326-1 EMC)
• UKCA BS EN 61010-1 safety)
• Output Voltage
• 5...40 V DC@50 mA

• Physical Attributes
• Color : White
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• ETIM 10 : EC001506
• Html Descr : iEM3555 Energy Meter - BACnet - 1 DI - 1 DO - Multi-Tariff - Rogowski Coil
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 12.5170029385289
• Distribution Carbon Footprint : 0.680382127757419
• Installation Carbon Footprint : 8.51519328943885e-03
• Use Carbon Footprint : 54.1203718193544
• End Of Life Carbon Footprint : 0.691527179340854
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1507016_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 801
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 7
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : L - LOB initialized
• Compatibility Code : iEM3565
• Device Short Name : iEM3565
• Display Type : LCD display
• Measurement Current : 50-5000 A
• Metering Type : active, reactive, apparent energy (signed, four quadrant)
• Mounting Mode : clip-on
• Mounting Support : DIN rail
• Package Weight Lbs : 323 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : energy meter
• Range : Acti9
• Returnability : No
• Sampling Rate : 32 samples/cycle
• Sustainable Packaging : No
• Technology Type : electronic
• Total Lifecycle Carbon Footprint : 68 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 68.01779925827098
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : energy meter
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=422698210&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 68.017799258271
• 9 MM Pitches : 10
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI1507016_V2
• Environmental Disclosure : ENVPEP1507016_V2
• Eu Rohs Directive : Compliant with Exemptions
• Operating Altitude : < 9842.52 ft (3000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Height : 3.43 in
• Width : 3.54 in
• Depth : 2.72 in
