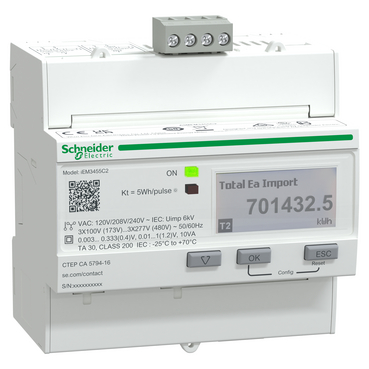

iEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT - CTEP 200A

IEM3455 ENERGY METER - MODBUS

SQDA9MEM3455C2 A9MEM3455C2 3606481285843
606.36 / EA
http://schema.org/OutOfStock
  • Certifications: CE EN 61557-12 Power Monitor), CE EN/IEC 61326-1 EMC), CE IEC 61010-1 Safety), CULus EN 61010-1 Safety), CULus UL 61010-1 Safety), KZ, RCM, UKCA BS EN 61010-1 Safety), UKCA BS EN 61326-1 EMC), UKCA BS EN 61557-12 Power Monitor)
  • Depth: 69 mm
  • Height: 87 mm
  • Mounting Type: Clip-On
  • Number of Outputs: 1
  • Output Voltage: ...40 V, 50 mA
  • Storage Temperature: -40-85 °C
  • Strip Length: 6 mm, 7 mm, 8 mm
  • Voltage: 100-277 V, 173-480 V, 20 %
  • Width: 90 mm
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation. This model is CTEP approved for Sub-Billing in the state of California. The range is locked at the factory for 200A.
QTY
  • Product Description
  • Specifications
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation. This model is CTEP approved for Sub-Billing in the state of California. The range is locked at the factory for 200A.
  • Complementary
    • Network Frequency : 60 Hz || 50 Hz
    • Communication Port Support : screw terminal block RS485
    • Output Voltage : 5...40 V DC@50 mA
    • Sampling Rate : 32 samples/cycle
    • Number Of Outputs : 1 digital (static)
    • Mounting Support : DIN rail
    • Maximum Value Measured : 99999999.9 kWh || 99999999 MWh
    • Type Of Measurement : active and reactive energy || active and reactive power || current || voltage
    • Communication Port Protocol : Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
    • Product Certifications : CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || KZ || RCM
    • Number Of Inputs : 1 digital 0...5 V/11...40 V 24 V DC
    • Measurement Current : 1-32767000 mA
    • Wire Stripping Length : input/output circuit: 6 mm || voltage circuit: 8 mm || current circuit: 8 mm || communication: 7 mm
    • Connections - Terminals : current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²
    • Information Displayed : tariff 4)
    • Mounting Mode : clip-on
    • Local Signalling : Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload || Yellow indicator light communications are active on the Modbus port (Modbus)
    • Technology Type : electronic
    • Poles Description : 3P + N || 1P + N || 3P
    • Analogue Input Type : split core current transducer 0.333 V or 1 V
    • Display Type : LCD display
    • Tightening Torque : input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips
    • Device Application : sub billing || multi-tariff || partial meter
    • Accuracy Class : class 0.5S active energy IEC 62053-22 || class 0.5S active energy ANSI C12.20
    • Metering Type : active, reactive, apparent energy (signed, four quadrant)
    • Rated Voltage : 100-277 V +/- 20 % || 173-480 V +/- 20 %
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111276EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI111261EN_V1
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Product Or Component Type : energy meter
    • Product Name : Acti9 iEM3000
    • Range : Acti9
    • Device Short Name : iEM3455
  • Environment
    • Ik Degree Of Protection : IK08
    • Height : 87 mm
    • Ambient Air Temperature For Operation : -25-70 °C - IEC
    • Pollution Degree : 2
    • 9 Mm Pitches : 10
    • Color : White
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 36-36 °C
    • Ip Degree Of Protection : front panel IP40 IEC 60529 || body IP20 IEC 60529
    • Width : 90 mm
    • Depth : 69 mm
    • Operating Altitude : < 9842.52 ft (3000 m)
