Certifications:
CE EN 61557-12 Power Monitor), CE EN/IEC 61326-1 EMC), CE IEC 61010-1 Safety), CULus EN 61010-1 Safety), CULus UL 61010-1 Safety), EAC EN 50470-3 Sub-meter), KZ EN 50470-3 Sub-meter), METAS EN 50470-1 Sub-meter), MID EN 50470-1 Sub-meter), MID EN 50470-3 Sub-meter), RCM EN 62052 Sub-meter), UKCA BS EN 61010-1 Safety), UKCA BS EN 61326-1 EMC), UKCA BS EN 61557-12 Power Monitor)
-
Depth:
69.3 mm
-
Height:
103.2 mm
-
IsSustainable:
No
-
Line Rated Current:
125 A
-
Mounting Type:
Clip-On
-
Number of Outputs:
1
-
Output Voltage:
...40 V, 50 mA
-
Standard:
ANSI C12.16, BS EN 50470-1, BS EN 50470-3, BS EN 61010-1:2010, BS EN 61010-2-30, BS EN 61326-1, BS EN 61557-12:2021, BS EN 62052-11:2020, BS EN 62052-23, BS EN 62052-31:2015, BS EN 62053-21, EN 50470-1, EN 50470-3, EN 61010-1:2010, EN 61010-2-30, EN 61326-1, EN 61557-12:2021, EN 62052-11:2020, EN 62052-23, EN 62052-31:2015, EN 62053-21, IEC 61010-1:2010, IEC 61010-2-30, IEC 61326-1, IEC 61557-12:2021, IEC 62052-11:2020, IEC 62052-31:2015, IEC 62053-21, IEC 62053-23:2020, UL 61010-1:2010, UL 61010-2-30
-
Storage Temperature:
-40-85 °C
-
Voltage:
100-277 V, 173-480 V
-
Width:
126 mm

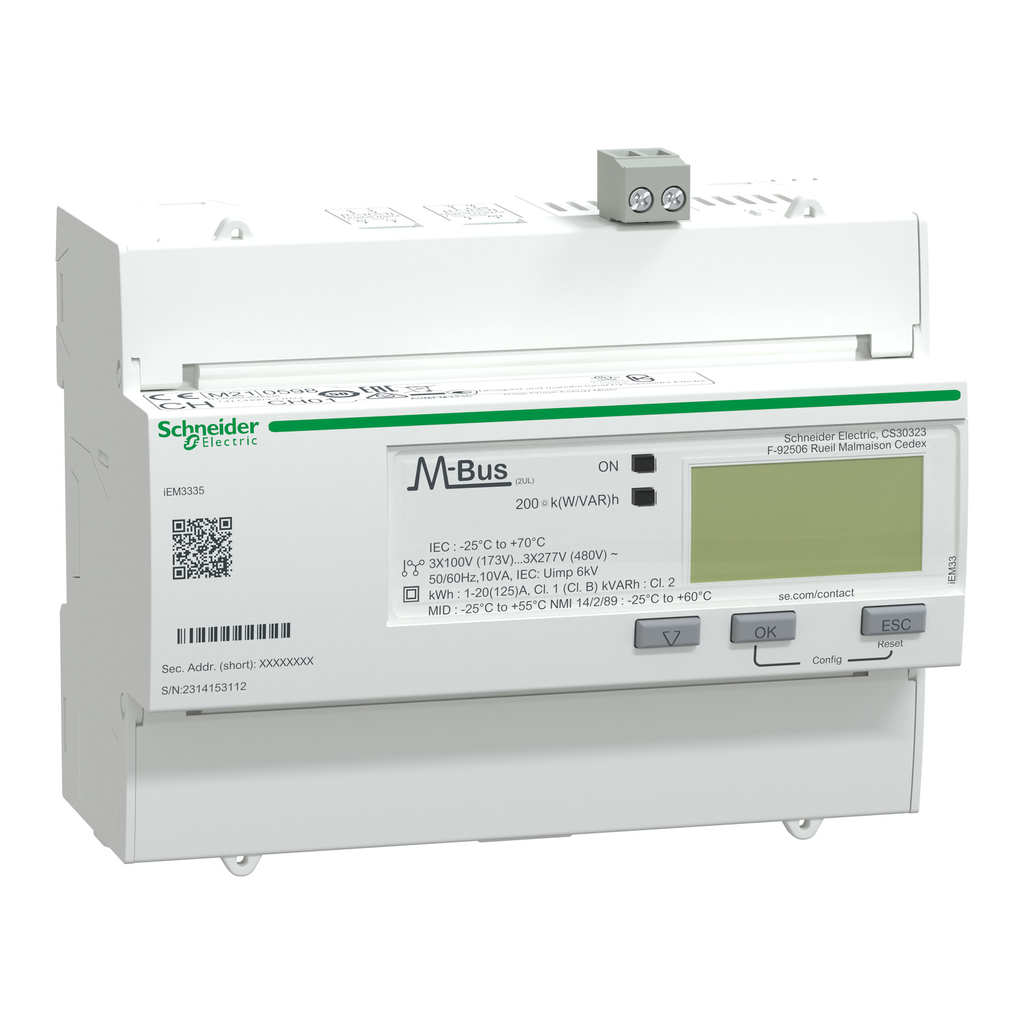

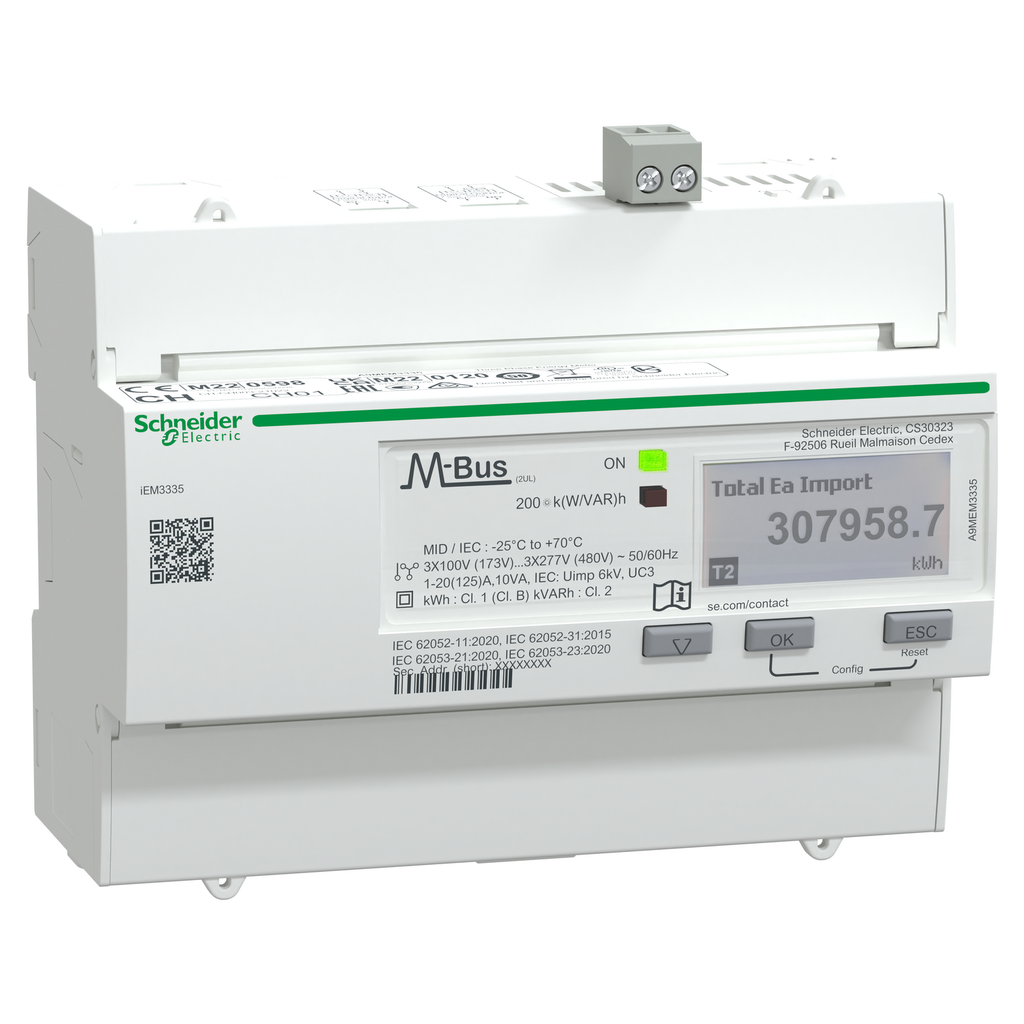

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is M-Bus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).
