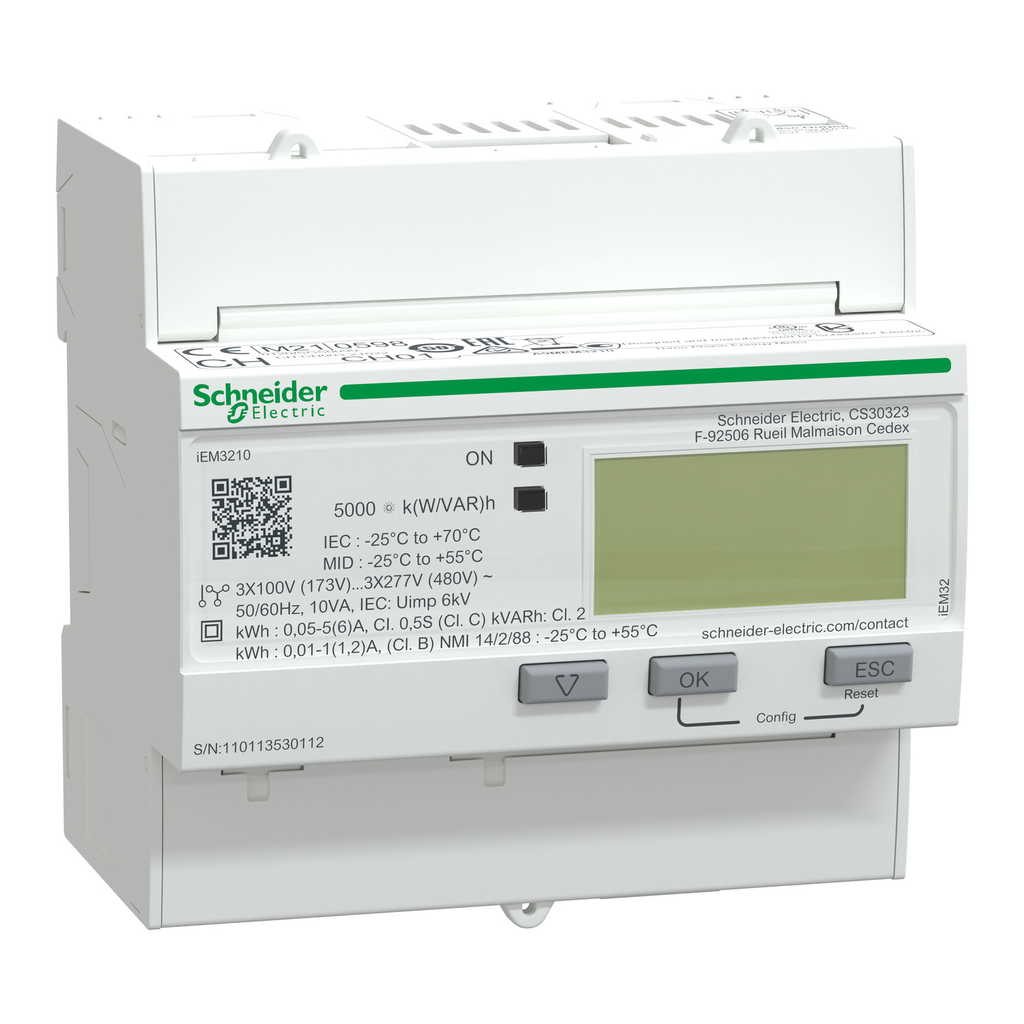

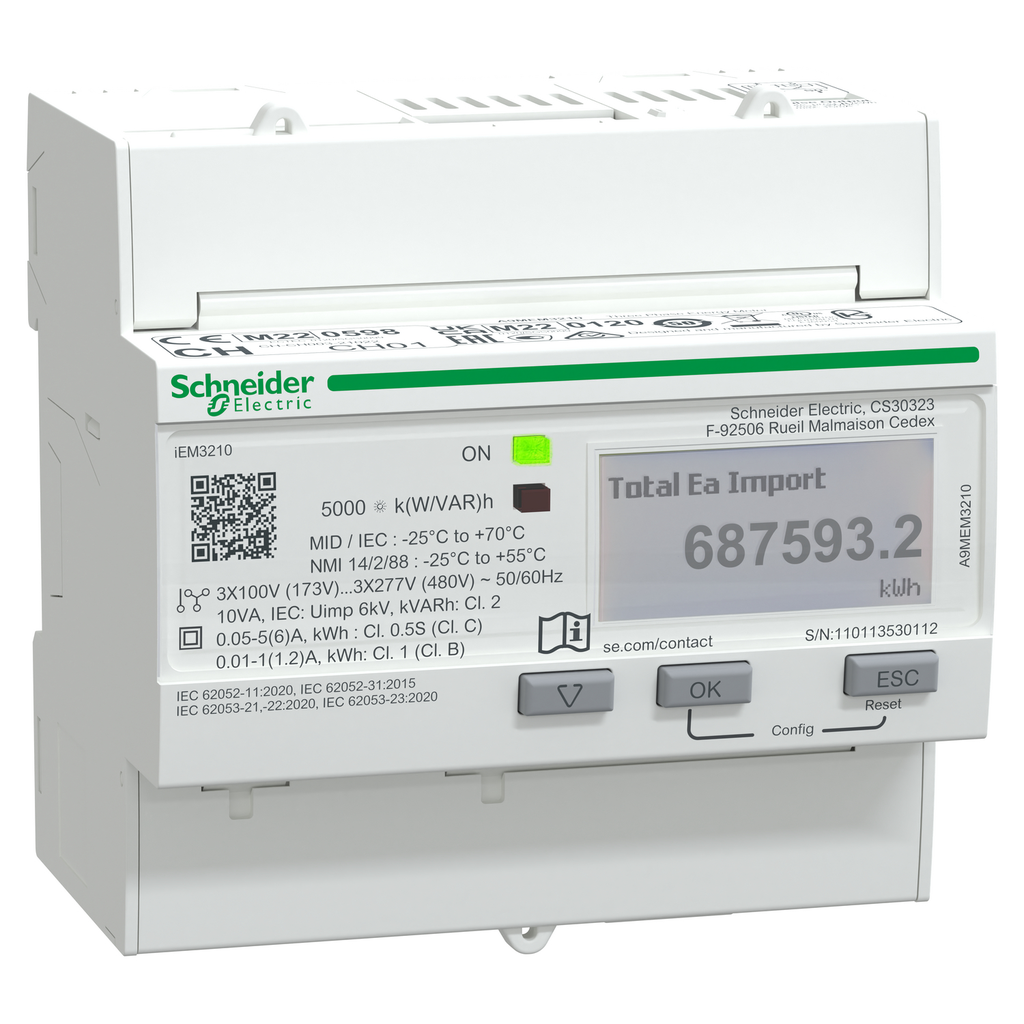

iEM3210 energy meter - CT - 1 pulse O - MID

IEM3210 ENERGY METER - CT - 1

SQDA9MEM3210 3606480481543
534.95 / EA
http://schema.org/OutOfStock
  • Certifications: CE EN 61557-12 Power Monitor), CE EN/IEC 61326-1 EMC), CE IEC 61010-1 Safety), CULus EN 61010-1 Safety), CULus UL 61010-1 Safety), EAC EN 50470-3 Sub-meter), KZ EN 50470-3 Sub-meter), METAS EN 50470-1 Sub-meter), MID EN 50470-1 Sub-meter), MID EN 50470-3 Sub-meter), NMI NMI M 6-1, RCM EN 62052 Sub-meter), UKCA BS EN 61010-1 Safety), UKCA BS EN 61326-1 EMC), UKCA BS EN 61557-12 Power Monitor)
  • Depth: 69 mm
  • Height: 95 mm
  • Line Rated Current: 1 A, 5 A
  • Mounting Type: Clip-On
  • Number of Outputs: 1
  • Standard: ANSI C12.20, BS EN 50470-1, BS EN 50470-3, BS EN 61010-1:2010, BS EN 61010-2-30, BS EN 61326-1, BS EN 61557-12:2021, BS EN 62052-11:2020, BS EN 62052-22, BS EN 62052-23, BS EN 62052-31:2015, BS EN 62053-21, EN 50470-1, EN 50470-3, EN 61010-1:2010, EN 61010-2-30, EN 61326-1, EN 61557-12:2021, EN 62052-11:2020, EN 62052-22, EN 62052-23, EN 62052-31:2015, EN 62053-21, IEC 61010-1:2010, IEC 61010-2-30, IEC 61326-1, IEC 61557-12:2021, IEC 62052-11:2020, IEC 62052-31:2015, IEC 62053-21, IEC 62053-22:2020, IEC 62053-23:2020, UL 61010-1:2010, UL 61010-2-30
  • Storage Temperature: -40-85 °C
  • Voltage: 100-277 V, 173-480 V
  • Warranty Length: 18 mth
  • Width: 90 mm
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
QTY
  • Product Description
  • Specifications
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
  • Environment
    • Height : 95 mm
    • Ambient Air Temperature For Operation : -25-70 °C - IEC
    • Pollution Degree : 2
    • 9 Mm Pitches : 10
    • Color : White
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 50-50 °C
    • Ip Degree Of Protection : front panel IP40 IEC 60529 || body IP20 IEC 60529
    • Width : 90 mm
    • Depth : 69 mm
    • Operating Altitude : < 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111276EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI111261EN_V1
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Network Frequency : 50 Hz || 60 Hz
    • Sampling Rate : 32 samples/cycle
    • Number Of Outputs : 1 pulse
    • Mounting Support : DIN rail
    • Maximum Value Measured : 99999999 MWh
    • Standards : BS EN 61557-12:2021 || IEC 61557-12:2021 || EN 61557-12:2021 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11:2020 || IEC 62052-11:2020 || EN 62052-11:2020 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62052-22 || IEC 62053-22:2020 || EN 62052-22 || BS EN 62052-23 || IEC 62053-23:2020 || EN 62052-23 || BS EN 62052-31:2015 || IEC 62052-31:2015 || EN 62052-31:2015 || BS EN 61010-1:2010 || EN 61010-1:2010 || IEC 61010-1:2010 || UL 61010-1:2010 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || BS EN 50470-3 || EN 50470-3 || BS EN 50470-1 || EN 50470-1 || ANSI C12.20
    • Type Of Measurement : active energy
    • Product Certifications : CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || EAC EN 50470-3 sub-meter) || RCM EN 62052 sub-meter) || KZ EN 50470-3 sub-meter) || METAS EN 50470-1 sub-meter) || MID EN 50470-3 sub-meter) || MID EN 50470-1 sub-meter) || NMI NMI M 6-1
    • Number Of Inputs : 0
    • Measurement Current : 1-32767000 mA
    • Connections - Terminals : current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm²
    • Mounting Mode : clip-on
    • Local Signalling : Green indicator light power ON || Yellow flashing LED accuracy checking
    • Technology Type : electronic
    • Poles Description : 3P || 1P + N || 3P + N
    • Line Rated Current : 5 A || 1 A
    • Analogue Input Type : external CT 1 A or 5 A
    • Display Type : LCD display
    • Overvoltage Category : III
    • Device Application : partial meter || sub billing
    • Accuracy Class : class 0.5S active energy IEC 62053-22 || class 0.5S active energy IEC 61557-12 || class C active energy EN 50470-3
    • Rated Voltage : 100-277 V || 173-480 V
  • Specifications
    • Product Or Component Type : energy meter
    • Product Name : Acti9 iEM3000
    • Range : Acti9
    • Device Short Name : iEM3210
