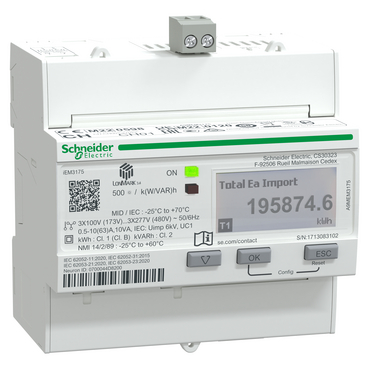

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communicat

• Connections Terminals
• screw terminals 16-16 mm²
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.012933511487020048
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.9 kg CO2 eq.
• 0.9463684015731546
• Standards
• BS EN 61557-12:2021
• IEC 61557-12:2021
• EN 61557-12:2021
• BS EN 61326-1
• IEC 61326-1
• EN 61326-1
• BS EN 62052-11:2020
• IEC 62052-11:2020
• EN 62052-11:2020
• EN 62052-11:20
• Communication Port Support
• screw terminal block LonWorks TP/FT-10
• Ip Degree Of Protection
• IP40 front panel: conforming to IEC 60529
• IP20 body: conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 14 kg CO2 eq.
• 13.80705922513559
• Rated Voltage
• 100-277 V
• 173-480 V
• Device Application
• sub billing
• partial meter
• multi-tariff
• Communication Port Protocol
• LON 3750 V
• Number Of Inputs
• 1 digital 0...5 V/11...40 V 24 V DC
• Type Of Measurement
• active and reactive energy
• active and reactive power
• current
• voltage
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 47 kg CO2 eq.
• 47.49835981254568
• Relative Humidity
• 5-95 % 50-50 °C
• Carbon Footprint Of The Distribution Phase A4
• 1.07891590485303
• 1 kg CO2 eq.
• Network Frequency
• 50 Hz
• 60 Hz
• Poles Description
• 3P
• 3P + N
• 1P + N
• Market Segment
• buildings small building cost management: billing: main incomer
• buildings small building cost management: billing: main income
• Information Displayed
• tariff 4)
• Local Signalling
• Green indicator light power ON
• Yellow flashing LED accuracy checking
• alarm ove
• Ambient Air Temperature For Operation
• -25-55 °C - MID
• -25-70 °C - IEC
• -25-60 °C - IEC
• Product Certifications
• CE IEC 61010-1 safety)
• CE EN 61557-12 power monitor)
• CE EN/IEC 61326-1 EMC)
• UKCA BS EN 61010-1 safety)

• Physical Attributes
• Color : White
• Complementary Attributes
• Line Rated Current : 63 A
• Maximum Value Measured : 99999999.9 kWh
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-06-18
• ETIM 10 : EC001506
• Html Descr : IEM3175 Energy meterPoles description : 1P + N, 3P, 3P + NRated current : 63 ARated voltage : 100…277 V, 173…480 V
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 13.8070592251356
• Distribution Carbon Footprint : 1.07891590485303
• Installation Carbon Footprint : 0.01293351148702
• Use Carbon Footprint : 47.4983598125457
• End Of Life Carbon Footprint : 0.946368401573155
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI111261EN_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1308
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 6
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Compatibility Code : iEM3175
• Device Short Name : iEM3175
• Display Type : LCD display
• Measurement Current : 0-63 A
• Metering Type : active, reactive, apparent energy (signed, four quadrant)
• Mounting Mode : clip-on
• Mounting Support : DIN rail
• Overvoltage Category : III
• Package Weight Lbs : 454.600 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : energy meter
• Range : Acti9
• Returnability : No
• Sampling Rate : 32 samples/cycle
• Sustainable Packaging : No
• Technology Type : electronic
• Total Lifecycle Carbon Footprint : 63 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 63.343636855594475
• Relationshiptype : up-selling relationship
• General Attributes
• Product Or Component Type : energy meter
• Output Attributes
• Number Of Outputs : 0
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=178292657&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 63.3436368555945
• 9 MM Pitches : 10
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI111261EN_V2
• Environmental Disclosure : ENVPEP111276EN_V2
• Eu Rohs Directive : Compliant with Exemptions
• Operating Altitude : < 9842.52 ft (3000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Input Attributes
• Analogue Input Type : direct connection
• Specifications
• Country of Origin : China
• Height : 3.74 in
• Width : 3.54 in
• Depth : 2.72 in
