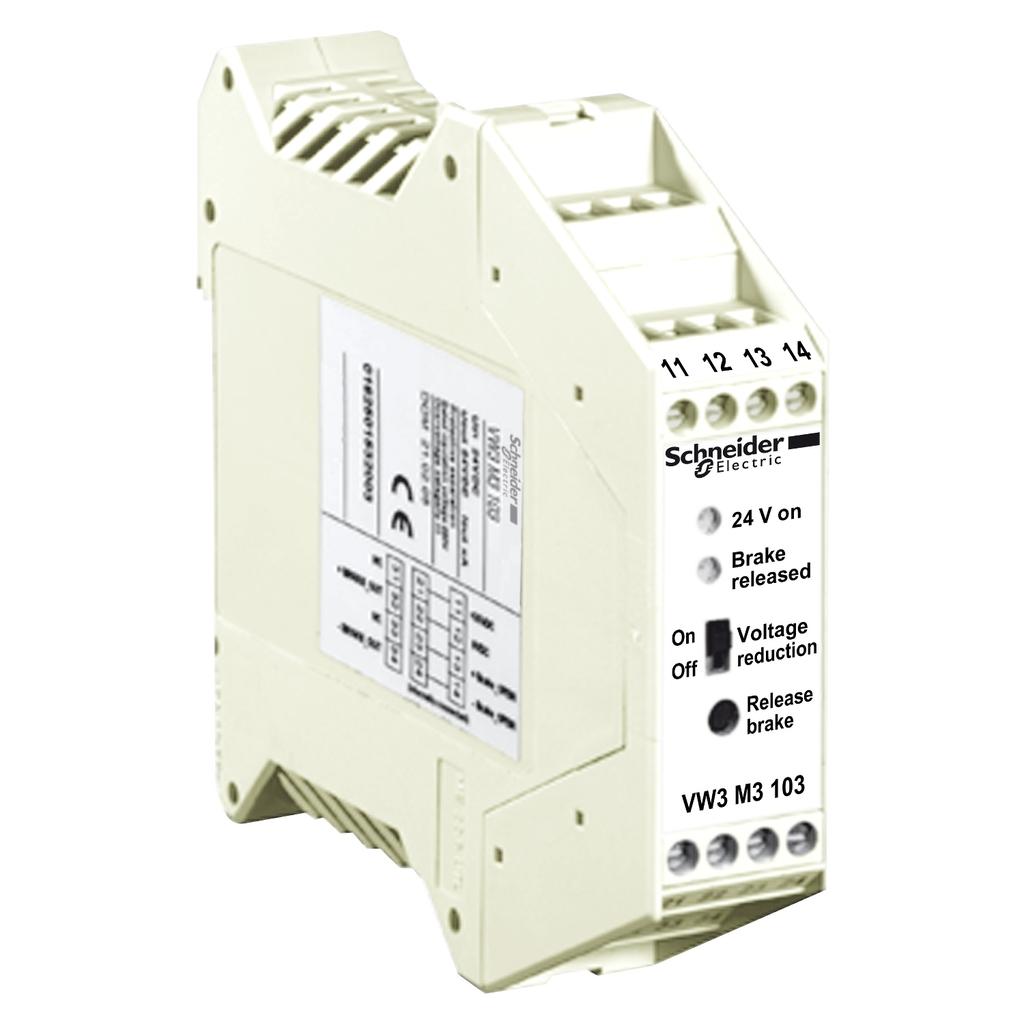

This an holding brake controller dedicated to Lexium servo drives. It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary). It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft when it is stationary. Its power supply voltage limits are 19.2V to 30V, its input current is 0.5 A + brake nominal current, its maximum power consumption is 50W. Its output voltage is 17V to 19V DC or 23V to 25V DC before power reduction, its maximum braking current is 1.6A, and time before voltage reduction is 1000ms. It weighs 0.600kg. It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary). It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. It is compatible with Easy Lexium 16 servo drives. It is sold by one piece. It is mounted on 55mm symmetrical DIN rail. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Mounting Support : 55 mm symmetrical DIN rail, 55 mm symmetrical DIN rail
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-02
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Full Compliance Status : Not applicable, out of EU RoHS legal scope
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Braking Current : 1.6 A
• Normal Time To Voltage Reduction : 1000 ms
• Package Weight Lbs : 289.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : holding brake controller
• Returnability : No
• Supply Circuit Type : DC
• Sustainable Packaging : No
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Not Applicable/Out of Scope​, Not applicable, out of EU RoHS legal scope
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : holding brake controller
• Output Attributes
• Output Voltage : 17...19 V DC, 17...19 V DC, 23...25 V DC before power reduction, 23...25 V DC before power reduction, 23...25 V DC before power reduction
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
