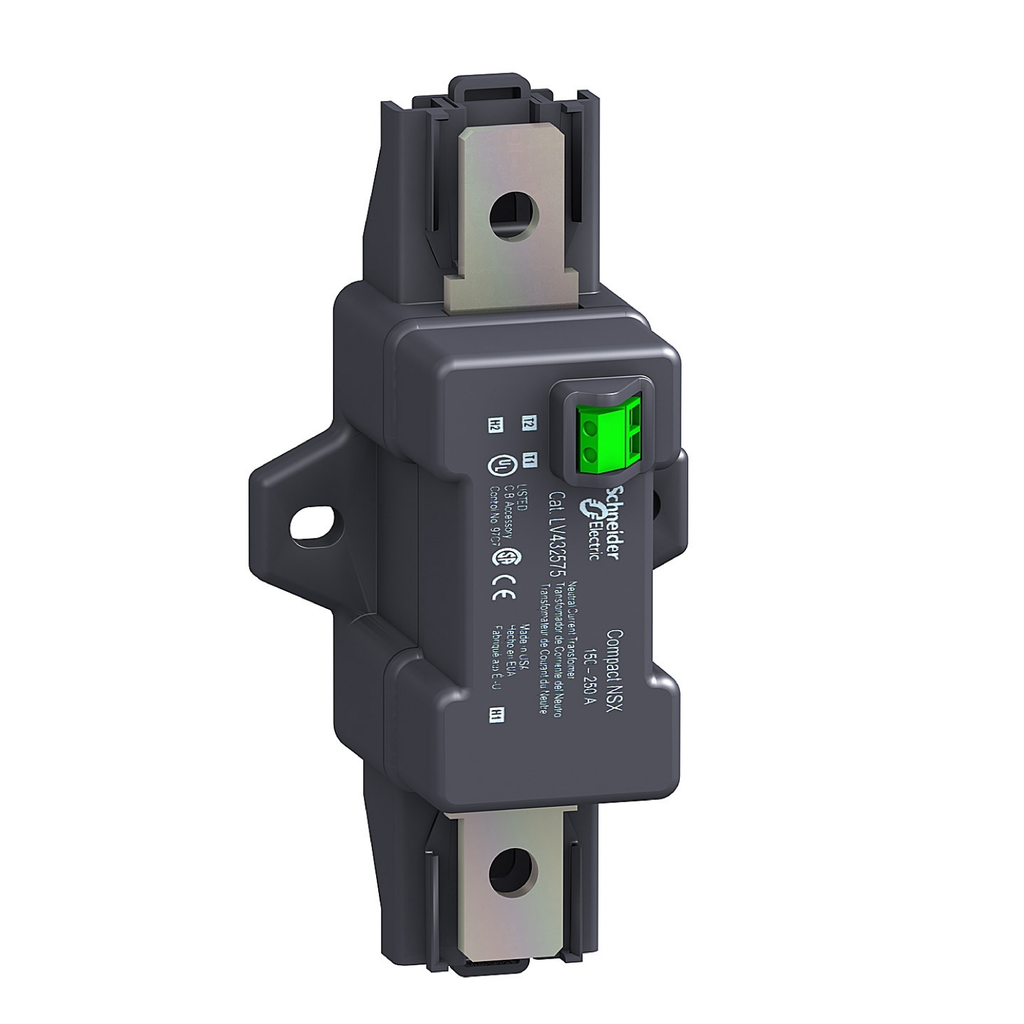

It is an external neutral current transformer (ENCT) for Compact NSX160/250 equipped with Micrologic 5/6 trip unit. With 3P devices, the distributed neutral of the installation can be protected by installing this external sensor. The sensor rated current is from 150 A to 250 A. The ENCT must be connected to the Micrologic trip unit by a shielded twisted pair. The wiring maximum length is 10 m and the cross section is from 0.4 mm² to 1.5 mm².

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000237_3D-CAD&p_File_name=MCADPP0000237_2D-top.dxf
• Complementary Attributes
• Line Rated Current : 150-250 A
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Medium Desc : external neutral current transformer, ComPact NSX160/250, 150A to 250A, 3P breakers with Micrologic 5/6 trip unit
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-15
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Bvb : Recommended
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : power supply
• Energy Efficiency Optimized : False
• Halogen Free Status : Product contains halogen above thresholds
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : neutral sensor
• Range : ComPact
• Range Of Product : ComPact NSX100...250
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Silicone Free : No
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : Nej
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Silicon Free : No
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : neutral sensor
• Range Of Product : ComPact NSX100...250
• ETIM
• ETIM 8 : EC002048
• ETIM 9 : EC002048
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
