expansion module, Modicon MCM, 8 inputs 2 output pairs, spring

8 inputs 2 output pairs expans

SQDXPSMCMMX0802G XPSMCMMX0802G 3606480748844
585.20 / EA
http://schema.org/OutOfStock

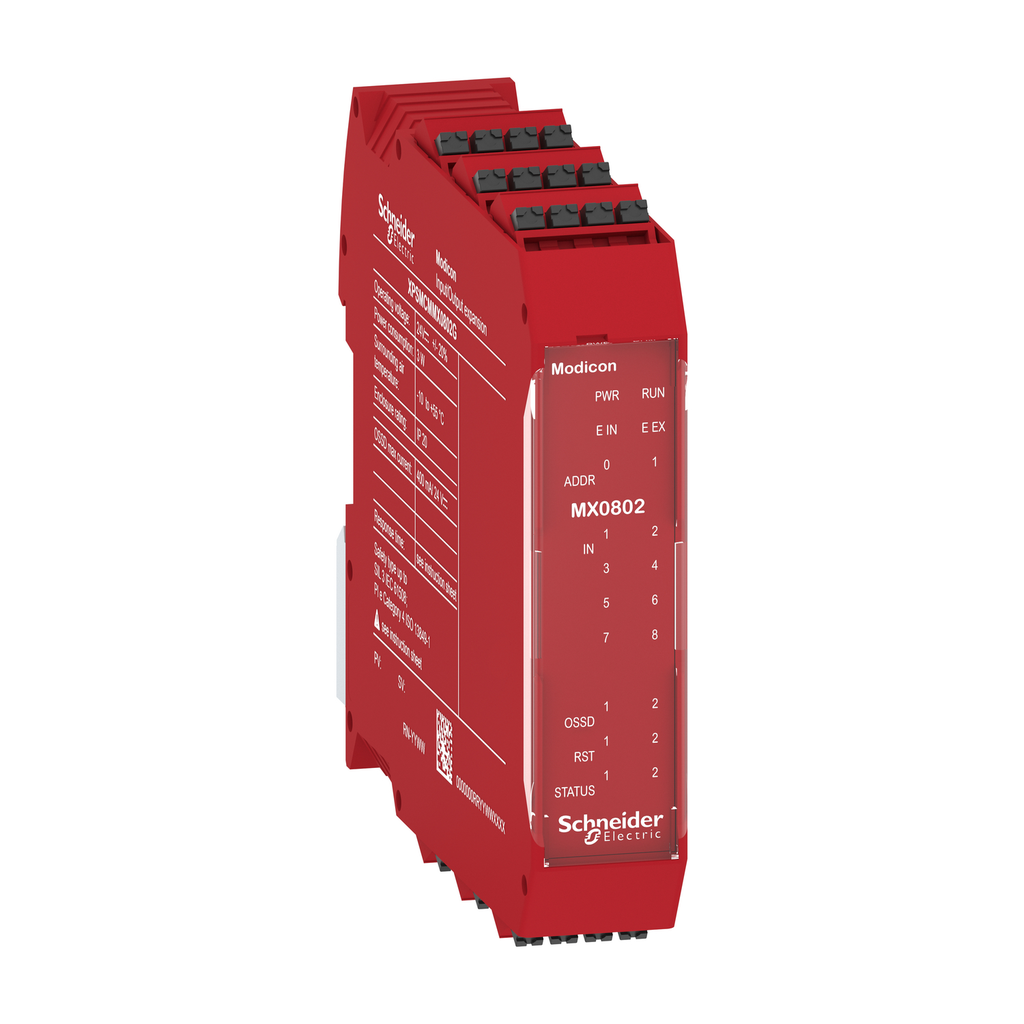

Mayer-DDS-expansion module, Modicon MCM, 8 inputs 2 output pairs, spring-1
This Modicon MCM safe mixed I/O expansion module has 8 digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive spring clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe mixed I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
QTY
  • Product Description
  • Features
  • Specifications
This Modicon MCM safe mixed I/O expansion module has 8 digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive spring clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe mixed I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UIMP Rated Impulse Withstand Voltage : 4 kV IEC 61800-5-1, 4 kV IEC 61800-5-1
    • US Rated Supply Voltage : 24 V - 20...20 % DC, 24 V - 20...20 % DC, 24 V - 20...20 % DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Cable Cross Section : 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
    • Electromagnetic Compatibility : electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    • Function Of Module : monitoring safety detection discrete input, monitoring safety detection discrete input, monitoring safety dialogue discrete input, monitoring safety dialogue discrete input, monitoring safety actuators discrete output, monitoring safety actuators discrete output
    • Insulation : 250 V AC between power supply and housing IEC 61800-5-1, 250 V AC between power supply and housing IEC 61800-5-1, 250 V AC between power supply and housing IEC 61800-5-1, 250 V AC between power supply and housing IEC 61800-5-1
    • Local Signalling : 1 LED green PWR power ON, 1 LED green PWR power ON, 1 LED green PWR power ON, 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED green RUN RUN (status), 1 LED green RUN RUN (status), 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E IN internal error, 1 LED red E IN internal error, 1 LED red E IN internal error, 1 LED red E EX external error, 1 LED red E EX external error, 1 LED red E EX external error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs orange ADDR node address, 2 LEDs orange ADDR node address, 2 LEDs orange ADDR node address, 8 LEDs yellow IN input status, 8 LEDs yellow IN input status, 8 LEDs yellow IN input status, 8 LEDs yellow IN input status, 2 LEDs green/red OUT output status, 2 LEDs green/red OUT output status, 2 LEDs green/red OUT output status, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow RST restart signal, 2 LEDs yellow RST restart signal, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status, 2 LEDs yellow STATUS output status, 2 LEDs yellow STATUS output status, 2 LEDs yellow STATUS output status
    • Mounting Support : omega 35 mm DIN rail EN 50022, omega 35 mm DIN rail EN 50022, omega 35 mm DIN rail EN 50022
    • Safety Level : can reach category 4 ISO 13849-1, can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061, SILCL 3 IEC 62061
    • Safety Reliability Data : DC > 99 %, MTTFd < 100 years high, MTTFd < 100 years high, PFHd = 5.72E-9 1/h
    • Shock Resistance : 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1, 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1, 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1, 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    • Vibration Resistance : +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    • Connections Terminals : 1 spring clamp terminals, removable terminal block, 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Device Short Name : XPSMCM
    • Package Weight Lbs : 242.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safe mixed I/O expansion module
    • Quality Labels : CE
    • Range Of Product : Preventa Safety automation
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 enclosure), IP20 enclosure)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -20-85 °C
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 %
  • General Attributes
    • Product Or Component Type : safe mixed I/O expansion module
    • Range Of Product : Preventa Safety automation
  • Output Attributes
    • Discrete Output Current : 400 mA, 100 mA
    • Discrete Output Voltage : 24 V DC, 24 V DC
    • Number Of Outputs : 4 test line control, 4 test line control, 4 test line control, 2 safety outputs OSSD contactor/drive connection, 2 safety outputs OSSD contactor/drive connection, 2 safety outputs OSSD contactor/drive connection, 2 configurable diagnostic connection, 2 configurable diagnostic connection, 2 configurable diagnostic connection
  • Input Attributes
    • Discrete Input Voltage : 24 V DC, 24 V DC
    • Number Of Inputs : 8 digital, 8 digital, 2 digital external device monitoring, 2 digital external device monitoring, 2 digital external device monitoring
