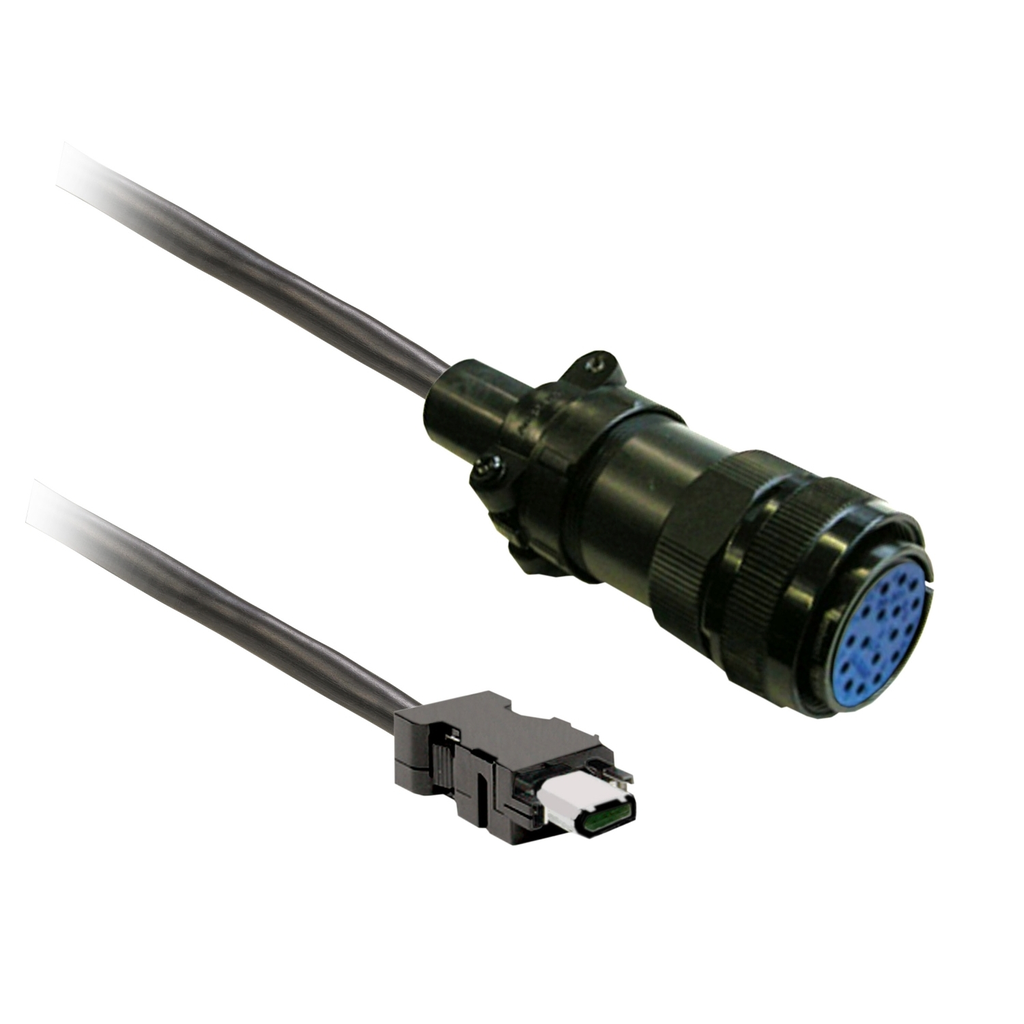

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder. It is equipped with one firewire 6-pin connector (servo drive side) and one MIL 17-pin connector (servo motor side). The encoder cable transmits signals between position sensors of servo motors and their control systems. The cable composition is 5x (2 x 0.13squaremm). It measures 3m long and weighs 1.3kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2LH103, /LH203, /MM081, /MM031, /MM052, /MM061, /MM102, /HM102, /MM091, /MM152, /MM202. It plugs into the encoder connector of LXM28 drives and BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

• Electrical Connection
• 1 connector Firewire 6
• 1 connector MIL 17
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1901
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Cable Composition : 5 x (2 x 0.13 mm²)
• Package Weight Lbs : 241 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : encoder cable
• Range Of Product : Lexium
• Returnability : No
• Sustainable Packaging : No
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=433147723&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• General Attributes
• Product Or Component Type : encoder cable
• Range Of Product : Lexium
• Specifications
• Country of Origin : Tunisia
