SQUARE D

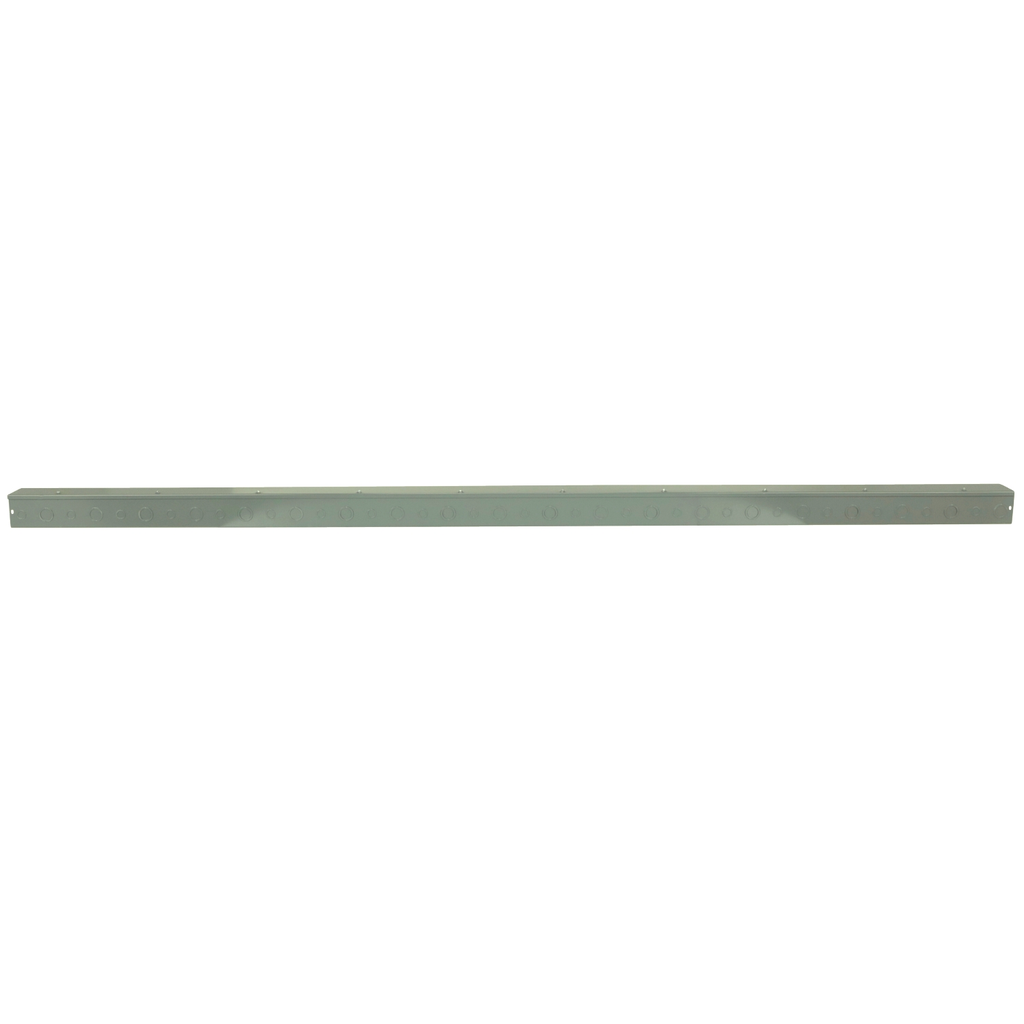

Wireway, Square-Duct, 4 inch by 4 inch, 10 feet long, with knock outs, hinged cover, N1 paint, NEMA 1

WIREWAY 4 X 4-N1 PAINT-10FT LG

SQDLDB410KO LDB410KO 785901171720
162.61 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Wireway, Square-Duct, 4 inch by 4 inch, 10 feet long, with knock outs, hinged cover, N1 paint, NEMA 1-2
  • Country of Origin: Mexico
  • Cover Type: Hinged Cover
  • Enclosure Material: Steel
  • Length: 10 ft
  • Surface Finish: Gray Polyester Powder ANSI 49
  • Warranty Length: 18 mth
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 4 inches by 4 inches and 10 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 4 inches by 4 inches and 10 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Length : 10 ft
    • Product Certifications : UL Listed || CSA
    • Range Of Product : SQUARE-Duct
    • Product Or Component Type : straight length
    • Trunking Dimension : 4 x 4 in
    • Cover Type : hinged cover
    • Enclosure Material : steel 16 gauge with knock-outs
    • Nema Degree Of Protection : NEMA 1
    • Surface Finish : Gray polyester powder ANSI 49
    • Trunking Length : 10 ft
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
