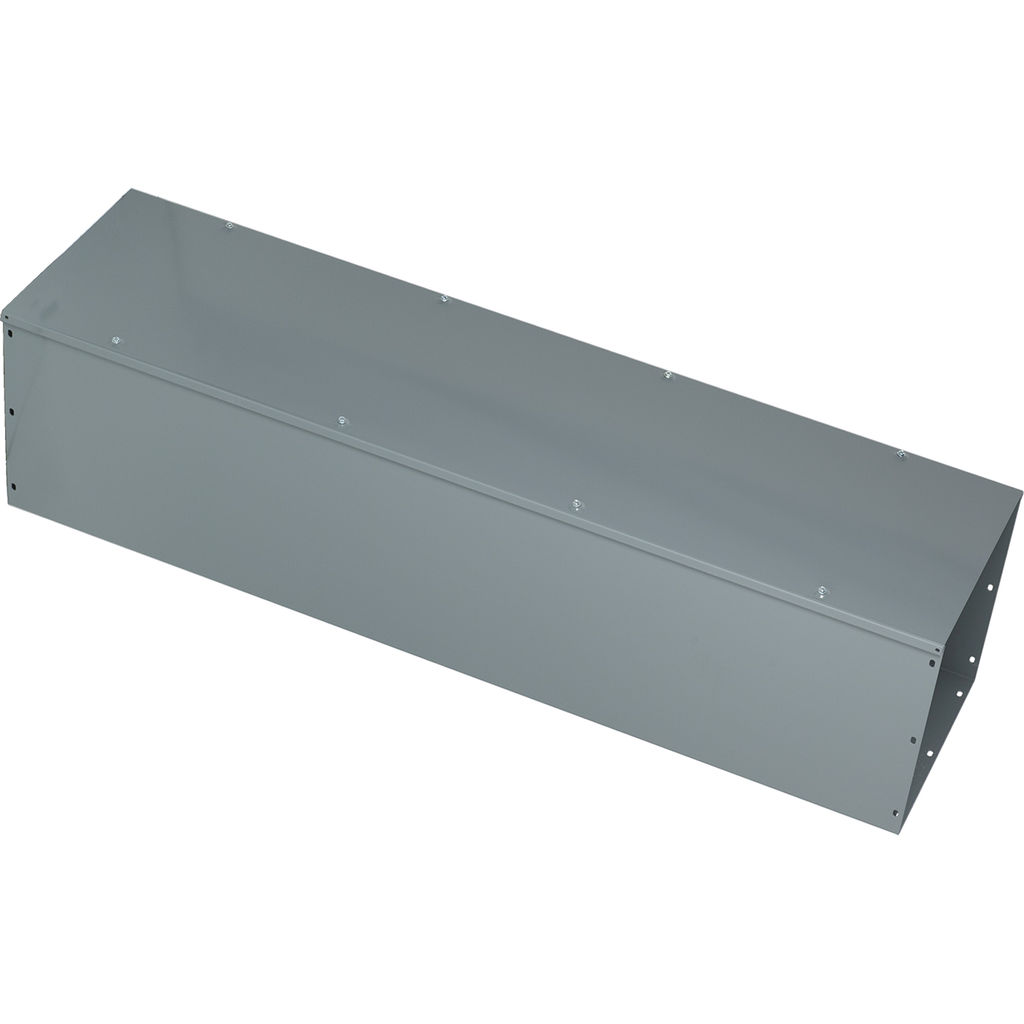

Wireway, Square-Duct, 12 inch by 12 inch, 4 feet long, hinged cover, N1 paint, NEMA 1

WIREWAY 12 x 12 - N1 Paint - 4

SQDLDB124 LDB124 785901104001
323.13 / EACH
http://schema.org/OutOfStock
  • Certifications: CSA, UL Listed
  • Enclosure Material: Steel
  • Warranty Length: 18 mth
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 12 inches by 12 inches and 4 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 12 inches by 12 inches and 4 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
  • Specifications
    • Product Certifications : UL Listed || CSA
    • Cover Type : hinged cover
    • Range Of Product : SQUARE-Duct
    • Enclosure Material : steel 14 gauge without knock-outs
    • Nema Degree Of Protection : NEMA 1
    • Surface Finish : Gray polyester powder ANSI 49
    • Trunking Length : 4 ft
    • Product Or Component Type : straight length
    • Trunking Dimension : 12 x 12 in
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
