Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 5.5 to 11kW

WEAR PART, ENCLOSURE DOOR, FAN

SQDVX5VPS2001 VX5VPS2001 3606480717383
106.70 / EA
http://schema.org/OutOfStock
Mayer-DDS-Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 5.5 to 11kW-1

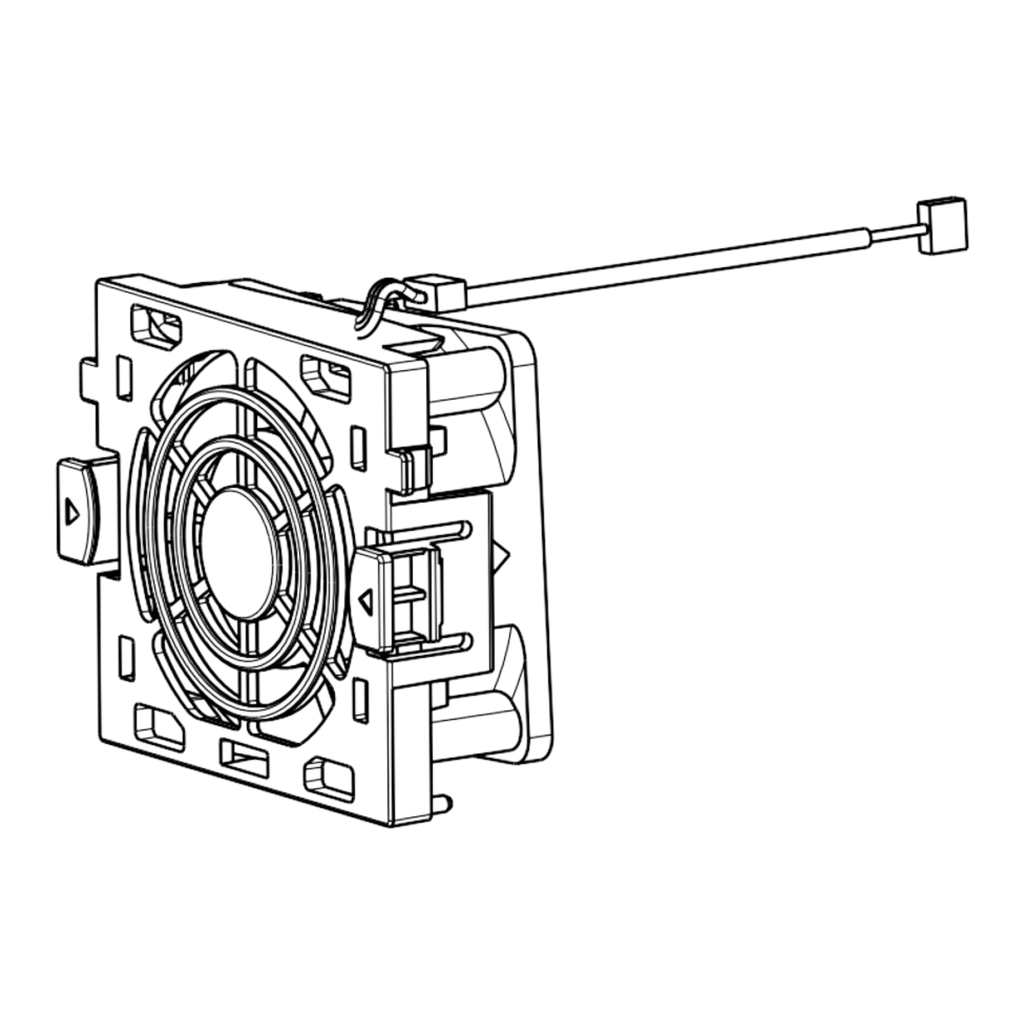

This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 5.5kw to 11kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 220g. This power fan is compatible with ATV630U55M3, ATV630U75N4 to D11N4, ATV650U75N4 to D11N4, ATV650U75N4E to D11N4E, ATV930U55M3, ATV930U75N4 to D11N4, ATV950U75N4 to D11N4, ATV950U75N4E to D11N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
QTY
  • Product Description
  • Features
  • Specifications
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 5.5kw to 11kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 220g. This power fan is compatible with ATV630U55M3, ATV630U75N4 to D11N4, ATV650U75N4 to D11N4, ATV650U75N4E to D11N4E, ATV930U55M3, ATV930U75N4 to D11N4, ATV950U75N4 to D11N4, ATV950U75N4E to D11N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Kit Composition : fan, mounting bracket, instruction sheet
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Service Catalog Item : Spare part
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1630
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fan
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category : cooling accessory
    • Accessory Separate Part Type : fan kit
    • Offer Owner Code : 190784
    • Pn : 1
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Product Compatibility : variable speed drive ATV930 wall mount 7.5-7.5 kW 380...480 V, variable speed drive ATV930 wall mount 11-11 kW 380...480 Vvariable speed drive ATV630 wall mount 5.5-5.5 kW 200...240 V, variable speed drive ATV630 wall mount 7.5-7.5 kW 380...480 V, variable speed drive ATV630 wall mount 11-11 kW 380...480 V, variable speed drive ATV930 wall mount 5.5-5.5 kW 200...240 V
    • Take Back : No
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : fan
  • ETIM
    • ETIM 8 : EC011012
    • ETIM 9 : EC011012
  • Specifications
    • Country of Origin : Argentina, Brazil, China, France, Georgia, Indonesia, Sweden, United States
