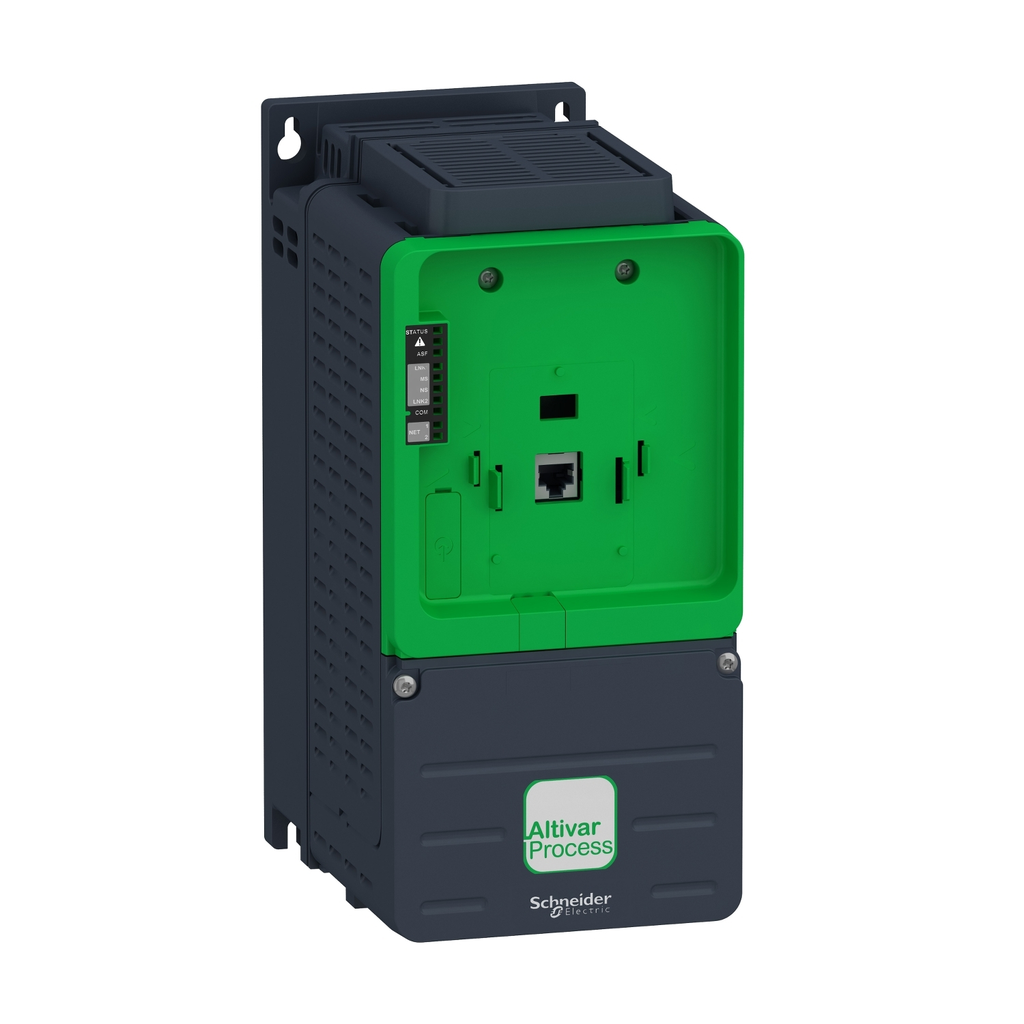

variable speed drive, Altivar Process ATV900, ATV930, 3hp, 380 to 480V, cabinet Integration, IP20, for US

Name: variable speed drive, Altivar Process ATV900, ATV930, 3hp, 380 to 480V, cabinet Integration, IP20, for US
Brand: Mayer Electric Supply
SKU: SQDATV930U22N4ZU
Price: 1759.76 USD
Availability: OutOfStock

VARIABLE SPEED DRIVE, ALTIVAR

SQDATV930U22N4ZU ATV930U22N4ZU 3606489740207

1759.76 / EA

http://schema.org/OutOfStock

Mayer-DDS-variable speed drive, Altivar Process ATV900, ATV930, 3hp, 380 to 480V, cabinet Integration, IP20, for US-1

Country of Origin: Indonesia

QTY

Features
Specifications

Environmental Class During Storage

class 1C3 according to EN 60721-3-1
class 1S2 according to EN 60721-3-1

US Rated Supply Voltage

380...480 V - 15...10 %

Exchange Mode

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001059_3D-CAD
https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004874_3D-CAD&p_File_name=MCADID0004874_3D-simplified.stp
https://download.schneider-electric.com/files?p_Doc_Re

Type Of Polarization

no impedance Modbus serial

Analogue Input Type

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits
AI1, AI2, AI3 software-configurable vo

Continuous Output Current

5.6 A 4 kHz normal duty
4 A 4 kHz heavy duty

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Analogue Output Type

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
software-configurable voltage AQ1, AQ2 0...10 V DC 47

Carbon Footprint Of The Installation Phase A5

0 kg CO2 eq.
0.0478085741

Carbon Footprint Of The End Of Life Phase C1 To C4

1.5488537037
2 kg CO2 eq.

Encoder Protocol

1 Vpp
EnDat 2.2
resolver
RS 422
SSI 24V
SSI 5V
TTL/HTL

Discrete Input Type

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm
DI1...DI8

Carbon Footprint Of The Manufacturing Phase A1 To A3

60 kg CO2 eq.
59.7083148148

Method Of Access

slave Modbus TCP

Line Current

4.3 A 380 V normal duty)
3.1 A 380 V heavy duty)
3.8 A 480 V normal duty)
2.9 A 480 V heavy duty)
2.9 A 48

Motor Slip Compensation

can be suppressed
not available in permanent magnet motor law
adjustable
automatic whatever the load

Variant

standard version
with braking chopper

Maximum Switching Current

relay output R1 resistive, cos phi = 1 3 A 250 V AC
relay output R1 resistive, cos phi = 1 3 A 250

Relay Output Type

configurable relay logic R1 fault relay NO/NC 100000 cycles
configurable r

Input Compatibility

DI1...DI8 discrete input level 1 PLC IEC 61131-2
DI7, DI8 pulse input level 1 PLC IEC 65A-68
DI7, DI8 pulse

Protection Type

thermal protection motor
safe torque off motor
motor phase break motor
thermal protection drive
safe torque off drive
overheating drive

Sampling Duration

2 ms +/- 0.5 ms DI1...DI8) - discrete input
5 ms +/- 1 ms DI7, DI8) - pulse input
5

Linearity Error

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
AQ1, AQ2 +/- 0.2 % analog output
AQ1, AQ2 +/- 0.2 % anal

Environmental Class During Operation

class 3C3 according to IEC 60721-3-3
class 3S3 according to IEC 60721-3-3

Motor Power KW

2.2 kW normal duty
1.5 kW heavy duty

Refresh Time

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Carbon Footprint Of The Use Phase B2 B3 B4 B6

3 250 kg CO2 eq.
3250.2385789963

Electromagnetic Compatibility

electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
radiated radio-frequency electro

Apparent Power

3.2 kVA 480 V normal duty)
2.4 kVA 480 V heavy duty)

Environmental Class During Transport

class 2C3 according to EN 60721-3-2
class 2S1 according to EN 60721-3-2

Number Of Addresses

1-247 Modbus serial

Maximum THDI

<48 % full load IEC 61000-3-12

Carbon Footprint Of The Distribution Phase A4

0.6322088889
0.6 kg CO2 eq.

Synchronous Motor Control Profile

permanent magnet motor
synchronous reluctance motor

Minimum Switching Current

relay output R1, R2, R3 5 mA 24 V DC

Operating Altitude

<= 3280.84 ft (1000 m) without derating
1000...4800 m with current derating 1 % per 100 m

Noise Level

54.5 dB 86/188/EEC

Asynchronous Motor Control Profile

constant torque standard
optimized torque mode
variable torque standard

Discrete Output Type

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA
logic output DQ+ 0-1 kHz <= 30 V DC 100

Maximum Transient Current

6.7 A 60 s normal duty)
6 A 60 s heavy duty)

Power Dissipation In W

natural convection 30 W 380 V 4 kHz
forced convection 60 W 380 V 4 kHz
force

Transmission Rate

10/100 Mbit/s Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Ambient Air Temperature For Operation

-15-50 °C (without derating)
50-60 °C (with derating factor)

Data Format

8 bits, configurable odd, even or no parity Modbus serial

Switching Frequency

2...16 kHz adjustable
4...16 kHz with derating factor

Complementary Attributes

Brake Chopper Integrated : true
Maximum Associated Fuse Rating : 10.0 A
Maximum Input Current Per Phase : 4.3 A
Maximum Output Voltage : 480.0 V
Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 8/18/2025
Device Type : Variable speed drive - VSD Compacts
Serviceability : No
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 10 year(s)
Manufacturing Carbon Footprint : 59.70831481
Distribution Carbon Footprint : 0.632208889
Installation Carbon Footprint : 0.047808574
Use Carbon Footprint : 3250.238579
End Of Life Carbon Footprint : 1.548853704
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : Outside of Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI2007009EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 2019
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
With Recycled Cardboard : Yes
Without Single Use Plastic : Yes
Product Contributes To Saved And Avoided Emissions : YES_SSI2
Return Indicator : Y
WD Status : A - SELECTED - PCE ONLY (Migration)
1 Phase Low Current Possible : FALSE
4 Quadrant Operation Possible : TRUE
Application In Domestic And Commercial Area Permitted : FALSE
Assembly Style : with heat sink
Base Load Current At High Overload : 4.0 A
Base Load Current At Low Overload : 5.6 A
Braking To Standstill : by DC injection
Computer Port : TRUE
Design Of Frequency Changer : U converter
Housing Material : plastic
Isolation : between power and control terminals
Maximum Associated Fuse Rating : 10.0 A
Maximum Input Current Per Phase : 4.3 A
Nominal Switching Frequency : 4 kHz
Number Of Hw Interfaces Industrial Ethernet : 2
Number Of Hw Interfaces Other : 0
Number Of Hw Interfaces Parallel : 0
Number Of Hw Interfaces Profinet : 0
Number Of Hw Interfaces Serial Rs232 : 0
Number Of Hw Interfaces Serial Rs422 : 0
Number Of Hw Interfaces Serial Rs485 : 1
Number Of Hw Interfaces Serial Tty : 0
Number Of Hw Interfaces Usb : 0
Number Of Output Phases : 3
Operating Element Present : TRUE
Optical Interface Present : FALSE
Package Weight Lbs : 4.69 kg
Phase : 3 phase
Power Loss Per Device Current Dependent : 98.0 W
Power Loss Static Current Independent : 14.0 W
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : variable speed drive
Product Specific Application : process for industrial
Range Of Product : Altivar Process ATV900
Relative Symmetric Mains Voltage Tolerance : 10%
Relative Symmetric Network Frequency Tolerance : 5%
Returnability : Yes
Supporting Protocol For As Interface Safety At Work : FALSE
Supporting Protocol For Asi : FALSE
Supporting Protocol For Bacnet : FALSE
Supporting Protocol For Can : TRUE
Supporting Protocol For Data Highway : FALSE
Supporting Protocol For Devicenet : FALSE
Supporting Protocol For Devicenet Safety : FALSE
Supporting Protocol For Ethernet Ip : TRUE
Supporting Protocol For Foundation Fieldbus : FALSE
Supporting Protocol For Interbus : FALSE
Supporting Protocol For Knx : FALSE
Supporting Protocol For Lon : FALSE
Supporting Protocol For Modbus : TRUE
Supporting Protocol For Other Bus Systems : FALSE
Supporting Protocol For Profibus : TRUE
Supporting Protocol For Profinet Cba : TRUE
Supporting Protocol For Profinet Io : TRUE
Supporting Protocol For Profisafe : FALSE
Supporting Protocol For Safetybus P : FALSE
Supporting Protocol For Sercos : FALSE
Supporting Protocol For Suconet : FALSE
Supporting Protocol For TCP IP : TRUE
Sustainable Packaging : Yes
Total Lifecycle Carbon Footprint : 3 312 kg CO2 eq.
Volume Of Cooling Air : 38 m3/h
With Safety Function Safe Programmable Logic : FALSE
EMC Limit Value Complied : TRUE
Number Of Inputs Bidirectional Not Potential Free : 0
Number Of Inputs Potential Free : 0
Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
With Safety Function Safe Brake Management Sbc Sbt : TRUE
With Safety Function Safe Direction SDI : FALSE
With Safety Function Safe Operating Stop Sos : FALSE
With Safety Function Safe Position Sp : FALSE
With Safety Function Safe Speed Monitor Ssm : FALSE
With Safety Function Safe Stop 1 SS1 : TRUE
With Safety Function Safe Torque Off Sto : TRUE
With Safety Function Safely Limited Position Slp : FALSE
With Safety Function Safely Limited Speed Sls : TRUE
With Sft Fct Safe Stop 2 Ss2 : FALSE
Carbon Footprint Kg Co2 Eq Total Life Cycle : 3312.175765
Application In Industrial Area Permitted : TRUE
Supporting Protocol For Interbus Safety : FALSE
Pep Code : ENVPEP2007009EN
Pep Verification Date : 9/1/2020
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent external review
Product Weight In G : 4900
Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 5.5 kW electric motors for fluid management and industrial applications in IP20/UL type 12 conditions, at 380V to 480V rated 3-phase volta
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 5504.959
Energy Model Manufacturing A1 A3 : Energy model used: China
Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.024418532
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.024270426
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 2.53E-08
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.8E-09
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000148063
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 1.61E-08
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 34144.9734
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 648.2337037
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 8.881975926
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.618416296
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 33481.13844
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 6.100862963
Exported Energy Mj By Energy Vector Total Life Cycle : 0.002438521
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000207932
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.002230589
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 91.44599108
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 84.97507407
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 1.33008E-05
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 6.470903704
Materials For Energy Recovery Kg Total Life Cycle : 0.317039091
Materials For Energy Recovery Kg Manufacturing A1 A3 : 1.65E-08
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.317039074
Materials For Recycling Kg Total Life Cycle : 3.868704259
Materials For Recycling Kg Manufacturing A1 A3 : 0.35525
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.833426482
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 2.680027778
Net Use Of Fresh Water M3 Total Life Cycle : 8.876847972
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.398397222
Net Use Of Fresh Water M3 Distribution A4 : 5.65796E-05
Net Use Of Fresh Water M3 Installation A5 : 0.000006606
Net Use Of Fresh Water M3 Operational Energy Use B6 : 8.477362557
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.001025007
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 12185.14451
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 27.19772222
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.022461963
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.040030278
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 12157.86241
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.021886667
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000796485
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 6.8763E-06
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 1.3E-09
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1E-10
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000789539
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 6.83E-08
Radioactive Waste Disposed Of Kg Total Life Cycle : 9.929028107
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.018737056
Radioactive Waste Disposed Of Kg Distribution A4 : 1.59985E-05
Radioactive Waste Disposed Of Kg Installation A5 : 1.7952E-06
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 9.91022891
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 4.43477E-05
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 62020.01668
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 869.4233333
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 8.927074074
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.623461482
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 61133.33756
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 7.70525
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 66765.52745
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 901.7633333
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 8.938961111
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.624985926
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 65846.48739
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 7.712781482
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4743.961797
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 32.33909259
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.011912444
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00152263
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4711.601714
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.007555619
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 56.13766667
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 56.13766667
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 61963.87538
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 813.282037
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 8.927074074
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.623461482
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 61133.33756
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 7.70525
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15.32157407
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 15.32157407
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4728.640223
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 17.01751852
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.011912444
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00152263
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4711.601714
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.007555619
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.66983
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.66983
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 146648.6381
Air Pollution M3 Manufacturing A1 A3 : 7172.692593
Air Pollution M3 Distribution A4 : 26.89374074
Air Pollution M3 Installation A5 : 2.135311111
Air Pollution M3 Operational Energy Use B6 : 139393.413
Air Pollution M3 End Of Life C1 C4 : 53.50346296
Water Pollution M3 Total Life Cycle : 143991.0559
Water Pollution M3 Manufacturing A1 A3 : 7266.972222
Water Pollution M3 Distribution A4 : 103.9616667
Water Pollution M3 Installation A5 : 7.231311111
Water Pollution M3 Operational Energy Use B6 : 136383.1896
Water Pollution M3 End Of Life C1 C4 : 229.7011111
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 24.72341145
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 1.176682632
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 1.001223549
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.139822407
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.002886554
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000200474
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 24.57890434
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.001597672
Global Warming Kg Equivalent Co2 Total Life Cycle : 3312.175765
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 59.70831481
Global Warming Kg Equivalent Co2 Distribution A4 : 0.632208889
Global Warming Kg Equivalent Co2 Installation A5 : 0.047808574
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 3250.238579
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 1.548853704
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.014592019
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000205991
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 1.49305E-05
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 1.161716894
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000152798
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.078554259
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.000664857
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 5.87301E-05
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.92135772
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000587982
Warranty In Months : 18

General Attributes

Phase : 3 phase
Product Or Component Type : variable speed drive
Range Of Product : Altivar Process ATV900

Output Attributes

Maximum Output Voltage : 480.0 V
Relay Output Number : 3

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=505787695&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0%
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 3312.175765
Ambient Air Transport Temperature : -40-70 °C
Circularity Profile : ENVEOLI2007009EN
Environmental Disclosure : ENVPEP2007009EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : Yes
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
Pep Code : ENVPEP2007009EN
Pep Verification Date : 9/1/2020
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent external review

Input Attributes

Number Of Input Phases : 3

Specifications

Country of Origin : Indonesia

variable speed drive, Altivar Process ATV900, ATV930, 3hp, 380 to 480V, cabinet Integration, IP20, for US

VARIABLE SPEED DRIVE, ALTIVAR

characters left.
