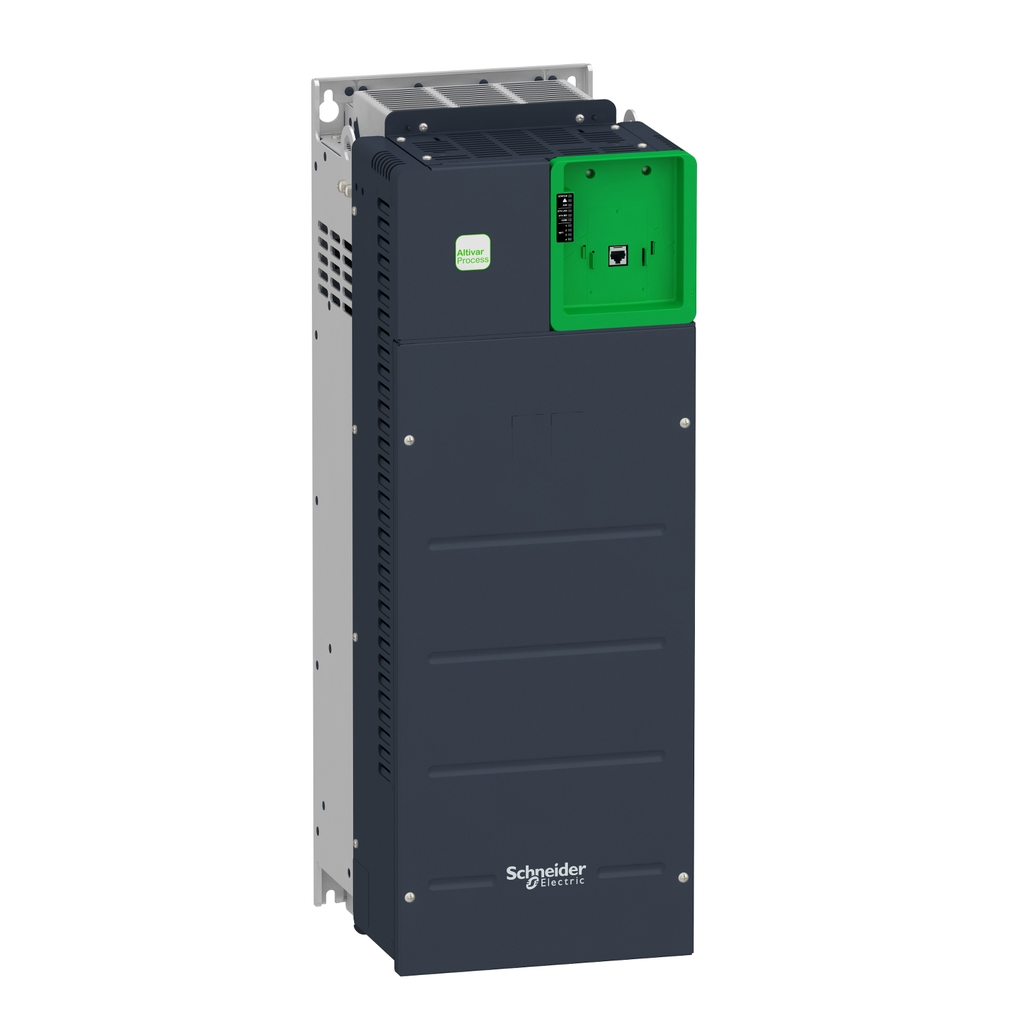

variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 55kW, 380...480V, for US

VARIABLE SPEED DRIVE, ALTIVAR

SQDATV630D55N4ZU ATV630D55N4ZU 3606489739980
7360.98 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 55kW, 380...480V, for US-1
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : UL 508C, IEC 61800-3, environment 1 category C2 IEC 61800-3, environment 1 category C2 IEC 61800-3, environment 2 category C3 IEC 61800-3, environment 2 category C3 IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
  • Complementary Attributes
    • Maximum Horse Power Rating : 75 hp normal duty, 75 hp normal duty, 60 hp heavy duty, 60 hp heavy duty
    • Maximum Switching Current : relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
    • Maximum THDI : <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    • Maximum Transient Current : 116.6 A 60 s normal duty), 116.6 A 60 s normal duty), 116.6 A 60 s normal duty), 132 A 60 s heavy duty), 132 A 60 s heavy duty), 132 A 60 s heavy duty)
    • Minimum Switching Current : relay output R1, R2, R3 5 mA 24 V DC, relay output R1, R2, R3 5 mA 24 V DC, relay output R1, R2, R3 5 mA 24 V DC, relay output R1, R2, R3 5 mA 24 V DC, relay output R1, R2, R3 5 mA 24 V DC
    • US Rated Supply Voltage : 380...480 V - 15...10 %, 380...480 V - 15...10 %
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 160.0 A
    • Maximum Input Current Per Phase : 97.2 A
    • Maximum Output Voltage : 480.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Environment Attributes Additional
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; China, CN
    • Energy Model Installation A5 : No energy used
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 75.56308662113936
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 4.047587745662132
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.019892398317717767
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.020495996999741396
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 71.17221322411463
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.30289725604514556
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0567466775836133
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C BLB SysBound D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 298.7275518601169
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -12.440578979212185
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0.00005154553913261472
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 10.364285419684366
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 300.32985384597345
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.47394002813212616
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 6.365744204719954
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 13891.290876460682
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 495.8162153379888
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 12.598032737633787
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 4.84964929614766
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 13296.209182820061
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 81.81779626885077
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -7.5258053498750295
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 14190.018841715308
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 483.37599269207203
    • Climate Change Total Kg Co2 Eq Distribution A4 : 12.59810333451273
    • Climate Change Total Kg Co2 Eq Installation A5 : 15.213934932189526
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 13596.539036666036
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 82.2917740904981
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.1600611451550744
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.045029803394351905
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.04060379595060906
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000449309328578197
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000040122851826272
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.004408411290823194
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00001270183111560202
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb BLB SysBound D : -0.001000059767012137
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 341542.39962172264
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 14171.109486652573
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 223.66269325724195
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 62.53062562942196
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 326076.9065997005
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1008.1902164829122
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -160.9903614653881
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 31669.179035124453
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 9445.430799805301
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 367.47273786637044
    • Ecotoxicity Fresh Water Ctue Installation A5 : 73.7474253363927
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 20383.33426861921
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 1399.1938034971777
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -92.58045563186803
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0005893787730069295
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00002990235947367577
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000017070785238492
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000012531622523445
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0005572173156111878
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000196307384444655
    • Emission Of Fine Particles Incidence Of Diseases BLB SysBound D : -0.00000166967219792672
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.03491806851798531
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.001969720624643125
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00004706854267216718
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000471199802670188
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.03256558976000001
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.000288569610402988
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00008840176782915976
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1148.6872518320338
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1138.9314105633018
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.052689122615495916
    • Hazardous Waste Disposed Of Kg Installation A5 : 1.2137429095251222
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 8.489409236591326
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -78.3348047416182
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00003348796101232346
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00002576632459886488
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000246797317246
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000034889821286242
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000168169580675376
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000568857442066995
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000097163218590168
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00005849891881586723
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00001739474460837386
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000004705964508667
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000208933153004
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00003983348387099246
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000120273737611383
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000044625552349777
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 368.2263175832391
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 6.693723453040947
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0.053892078697137705
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.03500260999534139
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 360.5294329427011
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.9142664988045995
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.4414516974047449
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 18058.74210113975
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 254.27255229196783
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.4456447494292879
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.8695502147158204
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 17788.95302598653
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 14.201327897105449
    • Ionizing Radiation Human Health Kbq Of U235 Equiv BLB SysBound D : -2.2648210885559252
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 8.804743896357612
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.43079753800261
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.003607112343804956
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.006089284679333525
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 8.327667322477035
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.036582638854827404
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.008216646297281438
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 59.76948736694366
    • Materials For Recycling Kg Manufacturing A1 A3 : 7.0054206772501875
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 5.0732410534509755
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 47.690825636242494
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 29.98492922447903
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 5.519683409483796
    • Net Use Of Fresh Water M3 Distribution A4 : 0.010559358033891634
    • Net Use Of Fresh Water M3 Installation A5 : 0.023928999898346202
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 24.08910261060847
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.34165484645452343
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.10329223821052723
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2548.8057233960644
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 450.4374907360583
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 1.1689345539730243
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 1.1651649848058845
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2049.4813023166125
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 46.55283080461476
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3.956742560951052
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00010915739129959864
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00004791798635699347
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000015278290158642
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000008651454633425
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00005824067571836022
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000275943177632428
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000086695558343735
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 28.069343318108686
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 1.51275493646224
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.01279620731437779
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.01259223090274393
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 26.40421099660038
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.12698894682894593
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.02676531615066589
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.8056634277746955
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.3175365619215468
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0009260621234055109
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00027640989899839415
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.48299233597550956
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00393205785523522
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.001865121760083296
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 138.8235259163854
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 4.759514180399699
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.03958464845000541
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.05520280574416224
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 133.54422302848405
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.42500125330748334
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.07836424794530719
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj TLC : 237.73236823256337
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Mfg A1 A3 : 237.73236823256337
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Dist A4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Inst A5 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Maint B2 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Repair B3 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj Replament B4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj EoL C1 C4 : 0
    • Total Use Of NRE PrE Resources And PrE Resources Used As RawMats Mj BLB SysBound D : -26.779319962672275
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 418639.34669597057
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 14814.849903552484
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 224.36790744935627
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 99.91437079417877
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 402432.06274522835
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1068.1517689462005
    • Total Use Of PrE During The Life Cycle Mj BLB SysBound D : -235.94078419491777
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj TLC : 77096.94415147092
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Mfg A1 A3 : 643.7374941229415
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Dist A4 : 0.7052141921143613
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Inst A5 : 37.38374516475679
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Maint B2 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Repair B3 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj Replament B4 : 0
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj OpEnergy B6 : 76355.15614552783
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj EoL C1 C4 : 59.961552463288456
    • Total Use Of RE PrE Resources And PrE Resources Used As RawMats Mj BLB SysBound D : -74.95042272952962
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 237.73236823256337
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 237.73236823256337
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of NRE PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of NRE PrE Resources Used As RawMats Mj BLB SysBound D : -26.779319962672275
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj TLC : 341304.67017626704
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Mfg A1 A3 : 13933.380041196979
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Dist A4 : 223.66269325724195
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Inst A5 : 62.53062562942196
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Maint B2 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Repair B3 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj Replacement B4 : 0
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj OpEnergy B6 : 326076.9065997005
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj EoL C1 C4 : 1008.1902164829122
    • Use Of NRE PrE Excluding NRE PrE Resources Used As RawMats Mj BLB SysBound D : -134.21104150271583
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 188.06804826904477
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 188.06804826904477
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of RE PrE Resources Used As RawMats Mj OpEnergy B6 : 0
    • Use Of RE PrE Resources Used As RawMats Mj BLB SysBound D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -83.24765592907119
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj TLC : 76908.87610320188
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Mfg A1 A3 : 455.66944585389655
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Dist A4 : 0.7052141921143613
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Inst A5 : 37.38374516475679
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Maint B2 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Repair B3 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj Replacement B4 : 0
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj OpEnergy B6 : 76355.15614552783
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj EoL C1 C4 : 59.961552463288456
    • Use Of RE PrE Excluding RE PrE Resources Used As RawMats Mj BLB SysBound D : 8.297233199541573
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 2.8016121662953304
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 2.8016121662953304
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 1279.2333384021806
    • Water Use M3 Eq Manufacturing A1 A3 : 236.29668516109604
    • Water Use M3 Eq Distribution A4 : 0.45350636975966196
    • Water Use M3 Eq Installation A5 : 0.39808402017962047
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1030.722191213079
    • Water Use M3 Eq End Of Life C1 C4 : 11.362871638066235
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -4.435904447782212
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • Important Information Attributes
    • Apparent Power : 70 kVA 480 V normal duty), 70 kVA 480 V normal duty), 70 kVA 480 V normal duty), 59.7 kVA 480 V heavy duty), 59.7 kVA 480 V heavy duty), 59.7 kVA 480 V heavy duty)
    • Asynchronous Motor Control Profile : constant torque standard, optimized torque mode, variable torque standard
    • Connector Type : RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Modbus serial
    • Discrete And Process Manufacturing : building - HVAC compressor centrifugal, building - HVAC compressor centrifugal, food and beverage processing other application, food and beverage processing other application, mining mineral and metal fan, mining mineral and metal fan, mining mineral and metal pump, mining mineral and metal pump, oil and gas fan, oil and gas fan, water and waste water other application, water and waste water other application, building - HVAC screw compressor, building - HVAC screw compressor, food and beverage processing pump, food and beverage processing pump, food and beverage processing fan, food and beverage processing fan, food and beverage processing atomization, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas water injection pump, oil and gas jet fuel pump, oil and gas jet fuel pump, oil and gas compressor for refinery, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water positive displacement pump, water and waste water electro submersible pump (ESP), water and waste water electro submersible pump (ESP), water and waste water screw pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water lobe compressor, water and waste water screw compressor, water and waste water screw compressor, water and waste water compressor centrifugal, water and waste water compressor centrifugal, water and waste water fan, water and waste water fan, water and waste water conveyor, water and waste water conveyor, water and waste water mixer, water and waste water mixer
    • Electrical Connection : control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, line side screw terminal 70...120 mm² AWG 1/0...250 kcmil, line side screw terminal 70...120 mm² AWG 1/0...250 kcmil, line side screw terminal 70...120 mm² AWG 1/0...250 kcmil, line side screw terminal 70...120 mm² AWG 1/0...250 kcmil, motor screw terminal 70...120 mm² AWG 1/0...250 kcmil, motor screw terminal 70...120 mm² AWG 1/0...250 kcmil, motor screw terminal 70...120 mm² AWG 1/0...250 kcmil, motor screw terminal 70...120 mm² AWG 1/0...250 kcmil
    • Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    • EMC Filter : integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, with EMC plate option
    • Exchange Mode : half duplex, full duplex, autonegotiation Ethernet/Modbus TCP, half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    • Frequency Resolution : display unit 0.1 Hz, display unit 0.1 Hz, analog input 0.012/50 Hz, analog input 0.012/50 Hz
    • Insulation Resistance : > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    • Line Current : 97.2 A 380 V normal duty), 97.2 A 380 V normal duty), 97.2 A 380 V normal duty), 84.2 A 480 V normal duty), 84.2 A 480 V normal duty), 84.2 A 480 V normal duty), 81.4 A 380 V heavy duty), 81.4 A 380 V heavy duty), 81.4 A 380 V heavy duty), 71.8 A 480 V heavy duty), 71.8 A 480 V heavy duty), 71.8 A 480 V heavy duty)
    • Linearity Error : AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output, AO1, AO2 +/- 0.2 % analog output, AO1, AO2 +/- 0.2 % analog output
    • Local Signalling : 3 LEDs for local diagnostic, 3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 3 LEDs (dual colour) for embedded communication status, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 4 LEDs (dual colour) for communication module status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 1 LED (red) for presence of voltage, 1 LED (red) for presence of voltage
    • Method Of Access : slave Modbus TCP, slave Modbus TCP
    • Motor Power KW : 55 kW normal duty), 55 kW normal duty), 45 kW heavy duty), 45 kW heavy duty)
    • Motor Slip Compensation : adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    • Noise Level : 62.4 dB 86/188/EEC, 62.4 dB 86/188/EEC
    • Number Of Addresses : 1-247 Modbus serial, 1-247 Modbus serial
    • Option Card : slot A communication module, Profibus DP V1, slot A communication module, Profibus DP V1, slot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, PROFINET, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, DeviceNet, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A communication module, CANopen screw terminals, slot A communication module, CANopen screw terminals, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, communication module, Ethernet Powerlink
    • Permissible Temporary Current Boost : 1.1 x In 60 s normal duty), 1.1 x In 60 s normal duty), 1.1 x In 60 s normal duty), 1.5 x In 60 s heavy duty), 1.5 x In 60 s heavy duty), 1.5 x In 60 s heavy duty)
    • Power Dissipation In W : natural convection 131 W 380 V 2.5 kHz, natural convection 131 W 380 V 2.5 kHz, natural convection 131 W 380 V 2.5 kHz, natural convection 131 W 380 V 2.5 kHz, forced convection 917 W 380 V 2.5 kHz, forced convection 917 W 380 V 2.5 kHz, forced convection 917 W 380 V 2.5 kHz, forced convection 917 W 380 V 2.5 kHz
    • Power Range : 55-100 kW 380-440 V 3 phase, 55-100 kW 380-440 V 3 phase, 55-100 kW 380-440 V 3 phase, 55-100 kW 480-500 V 3 phase, 55-100 kW 480-500 V 3 phase, 55-100 kW 480-500 V 3 phase
    • Protection Type : thermal protection motor, thermal protection motor, safe torque off motor, safe torque off motor, motor phase break motor, motor phase break motor, thermal protection drive, thermal protection drive, safe torque off drive, safe torque off drive, overheating drive, overheating drive, overcurrent between output phases and earth drive, overcurrent between output phases and earth drive, overload of output voltage drive, overload of output voltage drive, short-circuit protection drive, short-circuit protection drive, motor phase break drive, motor phase break drive, overvoltages on the DC bus drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply overvoltage drive, line supply undervoltage drive, line supply undervoltage drive, line supply phase loss drive, line supply phase loss drive, overspeed drive, overspeed drive, break on the control circuit drive, break on the control circuit drive
    • Refresh Time : relay output R1, R2, R3)5 ms +/- 0.5 ms), relay output R1, R2, R3)5 ms +/- 0.5 ms), relay output R1, R2, R3)5 ms +/- 0.5 ms), relay output R1, R2, R3)5 ms +/- 0.5 ms)
    • Safety Function : STO (safe torque off) SIL 3, STO (safe torque off) SIL 3
    • Sampling Duration : 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 10 ms +/- 1 ms AO1) - analog output, 10 ms +/- 1 ms AO1) - analog output, 10 ms +/- 1 ms AO1) - analog output
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27, 15 gn 11 ms IEC 60068-2-27, 15 gn 11 ms IEC 60068-2-27
    • Supply : external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
    • Supply Frequency : 50...60 Hz - 5...5 %, 50...60 Hz - 5...5 %
    • Switching Frequency : 2.5...8 kHz with derating factor, 2.5...8 kHz with derating factor, 2...8 kHz adjustable, 2...8 kHz adjustable
    • Synchronous Motor Control Profile : permanent magnet motor, synchronous reluctance motor
    • Vibration Resistance : 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    • Environmental Class During Storage : class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    • Environmental Class During Transport : class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    • Carbon Footprint Of The Distribution Phase A4 : 12.59810333451273, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 82.2917740904981, 82 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 15 kg CO2 eq., 15.213934932189526
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 483 kg CO2 eq., 483.37599269207203
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 597 kg CO2 eq., 13596.539036666036
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-19
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1812007EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Assembly Style : with heat sink
    • Base Load Current At High Overload : 88.0 A
    • Base Load Current At Low Overload : 106.0 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 5600.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV630
    • Enclosure Mounting : with heat sink
    • Functionality : full
    • Housing Material : sheet steel
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 160.0 A
    • Maximum Input Current Per Phase : 97.2 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 2.5 kHz
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 68.7 kg
    • Power Loss Per Device Current Dependent : 1228.0 W
    • Power Loss Static Current Independent : 32.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : utility
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 14 190 kg CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 295 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : true
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : false
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1812007EN
    • Pep Verification Date : 2025-07-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 90 kW for heavy duty electric motors for fluid management and industrial applications in IP00/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -15-50 °C (without derating), -15-50 °C (without derating), 50-60 °C (with derating factor), 50-60 °C (with derating factor)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20IEC 61800-5-1, IP20IEC 61800-5-1, IP00 at bottom terminals)IEC 60529, IP00 at bottom terminals)IEC 60529, IP00 at bottom terminals)IEC 60529
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m, 1000...4800 m with current derating 1 % per 100 m
    • Relative Humidity : 5-95 % without condensation IEC 60068-2-3, 5-95 % without condensation IEC 60068-2-3, 5-95 % without condensation IEC 60068-2-3
    • Environmental Class During Operation : class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 14190.018841715308
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1812007EN
    • Environmental Disclosure : ENVPEP1812007EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1812007EN
    • Pep Verification Date : 2025-07-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Analogue Output Type : software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA, software-configurable current DQ-, DQ+ 100 mA, software-configurable current DQ-, DQ+ 100 mA
    • Continuous Output Current : 106 A 2.5 kHz normal duty, 106 A 2.5 kHz normal duty, 106 A 2.5 kHz normal duty, 88 A 2.5 kHz heavy duty, 88 A 2.5 kHz heavy duty, 88 A 2.5 kHz heavy duty
    • Discrete Output Type : relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA
    • Relay Output Type : configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
    • Maximum Output Voltage : 480.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Surge Protection And Filtering Attributes
    • EMC Filter : integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, integrated 50 m IEC 61800-3 category C3, with EMC plate option
  • Input Attributes
    • Analogue Input Type : AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    • Discrete Input Logic : positive logic (source) DI1...DI8), < 5 V, > 11 V, positive logic (source) DI1...DI8), < 5 V, > 11 V, positive logic (source) DI1...DI8), < 5 V, > 11 V, positive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V
    • Discrete Input Type : DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • Input Compatibility : DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI5, DI6 discrete input level 1 PLC IEC 65A-68, DI5, DI6 discrete input level 1 PLC IEC 65A-68, DI5, DI6 discrete input level 1 PLC IEC 65A-68, DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2, STOA, STOB discrete input level 1 PLC IEC 61131-2, STOA, STOB discrete input level 1 PLC IEC 61131-2, STOA, STOB discrete input level 1 PLC IEC 61131-2
    • Number Of Input Phases : 3
