variable speed drive, Altivar Process ATV600, ATV650, 2.2kW, 3hp -380, 480V, IP55, UL type12, disc.switch

variable speed drive, Altivar Process ATV600, ATV650, 2.2kW, 3hp -380, 480V, IP55, UL type12, disc.switch

SQDATV650U22N4EU ATV650U22N4EU 3606480907005
2220.84 / EA
http://schema.org/OutOfStock

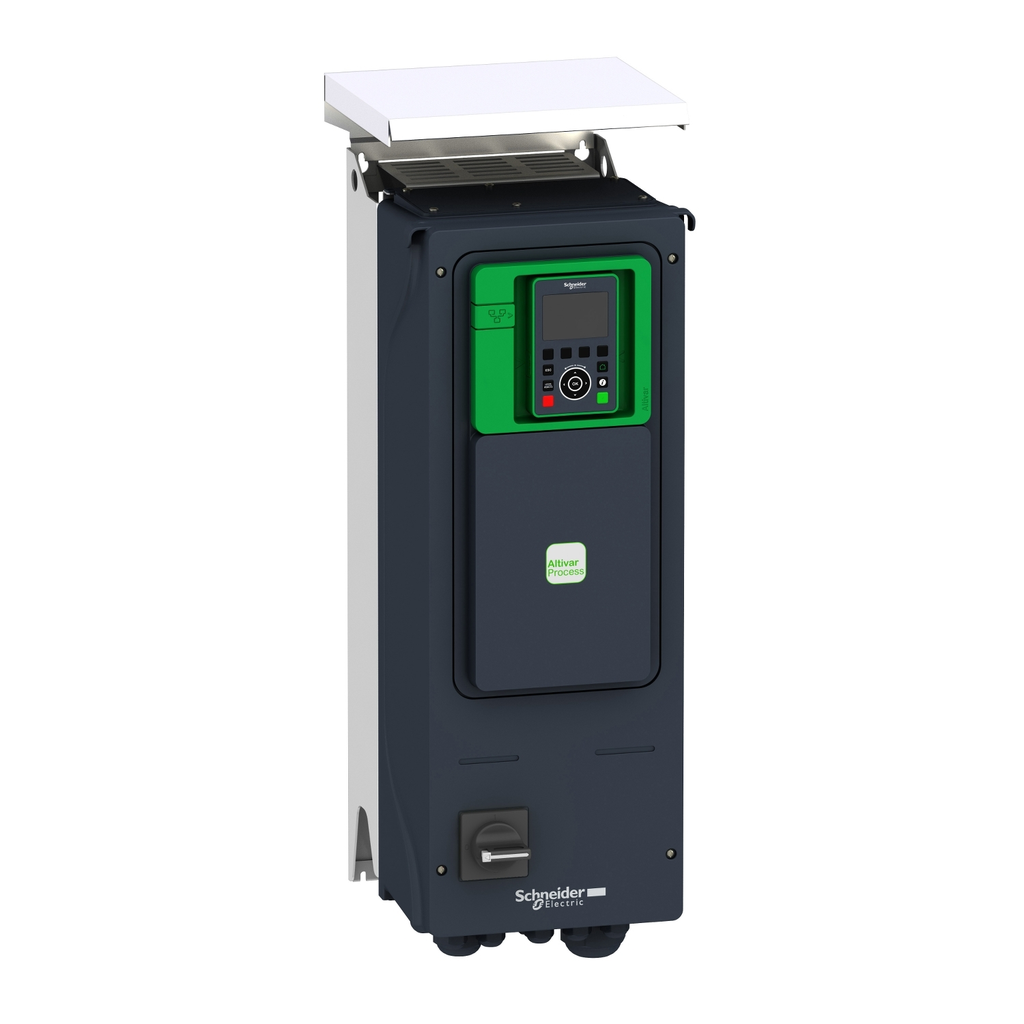

Mayer-DDS-variable speed drive, Altivar Process ATV600, ATV650, 2.2kW, 3hp -380, 480V, IP55, UL type12, disc.switch-1
  • Country of Origin: China
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 50m and 150m cable conforming to categories C2 and C3. It works at a rated suppl
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 50m and 150m cable conforming to categories C2 and C3. It works at a rated suppl
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Connector Type
    • RJ45 on the remote graphic terminal)Modbus serial
    • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • RJ45 on the remote graphic terminal)Ethernet/Mod
  • US Rated Supply Voltage
    • 380...480 V - 15...10 %
  • Exchange Mode
    • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • Analogue Input Type
    • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
    • AI1, AI2, AI3 software-configura
  • IP Degree Of Protection
    • IP55IEC 60529
    • IP55IEC 61800-5-1
  • Continuous Output Current
    • 4 A 4 kHz heavy duty
    • 5.6 A 4 kHz normal duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
    • software-configurable voltage AQ1, AQ2 0...10 V DC 47
  • Carbon Footprint Of The Installation Phase A5
    • 7 kg CO2 eq.
    • 7.3855676626
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 3.0232671353
    • 3 kg CO2 eq.
  • Standards
    • environment 1 category C2 IEC 61800-3
    • environment 2 category C3 IEC 61800-3
    • IEC 61800-5-1
    • IEC 61000-3-12
    • IEC 60721-3
    • IEC 61508
    • IEC 13849-1
    • IEC 61800-3
  • Discrete Input Type
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
  • Electrical Connection
    • line side screw terminal 4...6 mm²
    • motor screw terminal 4...6 mm²
    • control removable screw terminals 0.5...1.5 mm²
    • control
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 187 kg CO2 eq.
    • 186.5945079086
  • Method Of Access
    • slave Modbus TCP
  • Line Current
    • 3.8 A 480 V normal duty)
    • 3.1 A 380 V heavy duty)
    • 2.9 A 480 V heavy duty)
    • 4.3 A 380 V normal duty)
    • 4.3 A 380
  • Motor Slip Compensation
    • adjustable
    • can be suppressed
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC
    • relay output R1, R
  • Relay Output Type
    • configurable relay logic R2 sequence relay NO 100000 cycles
    • configurable r
  • Input Compatibility
    • DI5, DI6 discrete input level 1 PLC IEC 65A-68
    • STOA, STOB discrete input level 1 PLC IEC 61131-2
    • STOA, STOB discr
  • Frequency Resolution
    • analog input 0.012/50 Hz
    • display unit 0.1 Hz
  • Protection Type
    • safe torque off motor
    • motor phase break motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
    • overcurrent between output phase
  • Supply
    • internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
    • internal
  • Permissible Temporary Current Boost
    • 1.5 x In 60 s heavy duty)
    • 1.1 x In 60 s normal duty)
  • Sampling Duration
    • 5 ms +/- 1 ms DI5, DI6) - discrete input
    • 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input
    • 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog inpu
  • Linearity Error
    • AO1, AO2 +/- 0.2 % analog output
    • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • AI1, AI2, AI3 +/- 0.15 % of maximum value ana
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 2 hp heavy duty
    • 3 hp normal duty
  • Vibration Resistance
    • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IE
  • Option Card
    • slot A communication module, PROFINET
    • slot A communication module, DeviceNet
    • slot A communication mo
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 1.5 kW heavy duty)
    • 2.2 kW normal duty)
  • Refresh Time
    • relay output R1, R2, R3)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 3 261 kg CO2 eq.
    • 3261.0999476094
  • Electromagnetic Compatibility
    • radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    • radiated radio-frequency electromagnetic field immunity test
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 2.4 kVA 480 V heavy duty)
    • 3.2 kVA 480 V normal duty)
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Number Of Addresses
    • 1-247 Modbus serial
  • Maximum THDI
    • <48 % full load IEC 61000-3-12
  • EMC Filter
    • integrated 50 m IEC 61800-3 category C2
    • integrated 150 m IEC 61800-3 category C3
    • integrated 1
  • Carbon Footprint Of The Distribution Phase A4
    • 2.9586700351
    • 3 kg CO2 eq.
  • Synchronous Motor Control Profile
    • synchronous reluctance motor
    • permanent magnet motor
  • Minimum Switching Current
    • relay output R1, R2, R3 5 mA 24 V DC
  • Operating Altitude
    • 1000...4800 m with current derating 1 % per 100 m
    • <= 3280.84 ft (1000 m) without derating
  • Noise Level
    • 52 dB 86/188/EEC
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI8), < 5 V, > 11 V
    • negative logic (sink) DI1...DI8), > 16 V, < 10 V
    • negat
  • Asynchronous Motor Control Profile
    • constant torque standard
    • optimized torque mode
    • variable torque standard
  • Discrete Output Type
    • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
    • relay outputs R1A, R1B, R1C 3
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 6.2 A 60 s normal duty)
    • 6 A 60 s heavy duty)
  • Local Signalling
    • 3 LEDs (dual colour) for embedded communication status
    • 4 LEDs (dual colour) for communication module status
    • 4 LEDs (dual colour) for communicati
  • Ambient Air Temperature For Operation
    • 40-50 °C (with derating factor)
    • -15-40 °C (without derating)
  • UE Rated Operational Voltage
    • 380...480 V 2.2 kW 3 hp normal duty
    • 380...480 V 1.5 kW 2 hp heavy duty
    • 380..
  • Switching Frequency
    • 4...12 kHz with derating factor
    • 2...12 kHz adjustable
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001018_3D-CAD
  • Complementary Attributes
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 10.0 A
    • Maximum Input Current Per Phase : 4.3 A
    • Maximum Output Voltage : 480.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 186.5945079
    • Distribution Carbon Footprint : 2.958670035
    • Installation Carbon Footprint : 7.385567663
    • Use Carbon Footprint : 3261.099948
    • End Of Life Carbon Footprint : 3.023267135
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1508009EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1923
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : FALSE
    • 4 Quadrant Operation Possible : FALSE
    • Application In Domestic And Commercial Area Permitted : FALSE
    • Base Load Current At High Overload : 4.0 A
    • Base Load Current At Low Overload : 5.6 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 235.0 µF
    • Computer Port : TRUE
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV650
    • Enclosure Mounting : wall mounted
    • Housing Material : plastic
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 10.0 A
    • Maximum Input Current Per Phase : 4.3 A
    • Nominal Switching Frequency : 4 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 1
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : TRUE
    • Optical Interface Present : FALSE
    • Package Weight Lbs : 23.405 kg
    • Power Loss Per Device Current Dependent : 98.0 W
    • Power Loss Static Current Independent : 14.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10%
    • Relative Symmetric Network Frequency Tolerance : 5%
    • Returnability : Yes
    • Supporting Protocol For As Interface Safety At Work : FALSE
    • Supporting Protocol For Asi : FALSE
    • Supporting Protocol For Bacnet : FALSE
    • Supporting Protocol For Can : TRUE
    • Supporting Protocol For Data Highway : FALSE
    • Supporting Protocol For Devicenet : FALSE
    • Supporting Protocol For Devicenet Safety : FALSE
    • Supporting Protocol For Ethernet Ip : TRUE
    • Supporting Protocol For Foundation Fieldbus : FALSE
    • Supporting Protocol For Interbus : FALSE
    • Supporting Protocol For Knx : FALSE
    • Supporting Protocol For Lon : FALSE
    • Supporting Protocol For Modbus : TRUE
    • Supporting Protocol For Other Bus Systems : FALSE
    • Supporting Protocol For Profibus : TRUE
    • Supporting Protocol For Profinet Cba : TRUE
    • Supporting Protocol For Profinet Io : TRUE
    • Supporting Protocol For Profisafe : FALSE
    • Supporting Protocol For Safetybus P : FALSE
    • Supporting Protocol For Sercos : FALSE
    • Supporting Protocol For Suconet : FALSE
    • Supporting Protocol For TCP IP : TRUE
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 3 461 kg CO2 eq.
    • Variant : with disconnect switch
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : FALSE
    • EMC Limit Value Complied : TRUE
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : FALSE
    • With Safety Function Safe Direction SDI : FALSE
    • With Safety Function Safe Operating Stop Sos : FALSE
    • With Safety Function Safe Position Sp : FALSE
    • With Safety Function Safe Speed Monitor Ssm : FALSE
    • With Safety Function Safe Stop 1 SS1 : FALSE
    • With Safety Function Safe Torque Off Sto : TRUE
    • With Safety Function Safely Limited Position Slp : FALSE
    • With Safety Function Safely Limited Speed Sls : FALSE
    • With Sft Fct Safe Stop 2 Ss2 : FALSE
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 3461.06196
    • Application In Industrial Area Permitted : TRUE
    • Supporting Protocol For Interbus Safety : FALSE
    • Pep Code : ENVPEP1508009EN
    • Pep Verification Date : 11/1/2021
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 23300
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 5,5 kW electric motors for fluid management and industrial applications in IP55 conditions, at 380V to 480V rated 3-phase voltage supply.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 5523.355
    • Energy Model Manufacturing A1 A3 : Energy model used: Indonesia
    • Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0246752
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.024526424
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1.184E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 5.06E-08
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000148558
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000005
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 35934.91085
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2272.466608
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 41.56634007
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 9.768903779
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 33593.02283
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 18.08616432
    • Exported Energy Mj By Energy Vector Total Life Cycle : 4.590632337
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.394584886
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 4.196047452
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 147.4448896
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 129.931283
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.002776242
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 17.5108304
    • Materials For Energy Recovery Kg Total Life Cycle : 0.409347031
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 1.86E-08
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.409347012
    • Materials For Recycling Kg Total Life Cycle : 18.2195558
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.605202109
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 5.194692004
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 11.41966169
    • Net Use Of Fresh Water M3 Total Life Cycle : 9.750760303
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.240346221
    • Net Use Of Fresh Water M3 Distribution A4 : 0.000264787
    • Net Use Of Fresh Water M3 Installation A5 : 0.001970877
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 8.50569148
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.002486937
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 12265.97225
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 61.40307557
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.105116169
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 5.904748243
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 12198.49051
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.068799495
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00080559
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000013248
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.000000006
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1.64E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000792177
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.428E-07
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 9.982659956
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.03891489
    • Radioactive Waste Disposed Of Kg Distribution A4 : 7.48702E-05
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.000205308
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 9.943346063
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000118824
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 64920.15115
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3507.387083
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 41.77722759
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10.34372583
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 61337.62771
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 23.01540422
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 69883.02454
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3741.103691
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 41.83353251
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 10.51980668
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 66066.52753
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 23.03997364
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4961.319093
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 233.7166081
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.055750062
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.176254877
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4727.346541
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.023939829
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 220.9097979
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 220.9097979
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 64699.23111
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3286.467047
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 41.77722759
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10.34372583
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 61337.62771
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 23.01540422
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 197.5074253
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 197.5074253
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4763.818834
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 36.21634886
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.055750062
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.176254877
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4727.346541
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.023939829
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 2.814529438
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 2.814529438
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 158060.7949
    • Air Pollution M3 Manufacturing A1 A3 : 17734.00264
    • Air Pollution M3 Distribution A4 : 125.8568541
    • Air Pollution M3 Installation A5 : 181.3735062
    • Air Pollution M3 Operational Energy Use B6 : 139859.226
    • Air Pollution M3 End Of Life C1 C4 : 160.3359402
    • Water Pollution M3 Total Life Cycle : 161663.7521
    • Water Pollution M3 Manufacturing A1 A3 : 23584.59578
    • Water Pollution M3 Distribution A4 : 486.5461775
    • Water Pollution M3 Installation A5 : 108.7299209
    • Water Pollution M3 Operational Energy Use B6 : 136838.9432
    • Water Pollution M3 End Of Life C1 C4 : 644.9370387
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 25.1854187
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 1.216352695
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 1.23234552
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.501676845
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.013509086
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.004610861
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 24.66104002
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.00458189
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 3461.06196
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 186.5945079
    • Global Warming Kg Equivalent Co2 Distribution A4 : 2.958670035
    • Global Warming Kg Equivalent Co2 Installation A5 : 7.385567663
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 3261.099948
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 3.023267135
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.047599156
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000964002
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.001718426
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 1.16559902
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000472091
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.30122109
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.003111512
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.002186883
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.924436634
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.001389401
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Maximum Output Voltage : 480.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=467215910&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 3461.06196
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1508009EN
    • Environmental Disclosure : ENVPEP1508009EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1508009EN
    • Pep Verification Date : 11/1/2021
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : China
