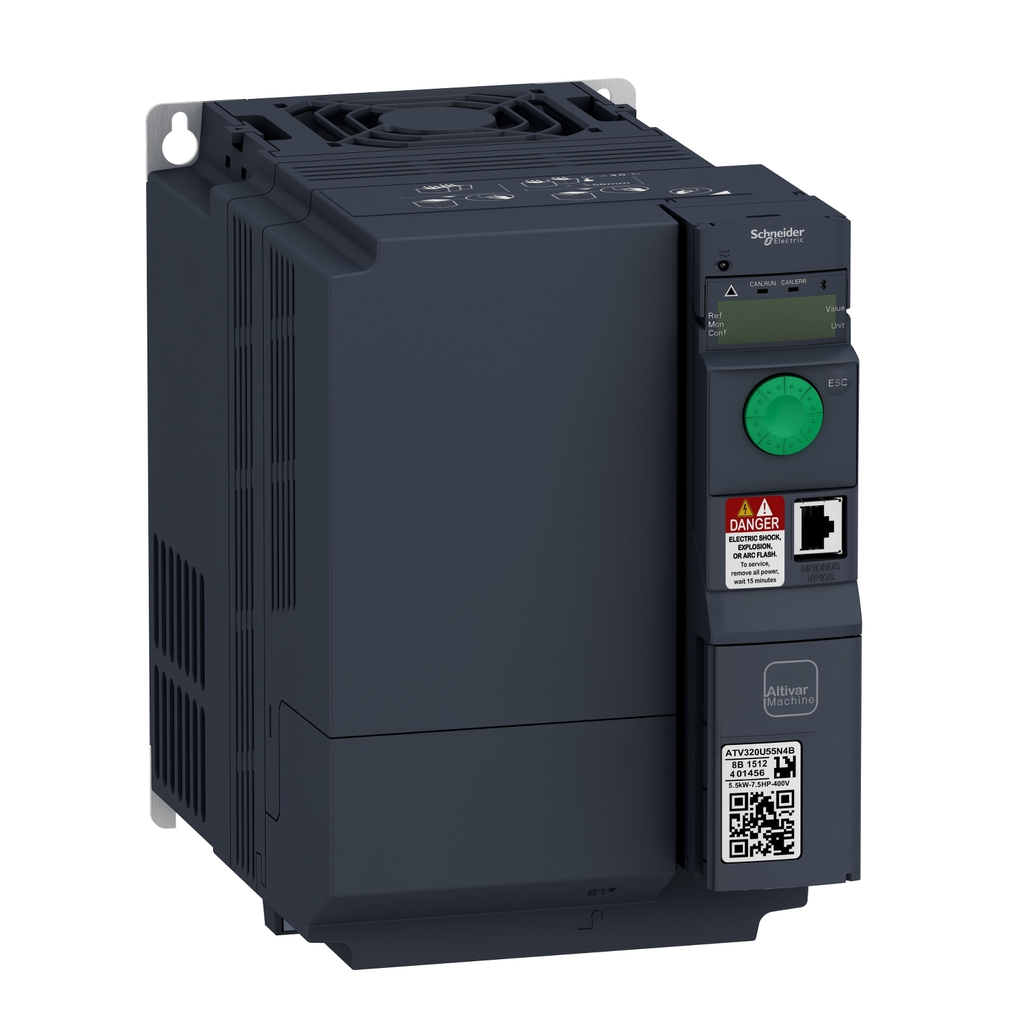

variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book

variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book

SQDATV320U55N4B ATV320U55N4B 3606480931291
1558.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, book-3
  • IsSustainable: Yes
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication : VW3A3608, VW3A3616, VW3A3627, VW3A3618, VW3A3628, VW3A3601
  • Complementary Attributes
    • Maximum Switching Current : relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
    • Brake Chopper Integrated : true
    • Maximum Associated Fuse Rating : 40 A
    • Maximum Horse Power Rating : 7.5 hp
    • Maximum Input Current Per Phase : 20.7 A
    • Maximum Output Voltage : 500 V
    • Minimum Switching Current : relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
    • US Rated Supply Voltage : 380...500 V - 15...10 %
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 3.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 3.5 mm at 2...13 Hz
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Asynchronous Motor Control Profile : voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
    • Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    • Line Current : 20.7 A 380 V heavy duty), 14.5 A 500 V heavy duty)
    • Linearity Error : AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
    • Motor Slip Compensation : automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
    • Option Card : communication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
    • Protection Type : input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
    • Refresh Time : logic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
    • Sampling Duration : 2 ms AI1, AI2, AI3) - analog input, 2 ms AQ1) - analog output
    • Speed Accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
    • Switching Frequency : 2...16 kHz adjustable, 4...16 kHz with derating factor
    • Environmental Class During Storage : class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
    • Environmental Class During Transport : class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
    • Carbon Footprint Of The Distribution Phase A4 : 0.7225286792, 0.7 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2.5340957727, 3 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.1 kg CO2 eq., 0.1171176986
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 53 kg CO2 eq., 53.1611997895
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 883 kg CO2 eq., 4882.7797133581
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Altivar 320 Variable Speed Drive:Motor Power kW: 5.5 kW for Heavy DutyMotor Power HP: 7.5 HP for Heavy DutyRated Supply Voltage: 380...500 V Network Number of Phases: 3 PhaseDegree of Protection: IP20
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1708004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : true
    • Apparent Power : 12.6 kVA 500 V heavy duty)
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 14.3 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 780 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Encoder Protocol : RS 422
    • Format Of The Drive : book
    • Housing Material : plastic
    • Maximum Associated Fuse Rating : 40 A
    • Maximum Input Current Per Phase : 20.7 A
    • Method Of Access : slave CANopen
    • Motor Power KW : 5.5 kW heavy duty
    • Nominal Switching Frequency : 4 kHz
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 5.511 kg
    • Power Dissipation In W : fan 195.0 W 380 V 4 kHz
    • Power Loss Per Device Current Dependent : 195.0 W
    • Power Loss Static Current Independent : 195.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : complex machines
    • Range Of Product : Altivar Machine ATV320
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : true
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : true
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : No
    • Synchronous Motor Control Profile : vector control without sensor
    • Total Lifecycle Carbon Footprint : 4 939 kg CO2 eq.
    • Transient Overtorque : 170-200 % of nominal motor torque
    • Variant : standard version
    • Volume Of Cooling Air : 60 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : true
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : true
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : true
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Relationship Type : Compatible relationship
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1708004EN
    • Pep Verification Date : 2018-01-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point during 10 years and a 80% use rate, in accordance with the relevant standards.
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
    • Product Manager : ZIHAO LIU
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with derating factor
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Class During Operation : class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 4939.3146552982
    • Ambient Air Transport Temperature : -25-70 °C
    • Circularity Profile : ENVEOLI1708004EN
    • Environmental Disclosure : ENVPEP1708004EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1708004EN
    • Pep Verification Date : 2018-01-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Machine ATV320
  • Output Attributes
    • Analogue Output Type : software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    • Discrete Output Type : open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
    • Relay Output Type : configurable relay logic R1A 1 NO 100000 cycles, configurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
    • Maximum Output Voltage : 500 V
  • Input Attributes
    • Analogue Input Type : AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
    • Discrete Input Type : STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    • Number Of Input Phases : 3
