variable speed drive, Altivar 212, 4kW, 5hp, 480V, 3 phases, with EMC, IP21

ATV212 DRIVE 5HP 460V 6.4A

SQDATV212HU40N4 ATV212HU40N4 3606480322488
1197.40 / EA
http://schema.org/OutOfStock

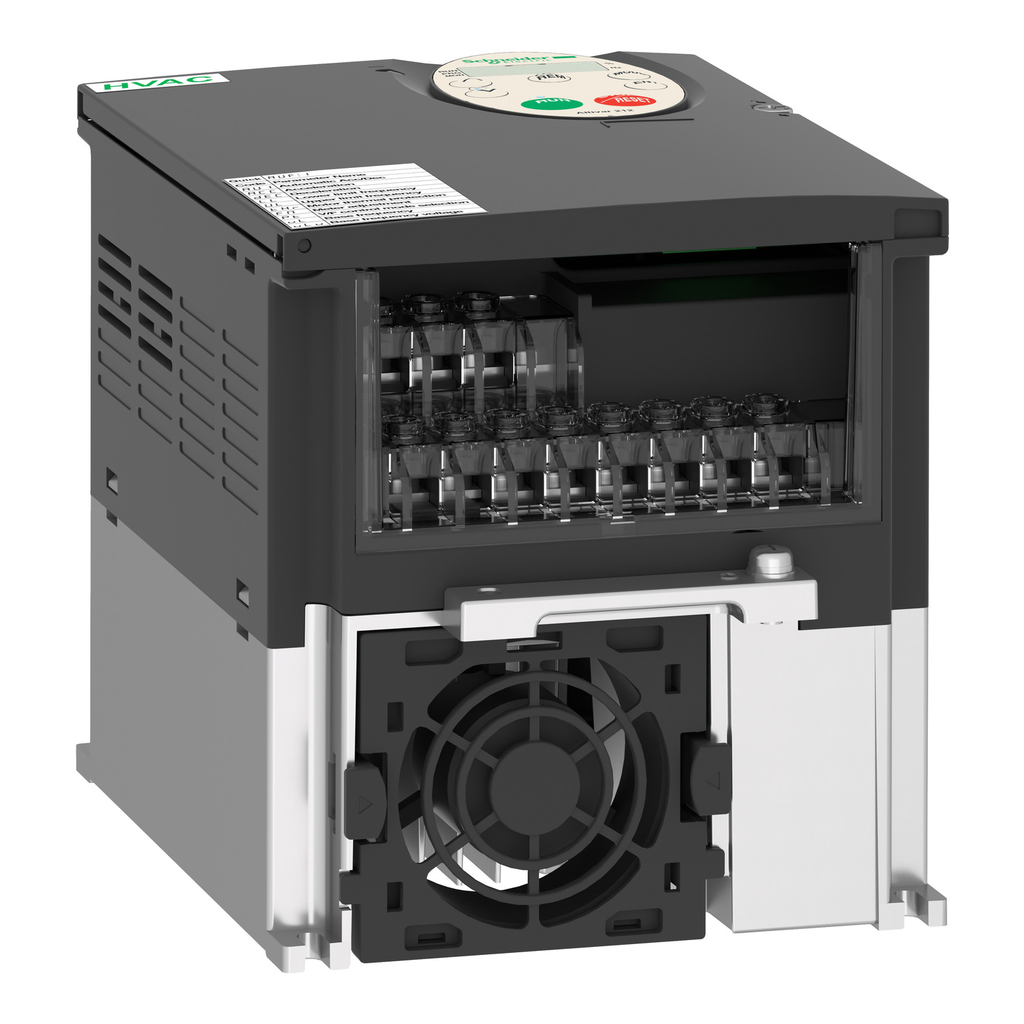

Mayer-DDS-variable speed drive, Altivar 212, 4kW, 5hp, 480V, 3 phases, with EMC, IP21-2
  • Country of Origin: Indonesia
  • IsSustainable: Yes
  • Warranty Length: 18 mth
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
QTY
  • Product Description
  • Features
  • Specifications
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
  • Insulation Resistance
    • >= 1 mOhm 500 V DC for 1 minute
  • Power Range
    • 4-6 kW 380-440 V 3 phase
    • 4-6 kW 480-500 V 3 phase
  • US Rated Supply Voltage
    • 380...480 V - 15...10 %
  • Analogue Input Type
    • VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
    • VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
    • VIB configurable PTC probe 0...6 probes 1500 Ohm
    • VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
  • IP Degree Of Protection
    • IP20 on upper part without blanking plate on cover IEC 61800-5-1
    • IP20 on upper part without blanking plate on cover IEC 60529
    • IP21 IEC 61800-5-1
    • IP21 IEC 60529
    • IP41 on upper part IEC 61800-5-1
    • IP41 on upper part IEC 60529
  • Continuous Output Current
    • 9.1 A 380 V
    • 9.1 A 460 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits
    • FM switch-configurable current 0...20 mA 970 Ohm 10 bits
  • Response Time
    • FM 2 ms +/- 0.5 ms analog
    • FLA, FLC 7 ms +/- 0.5 ms discrete
    • FLB, FLC 7 ms +/- 0.5 ms discrete
    • RY, RC 7 ms +/- 0.5 ms discrete
  • Discrete Input Type
    • F programmable 24 V DC level 1 PLC 4700 Ohm
    • R programmable 24 V DC level 1 PLC 4700 Ohm
    • RES programmable 24 V DC level 1 PLC 4700 Ohm
  • Electrical Connection
    • VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14
    • L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
  • Line Current
    • 6.4 A 480 V
    • 8.1 A 380 V
  • Motor Slip Compensation
    • automatic whatever the load
    • adjustable
    • not available in voltage/frequency ratio motor control
  • Maximum Switching Current
    • 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R)
    • 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R)
    • 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
    • 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
  • Frequency Resolution
    • display unit 0.1 Hz
    • analog input 0.024/50 Hz
  • Protection Type
    • overheating protection drive
    • thermal power stage drive
    • short-circuit between motor phases drive
    • input phase breaks drive
    • overcurrent between output phases and earth drive
    • overvoltages on the DC bus drive
    • break on the control circuit drive
    • against exceeding limit speed drive
    • line supply overvoltage and undervoltage drive
    • line supply undervoltage drive
    • against input phase loss drive
    • thermal protection motor
    • motor phase break motor
    • with PTC probes motor
  • Supply
    • internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection
    • internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
  • Accessories
    • VW3A21212
    • TCSMCNAM3M002P
  • Sampling Duration
    • 2 ms +/- 0.5 ms F discrete
    • 2 ms +/- 0.5 ms R discrete
    • 2 ms +/- 0.5 ms RES discrete
    • 3.5 ms +/- 0.5 ms VIA analog
    • 22 ms +/- 0.5 ms VIB analog
  • Linearity Error
    • VIA +/- 0.15 % of maximum value input
    • VIB +/- 0.15 % of maximum value input
    • FM +/- 0.2 % output
  • Vibration Resistance
    • 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8
  • Option Card
    • communication card LonWorks
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Environmental Characteristic
    • classes 3C1 conforming to IEC 60721-3-3
    • classes 3S2 conforming to IEC 60721-3-3
  • Type Of Cable
    • without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR
    • without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC
    • with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    • electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    • 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
    • conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    • voltage dips and interruptions immunity test conforming to IEC 61000-4-11
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 6.9 kVA 380 V
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
    • 5-95 % without dripping water IEC 60068-2-3
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Dielectric Strength
    • 3535 V DC between earth and power terminals
    • 5092 V DC between control and power terminals
  • Tightening Torque
    • 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T)
    • 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
  • Minimum Switching Current
    • 3 mA 24 V DC configurable relay logic
  • Operating Altitude
    • 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
    • <= 3280.84 ft (1000 m) without derating
  • Noise Level
    • 51 dB 86/188/EEC
  • Discrete Input Logic
    • positive logic (source) F, R, RES), <= 5 V, >= 11 V
    • negative logic (sink) F, R, RES), >= 16 V, <= 10 V
  • Asynchronous Motor Control Profile
    • voltage/frequency ratio - Energy Saving, quadratic U/f
    • voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
    • voltage/frequency ratio, 2 points
    • voltage/frequency ratio, 5 points
    • flux vector control without sensor, standard
  • Transient Overtorque
    • 120-120 % of nominal motor torque +/- 10 % 60 s
  • Discrete Output Type
    • configurable relay logic FLA, FLC) NO - 100000 cycles
    • configurable relay logic FLB, FLC) NC - 100000 cycles
    • configurable relay logic RY, RC) NO - 100000 cycles
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 10 A 60 s
  • Discrete And Process Manufacturing
    • building - HVAC compressor for scroll
    • building - HVAC fan
    • building - HVAC pump
  • Local Signalling
    • 1 LED (red) for DC bus energized
  • Ambient Air Temperature For Operation
    • -10-40 °C (without derating)
    • 40-50 °C (with derating factor)
  • Speed Accuracy
    • +/- 10 % of nominal slip 0.2 Tn to Tn
  • Switching Frequency
    • 6...16 kHz adjustable
    • 12...16 kHz with derating factor
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000878_3D-CAD
  • Complementary Attributes
    • Maximum Horse Power Rating : 5 hp
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-15
    • HTML Description : Altivar 212 VFD5 HPContinuous Output Current: 9.1 ampsAC Line Input Line Voltage: 380/480 VAC Three Phase Input/OutputEnclosure Rating: IP20The Alitvar 212 drive includes: 3 logic inputs2 analog inputs1 analog output2 relay outputs (with 1 NO and 1 NO/NC contacts)Integrated 4 digit, 7-segment LED display with a 7 button keypadRJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocolsLonWorks is available in an option card
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI110204EN
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1916
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Assembly Style : with heat sink
    • Braking To Standstill : by DC injection
    • Device Short Name : ATV212
    • Functionality : mid
    • Isolation : electrical between power and control
    • Motor Power KW : 4 kW
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 12 kHz
    • Package Weight Lbs : 3.094 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : pumps and fans in HVAC
    • Range Of Product : Altivar 212
    • Returnability : Yes
    • Specific Application : HVAC
    • Speed Range : 1-10
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP110204EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar 212
  • Output Attributes
    • Speed Drive Output Frequency : 0.5-200 Hz
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61737754&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI110204EN
    • Environmental Disclosure : ENVPEP110204EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP110204EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
