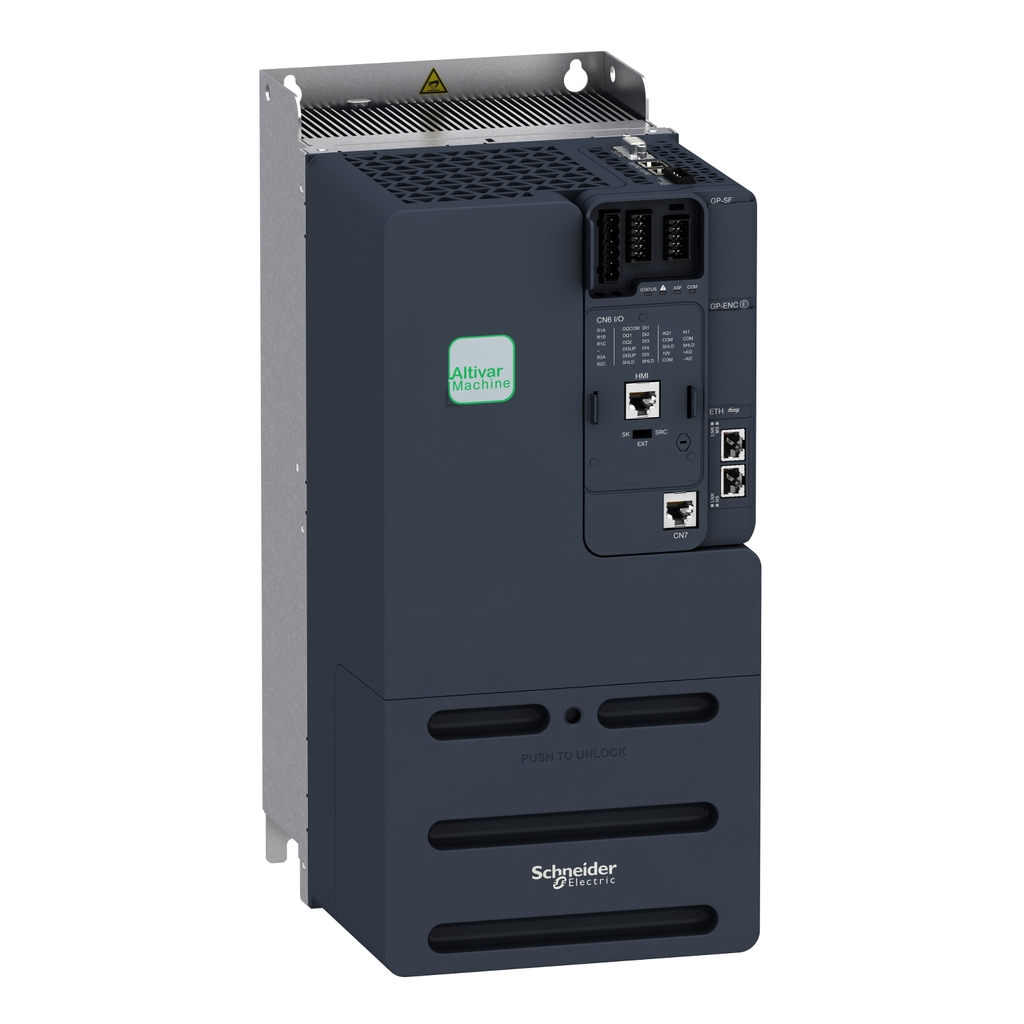

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 15kW / 20hp and a rated voltage fr

• Insulation Resistance
• > 1 MOhm 500 V DC for 1 minute to earth
• Environmental Class During Storage
• class 1C3 according to EN 60721-3-1
• class 1S2 according to EN 60721-3-1
• Power Range
• 15-25 kW 380-440 V 3 phase
• 15-25 kW 480-500 V 3 phase
• Connector Type
• 1 x RJ45, Modbus serial on front face
• 1 x RJ45, Modbus serial HMI on front face
• 1 x RJ45, Modbus s
• Input Output Type
• programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA
• programmable as logic input/output DQ1 0-1 kHz, <= 30
• Exchange Mode
• half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
• Analogue Input Type
• AI1 software-configurable current 0...20 mA 250 Ohm 12 bits
• AI1 software-c
• Continuous Output Current
• 39 A 4 kHz normal duty
• 32 A 4 kHz heavy duty
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Analogue Output Type
• software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
• softwa
• Carbon Footprint Of The Installation Phase A5
• 2 kg CO2 eq.
• 1.7459545307459394
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 21.150130620685065
• 21 kg CO2 eq.
• Standards
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3
• IEC 61508
• IEC 13849-1
• UL 618000-5-1
• UL 508C
• Ue Rated Operational Voltage
• 380...480 V 18.5 kW normal duty
• 380...480 V 15 kW heavy duty
• 380...480 V 25 hp normal duty
• 380...480 V
• Encoder Protocol
• 1 Vpp
• EnDat 2.2
• resolver
• RS 422
• SSI 24V
• SSI 5V
• TTL/HTL
• Discrete Input Type
• PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V)
• PTI programmable as pulse inpu
• Electrical Connection
• screw terminal 0.2...2.5 mm² control
• screw terminal 6...25 mm² line side
• screw terminal 6...25 mm² DC bus
• sc
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 157 kg CO2 eq.
• 156.73283435496148
• Method Of Access
• slave Modbus RTU
• slave Modbus TCP
• Line Current
• 37.4 A 380 V normal duty)
• 30.2 A 480 V normal duty)
• 44.9 A 380 V heavy duty)
• 35.7 A 480 V heavy duty
• Motor Slip Compensation
• automatic whatever the load
• not available in permanent magnet motor law
• can be suppressed
• adjustable
• Maximum Switching Current
• relay output R1C resistive, cos phi = 1 3 A 250 V AC
• relay output R1C resistive, cos phi = 1 3
• Relay Output Type
• relay outputs R1A
• relay outputs R1C 100000 cycles
• relay outputs R2A
• relay outputs R2C 100000 cycles
• relay outputs R2C 1000
• Input Compatibility
• DI1...DI5 discrete input level 1 PLC IEC 61131-2
• PTI pulse input level 1 PLC IEC 65A-68
• PTI pulse input lev
• Protection Type
• thermal protection motor
• safe torque off motor
• motor phase loss motor
• thermal protection drive
• safe torque off drive
• overheating drive
• ov
• Sampling Duration
• 2 ms +/- 0.5 ms DI1...DI5) - discrete input
• 5 ms +/- 1 ms PTI) - pulse input
• 5 ms +/- 1 m
• Linearity Error
• AI1, AI2 +/- 0.15 % of maximum value analog input
• AQ1 +/- 0.2 % analog output
• Environmental Class During Operation
• class 3C3 according to IEC 60721-3-3
• class 3S3 according to IEC 60721-3-3
• Maximum Horse Power Rating
• 25 hp normal duty
• 20 hp heavy duty
• Communication Port Protocol
• Modbus serial
• Modbus TCP
• EtherNet/IP
• Vibration Resistance
• 1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M3
• 1 gn 9-200 Hz)IEC 60721-3-3 class 3M3
• 1 gn 9-2
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• System Integrator
• Refresh Time
• relay output R1, R2)5 ms +/- 0.5 ms)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 10 362 kg CO2 eq.
• 10361.991148202076
• Electromagnetic Compatibility
• electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
• radiated radio-frequency electro
• Supply Frequency
• 50...60 Hz +/- 5 %
• Apparent Power
• 28.3 kVA 480 V normal duty)
• 29.7 kVA 480 V heavy duty)
• Persona Type Ids
• EU
• OM
• OM8
• SI
• Environmental Class During Transport
• class 2C3 according to EN 60721-3-2
• class 2S1 according to EN 60721-3-2
• Us Rated Supply Voltage
• 380...480 V - 15...10 %
• Carbon Footprint Of The Distribution Phase A4
• 2.2148556819738907
• 2 kg CO2 eq.
• Synchronous Motor Control Profile
• reluctance motor
• permanent magnet motor
• Minimum Switching Current
• relay output R1B 5 mA 24 V DC
• relay output R2C 5 mA 24 V DC
• relay output R
• Operating Altitude
• <= 9842.52 ft (3000 m) with current derating above 1000m
• Motor Power Kw
• 18.5 kW normal duty
• 15 kW heavy duty
• Safety Function
• STO (safe torque off) SIL 3
• Discrete Input Logic
• positive logic (source) DI1...DI5), < 5 V, > 11 V
• negative logic (sink) DI1...DI5), > 16 V, < 10 V
• negat
• Asynchronous Motor Control Profile
• optimized torque mode
• variable torque standard
• constant torque standard
• Discrete Output Type
• programmable output DQ1, DQ2 30 V DC 100 mA
• Shock Resistance
• 15 gn 11 ms, class 3M3 IEC 60721-3-3
• Maximum Transient Current
• 42.9 A 60 s normal duty)
• 48 A 60 s heavy duty)
• 52.7 A 2 s normal duty)
• 58 A 2 s heavy duty)
• Discrete And Process Manufacturing
• hoisting tower crane
• hoisting other application
• material handling grouping conveyor
• material handling palletizer - high performance
• material handling palletizer - high pe
• Power Dissipation In W
• natural convection 18 W 380 V 4 kHz heavy duty)
• forced convect
• Transmission Rate
• 4.8 kbit/s
• 9.6 kbit/s
• 19.2 kbit/s
• 38.4 kbit/s
• Ambient Air Temperature For Operation
• -15-50 °C without derating vertical position)
• 50-60 °C with derating factor vertical position)
• 50-60 °C with dera
• Product Certifications
• UL
• CSA
• TÜV
• EAC
• CTick
• Switching Frequency
• 2...16 kHz adjustable
• 7...16 kHz with derating factor

• Communications & Management Attributes
• Communication : VW3A3800
• Complementary Attributes
• Brake Chopper Integrated : True
• Maximum Associated Fuse Rating : 80.0 A
• Maximum Input Current Per Phase : 44.9 A
• Maximum Output Frequency : 0.599 kHz
• Maximum Output Voltage : 480 V
• Maximum Acceleration Under Shock Impact During Operation : 70 m/s² at 22 ms
• Maximum Acceleration Under Shock Load During Storage : 70 m/s² at 22 ms
• Maximum Acceleration Under Shock Load During Transport : 70 m/s² at 22 ms
• Maximum Acceleration Under Vibrational Stress During Operation : 5 m/s² at 9...200 Hz
• Maximum Acceleration Under Vibratory Load During Storage : 5 m/s² at 9...200 Hz
• Maximum Acceleration Under Vibratory Load During Transport : 5 m/s² at 9...200 Hz
• Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...9 Hz
• Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...9 Hz
• Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...9 Hz
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• Etim 10 : EC001857
• Baan Price : 10797.7
• Baan Currency : USD
• Device Type : Variable speed drive - VSD Compacts
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 10 year(s)
• Manufacturing Carbon Footprint : 156.732834354961
• Distribution Carbon Footprint : 2.21485568197389
• Installation Carbon Footprint : 1.74595453074594
• Use Carbon Footprint : 10361.9911482021
• End Of Life Carbon Footprint : 21.1501306206851
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1609006EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1923
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : YES_SSI2
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• 1 Phase Low Current Possible : False
• 4 Quadrant Operation Possible : True
• Application In Domestic And Commercial Area Permitted : False
• Assembly Style : with heat sink
• Base Load Current At High Overload : 32.0 A
• Base Load Current At Low Overload : 39.0 A
• Braking To Standstill : by DC injection
• Capacity Of Dc Link : 1500.0 µF
• Computer Port : True
• Data Format : 8 bits, configurable odd, even or no parity
• Design Of Frequency Changer : U converter
• Emc Filter : class C3 EMC filter integrated
• Housing Material : plastic
• Isolation : between power and control terminals
• Marking : CE
• Maximum Associated Fuse Rating : 80.0 A
• Maximum Input Current Per Phase : 44.9 A
• Motor Starter Type : variable speed drive
• Mounting Mode : cabinet mount
• Network Frequency : 50-60 Hz
• Noise Level : 55.6 dB
• Nominal Switching Frequency : 4 kHz
• Number Of Addresses : 1-247
• Number Of Hw Interfaces Industrial Ethernet : 2
• Number Of Hw Interfaces Other : 0
• Number Of Hw Interfaces Parallel : 0
• Number Of Hw Interfaces Profinet : 0
• Number Of Hw Interfaces Serial Rs232 : 0
• Number Of Hw Interfaces Serial Rs422 : 0
• Number Of Hw Interfaces Serial Rs485 : 1
• Number Of Hw Interfaces Serial Tty : 0
• Number Of Hw Interfaces Usb : 0
• Number Of Output Phases : 3
• Operating Element Present : True
• Operating Position : vertical +/- 10 degree
• Optical Interface Present : False
• Overvoltage Category : class III
• Package Weight Lbs : 11.366 kg
• Phase : 3 phase
• Power Loss Per Device Current Dependent : 498.0 W
• Power Loss Static Current Independent : 19.0 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : variable speed drive
• Product Specific Application : machine
• Prospective Line Isc : 22 kA
• Range Of Product : Altivar Machine ATV340
• Regulation Loop : adjustable PID regulator
• Relative Symmetric Mains Voltage Tolerance : 10 %
• Relative Symmetric Network Frequency Tolerance : 5 %
• Returnability : Yes
• Specific Application : machine
• Supporting Protocol For As Interface Safety At Work : False
• Supporting Protocol For Asi : False
• Supporting Protocol For Bacnet : False
• Supporting Protocol For Can : False
• Supporting Protocol For Data Highway : False
• Supporting Protocol For Devicenet : False
• Supporting Protocol For Devicenet Safety : False
• Supporting Protocol For Ethernet Ip : True
• Supporting Protocol For Foundation Fieldbus : False
• Supporting Protocol For Interbus : False
• Supporting Protocol For Knx : False
• Supporting Protocol For Lon : False
• Supporting Protocol For Modbus : True
• Supporting Protocol For Other Bus Systems : False
• Supporting Protocol For Profibus : False
• Supporting Protocol For Profinet Cba : False
• Supporting Protocol For Profinet Io : False
• Supporting Protocol For Profisafe : False
• Supporting Protocol For Safetybus P : False
• Supporting Protocol For Sercos : False
• Supporting Protocol For Suconet : False
• Supporting Protocol For Tcp Ip : True
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 10 544 kg CO2 eq.
• Transmission Frame : RTU
• Type Of Cooling : forced convection
• Type Of Polarization : no impedance
• Variant : standard version
• Volume Of Cooling Air : 128.0 m3/h
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• With Safety Function Safe Programmable Logic : False
• Emc Limit Value Complied : True
• Number Of Inputs Bidirectional Not Potential Free : 0
• Number Of Inputs Potential Free : 0
• Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
• With Safety Function Safe Brake Management Sbc Sbt : True
• With Safety Function Safe Direction Sdi : False
• With Safety Function Safe Operating Stop Sos : False
• With Safety Function Safe Position Sp : False
• With Safety Function Safe Speed Monitor Ssm : False
• With Safety Function Safe Stop 1 Ss1 : True
• With Safety Function Safe Torque Off Sto : True
• With Safety Function Safely Limited Position Slp : False
• With Safety Function Safely Limited Speed Sls : True
• With Sft Fct Safe Stop 2 Ss2 : False
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 10543.834923390443
• Relationshiptype : Compatible relationship
• Application In Industrial Area Permitted : True
• Supporting Protocol For Interbus Safety : False
• Input #2 Application In Industrial Area Permitted : True
• Input #2 Supporting Protocol For Interbus Safety : False
• General Attributes
• Phase : 3 phase
• Product Or Component Type : variable speed drive
• Range Of Product : Altivar Machine ATV340
• ETIM
• ETIM 8 : EC001857
• ETIM 9 : EC001857
• Output Attributes
• Analogue Output Number : 1
• Discrete Output Number : 2.0
• Maximum Output Frequency : 0.599 kHz
• Maximum Output Voltage : 480 V
• Nominal Output Current : 32.0 A
• Nominal Output Power : 15.0 kW
• Output Voltage : <= power supply voltage
• Relay Output Number : 2
• Speed Drive Output Frequency : 0.1-599 Hz
• Surge Protection And Filtering Attributes
• Emc Filter : class C3 EMC filter integrated
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 10543.8349233904
• Ambient Air Temperature For Storage : -40-70 °C
• Ambient Air Transport Temperature : -40-70 °C
• Circularity Profile : ENVEOLI1609006EN
• Environmental Disclosure : ENVPEP1609006EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP20
• Nema Degree Of Protection : not applicable
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
• Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
• Input Attributes
• Analogue Input Number : 2
• Discrete Input Number : 5
• Number Of Input Phases : 3
• Specifications
• Country of Origin : Indonesia
• Height : 15.16 in
• Width : 7.09 in
• Depth : 9.8 in
