SQUARE D

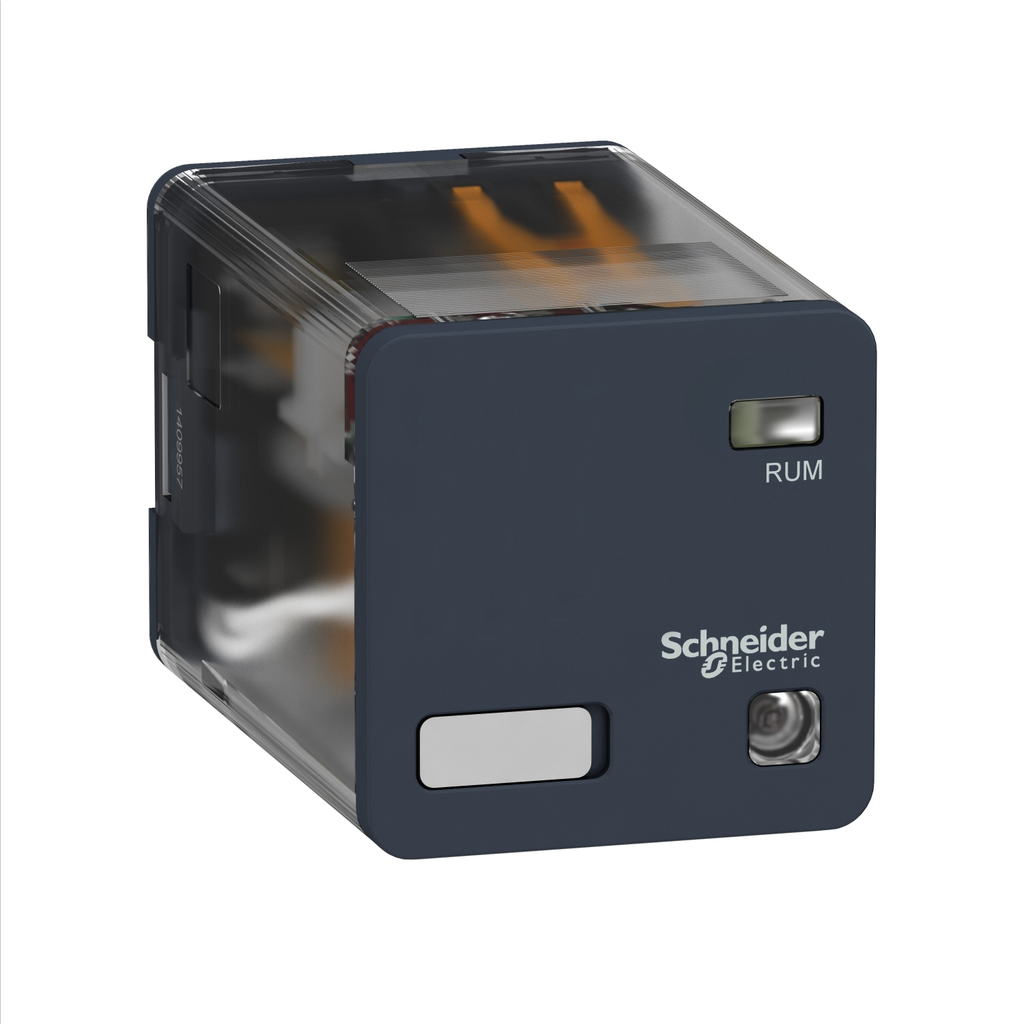

universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, flat terminals, 120V AC

RELAY 3CO QC PINS 10A @ 250V 1

SQDRUMF33F7 RUMF33F7 3606480627569
20.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, flat terminals, 120V AC-1
  • Dielectric Strength: 1500 V, 2000 V, 2500 V
"This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
"This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • IE Rated Operational Current : 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC (same polarity) conforming to CSA, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC
    • UI Rated Insulation Voltage : 250 V IEC, 300 V CSA, 300 V UL
    • Maximum Switching Capacity : 2500 VA/280 W
    • Maximum Switching Voltage : 250 V IEC
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Rated Operational Voltage Limits : 96...132 V AC
    • UC Control Circuit Voltage : 120 V AC 50/60 Hz
    • UIMP Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs)
  • Important Information Attributes
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
    • Drop Out Voltage Threshold : >= 0.15 Uc AC, >= 0.15 Uc AC
    • Load Current : 10 A 250 V AC, 10 A 28 V DC
    • Operating Rate : <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load
    • Shock Resistance : 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • IE Rated Operational Current : 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC (same polarity) conforming to CSA, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC
    • Carbon Footprint Of The Distribution Phase A4 : 0.056135161330637735, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.15711664498060146
    • Carbon Footprint Of The Installation Phase A5 : 0.014226497612678165, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.92713208014575
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 33 kg CO2 eq., 33.19510367847178
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-02
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Average Coil Consumption In VA : 3-3 60 Hz
    • Average Resistance : 1700 Ohm 20 °C +/- 15 %
    • Compatibility Code : RUM
    • Electrical Durability : 100000 cycles resistive
    • Operating Time : 20 ms at nominal voltage
    • Package Weight Lbs : 84.2 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Reset Time : 20 ms at nominal voltage
    • Returnability : Yes
    • Series Name : RUM series
    • Shape Of Pin : flat
    • Sustainable Packaging : Yes
    • Test Levels : level A group mounting
    • Total Lifecycle Carbon Footprint : 37 kg CO2 eq.
    • Utilisation Coefficient : 20 %
    • ITHE Conventional Enclosed Thermal Current : 10 A -40-55 °C
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2506025_V1
    • Pep Verification Date : 2025-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 37.34971406254145
    • Ambient Air Temperature For Operation : -40-55 °C
    • Environmental Disclosure : ENVPEP2506025_V1
    • IP Degree Of Protection : IP40
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506025_V1
    • Pep Verification Date : 2025-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Overview Attributes
    • Device Presentation : complete product
