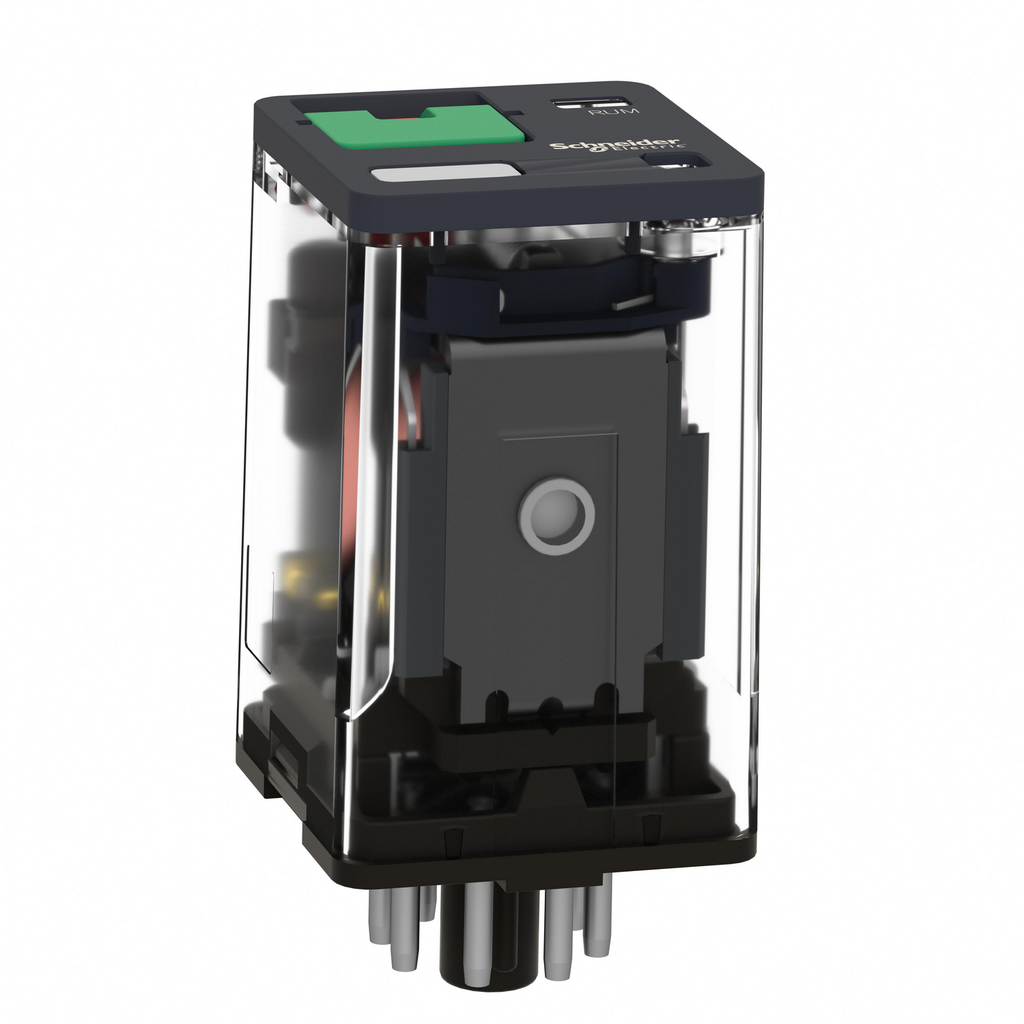

Harmony, Universal plug-in relay, 10 A, 3 CO, with LED, with lockable test button, 230 V AC

Harmony, Universal plug-in relay, 10 A, 3 CO, with LED, with lockable test button, 230 V AC

SQDRUMC32P7 RUMC32P7 785901260189
19.28 / EA
  • Certifications: CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.086 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Operating Temperature: -40-55 °C
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
This Zelio RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A. It provides a complete system solution for the most demanding applications. It also offers one-step lockable test button and “Power On” LED for readiness. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A. It provides a complete system solution for the most demanding applications. It also offers one-step lockable test button and “Power On” LED for readiness. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Complementary
    • [Ie] Rated Operational Current : 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V DC (NO) conforming to IEC
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Protection Category : RT I
    • Reset Time : 20 ms at nominal voltage
    • Shape Of Pin : cylindrical
    • Maximum Switching Voltage : 250 V IEC
    • Operating Position : any position
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs)
    • Operating Time : 20 ms at nominal voltage
    • Net Weight : 0.086 kg
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • Maximum Switching Capacity : 2500 VA/280 W
    • Rated Operational Voltage Limits : 184...253 V AC
    • Mechanical Durability : 5000000 cycles
    • Device Presentation : complete product
    • Electrical Durability : 100000 cycles resistive
    • Average Resistance : 6800 Ohm 20 °C +/- 15 %
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Average Coil Consumption In Va : 3-3 60 Hz
    • Operating Rate : <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
    • Safety Reliability Data : B10d = 100000
    • Contacts Material : AgNi
    • Load Current : 10 A 250 V AC || 10 A 28 V DC
    • Test Levels : level A
  • Range Of Product : Harmony Electromechanical Relays
  • Device Short Name : RUM
  • Product Or Component Type : plug-in relay
  • Status Led : with
  • Control Type : lockable test button
  • Series Name : Universal
  • [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
  • Utilisation Coefficient : 20 %
  • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
  • Contacts Type And Composition : 3 C/O
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406038EN
  • Environment
    • Ambient Air Temperature For Operation : -40-55 °C
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
    • Ambient Air Temperature For Storage : -40-85 °C
    • Shock Resistance : 10 gn 11 ms) in operation EN/IEC 60068-2-27 || 10 gn 11 ms) not operating EN/IEC 60068-2-27
    • Pollution Degree : 2
    • Product Certifications : EAC || CSA || UL
    • Ip Degree Of Protection : IP40
    • Standards : UL 508 || EN/IEC 61810-1 || CSA C22.2 No 14
