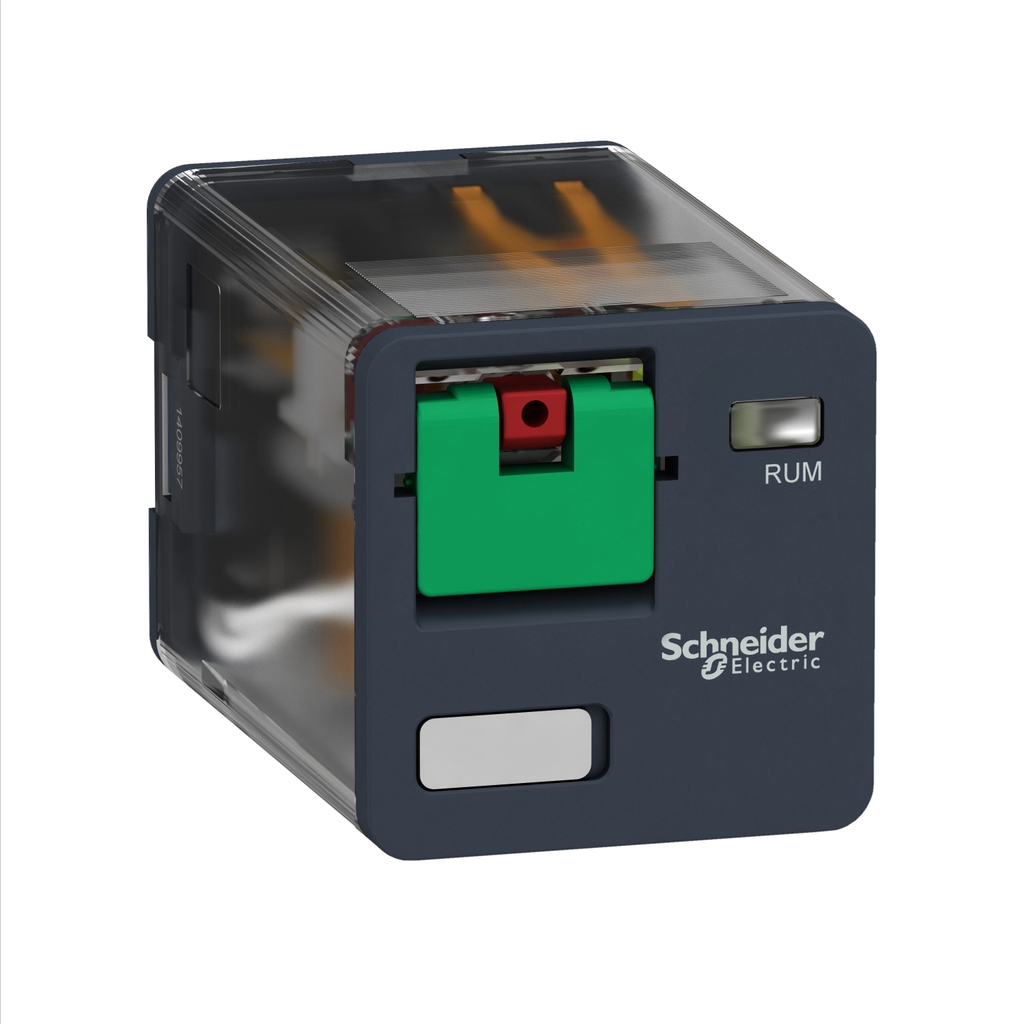

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

• IE Rated Operational Current
• 10 A at 277 V AC conforming to UL
• 10 A at 30 V DC conforming to UL
• 10 A at 277 V AC (same polarity) conforming to CSA
• 10 A at 30 V DC conforming to CSA
• 5 A at 250 V AC (NC) conforming to IEC
• 5 A at 28 V DC (NC) conforming to IEC
• 10 A at 250 V AC (NO) conforming to IEC
• 10 A at 28 V DC (NO) conforming to IEC
• Test Levels
• level A group mounting
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=RUMC31B7_NEW_2024
• https://download.schneider-electric.com/files?p_Doc_Ref=rumc31p7-3d
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0002928832
• 0 kg CO2 eq.
• Load Current
• 10 A 250 V AC
• 10 A 28 V DC
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0120687713
• Operating Time
• 20 ms at nominal voltage
• Maximum Switching Voltage
• 250 V IEC
• UC Control Circuit Voltage
• 230 V AC 50/60 Hz
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.9 kg CO2 eq.
• 0.8611894158
• UI Rated Insulation Voltage
• 250 V IEC
• 300 V CSA
• 300 V UL
• Accessories
• RUZC3M
• RXZL520
• Electrical Durability
• 100000 cycles resistive
• Reset Time
• 20 ms at nominal voltage
• Vibration Resistance
• 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
• 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Market Segmentation
• Commercial
• Industrial
• Rated Operational Voltage Limits
• 184...253 V AC
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Drop Out Voltage Threshold
• >= 0.15 Uc AC
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 6 kg CO2 eq.
• 6.0752836585
• ITHE Conventional Enclosed Thermal Current
• 10 A -40-55 °C
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Dielectric Strength
• 1500 V AC between contacts with micro disconnection
• 2500 V AC between coil and contact with reinforced
• 2000 V AC between poles with basic
• Average Coil Consumption In VA
• 3-3 60 Hz
• Carbon Footprint Of The Distribution Phase A4
• 0.0116120513
• 0 kg CO2 eq.
• Average Resistance
• 6800 Ohm 20 °C +/- 15 %
• Minimum Switching Capacity
• 170 mW 10 mA, 17 V
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operating Rate
• <= 18000 cycles/hour no-load
• <= 1200 cycles/hour under load
• Shock Resistance
• 10 gn 11 ms) in operation IEC 60068-2-27
• 10 gn 11 ms) not operating IEC 60068-2-27
• UIMP Rated Impulse Withstand Voltage
• 4 kV 1.2/50 µs)

• Complementary Attributes
• Maximum Switching Capacity : 2500 VA/280 W
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Manufacturing Carbon Footprint : 0.8611894158
• Distribution Carbon Footprint : 0.0116120513
• Installation Carbon Footprint : 0.0002928832
• Use Carbon Footprint : 6.0752836585
• End Of Life Carbon Footprint : 0.0120687713
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RUM
• Package Weight Lbs : 92.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Returnability : No
• Series Name : RUM series
• Shape Of Pin : cylindrical
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 6.9604467801
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2506025EN
• Pep Verification Date : 2018-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 90
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 12.4
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: China
• Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.007419575
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0074190464
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000005
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000005279
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000003
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 80.7811335491
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 11.540018339
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1631412104
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.003811737
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 68.9596651446
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.1144971182
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000171077
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000016082
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0000154995
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 19.7045256485
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 19.5715221378
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000144
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0031672374
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1298362588
• Materials For Energy Recovery Kg Total Life Cycle : 0.0013257139
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0013257139
• Materials For Recycling Kg Total Life Cycle : 0.0556601782
• Materials For Recycling Kg Manufacturing A1 A3 : 0.0087903851
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.0053842023
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0414855908
• Net Use Of Fresh Water M3 Total Life Cycle : 22.0401323192
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0115466204
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000010392
• Net Use Of Fresh Water M3 Installation A5 : 0.000000032
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 22.0285734053
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000112223
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 23.0675588216
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4151034844
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0004125688
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000397537
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 22.651618929
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0003840857
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000005358
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001395
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000003958
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000006
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0153848161
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0002560178
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000002938
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000078
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0151278885
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000006082
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 116.5388270114
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 10.3376211685
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1639664658
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0038189285
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 105.9080877266
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.125332722
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 133.337532332
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 11.7056588944
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1641904637
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0038249411
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 121.3383838384
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.1254741944
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.7976253593
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.368037726
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002188106
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000059404
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 15.4292237443
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001391381
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.7420696882
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.7420696882
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 115.7966865869
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.595480744
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1639664658
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0038189285
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 105.9080877266
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.125332722
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1069236311
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1069236311
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.6906958335
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.2611082002
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002188106
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000059404
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 15.4292237443
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001391381
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.0042505371
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0042505371
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 553.3372633721
• Air Pollution M3 Manufacturing A1 A3 : 290.4427560912
• Air Pollution M3 Distribution A4 : 0.493962536
• Air Pollution M3 Installation A5 : 0.0116804297
• Air Pollution M3 Operational Energy Use B6 : 261.4860938149
• Air Pollution M3 End Of Life C1 C4 : 0.9027705004
• Water Pollution M3 Total Life Cycle : 391.9369357694
• Water Pollution M3 Manufacturing A1 A3 : 138.242074928
• Water Pollution M3 Distribution A4 : 1.9095231857
• Water Pollution M3 Installation A5 : 0.0444164265
• Water Pollution M3 Operational Energy Use B6 : 250.6873529819
• Water Pollution M3 End Of Life C1 C4 : 1.0535682473
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0334128961
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0018297562
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0023281187
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0079908305
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000530191
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000012203
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.025342189
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000256371
• Global Warming Kg Equivalent Co2 Total Life Cycle : 6.9604467801
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.8611894158
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.0116120513
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0002928832
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 6.0752836585
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0120687713
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0004307244
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000037834
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000000912
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0013924692
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000002688
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.000778711
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000122114
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000002966
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.001530054
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000068457
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=356882712&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Carbon Footprint : 6.9604467801
• Ambient Air Temperature For Operation : -40-55 °C
• Environmental Disclosure : ENVPEP2506025EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP40
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506025EN
• Pep Verification Date : 2018-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : China
• Overview Attributes
• Device Presentation : complete product
